Cabin Air Filter / Purifier: Service and Repair

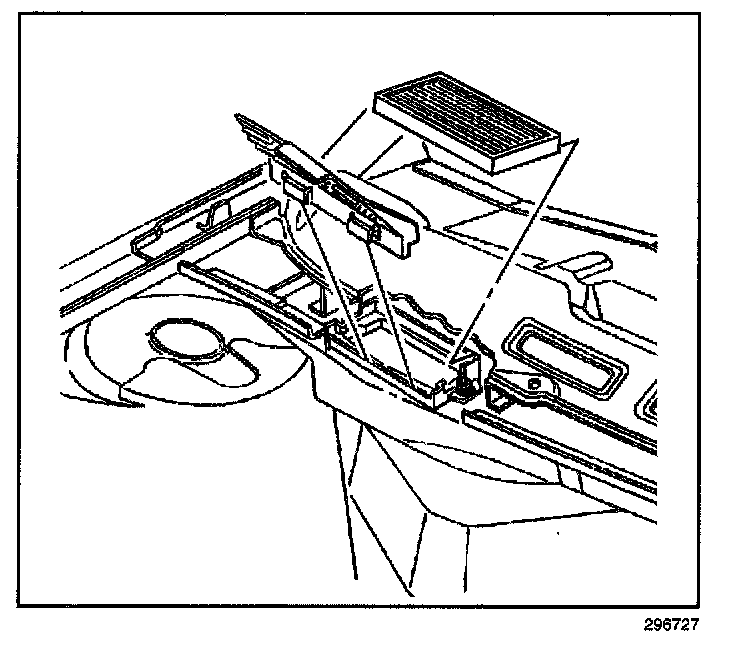

PASSENGER COMPARTMENT AIR FILTER REPLACEMENT

REMOVAL PROCEDURE




1. Position the windshield wipers in the UP position, by keying the ignition OFF when the wiper reach the desired position.
2. Position aside the rear hood side seal halfway to the center.
3. Remove the right air inlet grille panel.
4. Remove the passenger compartment air filter.

INSTALLATION PROCEDURE




1. Install the passenger compartment air filter.
2. Install the air inlet grille panel.
3. Install the rear hood side seal.
