Home >> Oldsmobile >> 2001 >> Intrigue V6-214 3.5L VIN H SFI >> Repair and Diagnosis >> Heating and Air Conditioning >> Blower Motor >> Diagrams

Blower Motor: Diagrams

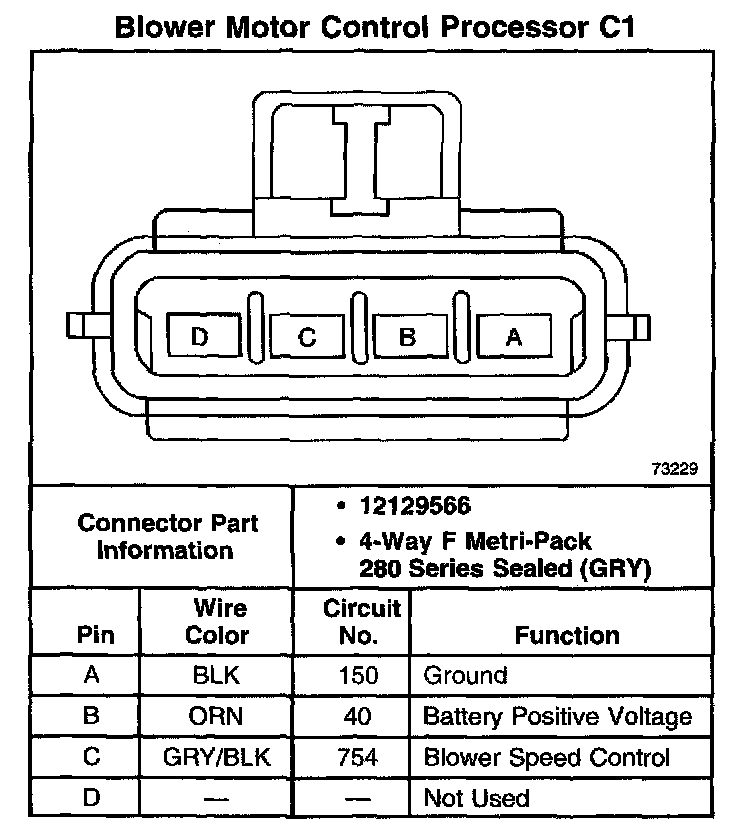

Blower Motor Control Processor C1:
