IP Air Outlet Vent Replacement

REMOVAL PROCEDURE

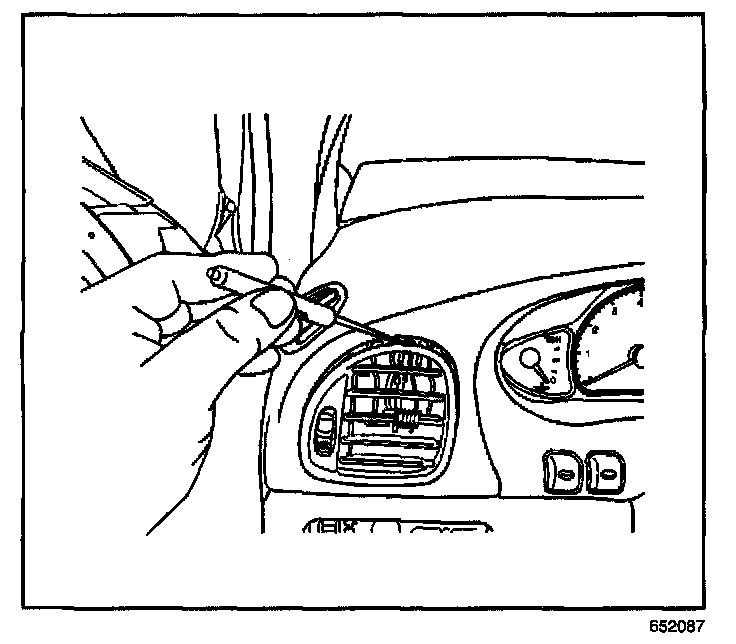

1. Release the instrument panel air outlet vent by inserting a small flat-bladed tool to the center upper position of the air outlet vent.

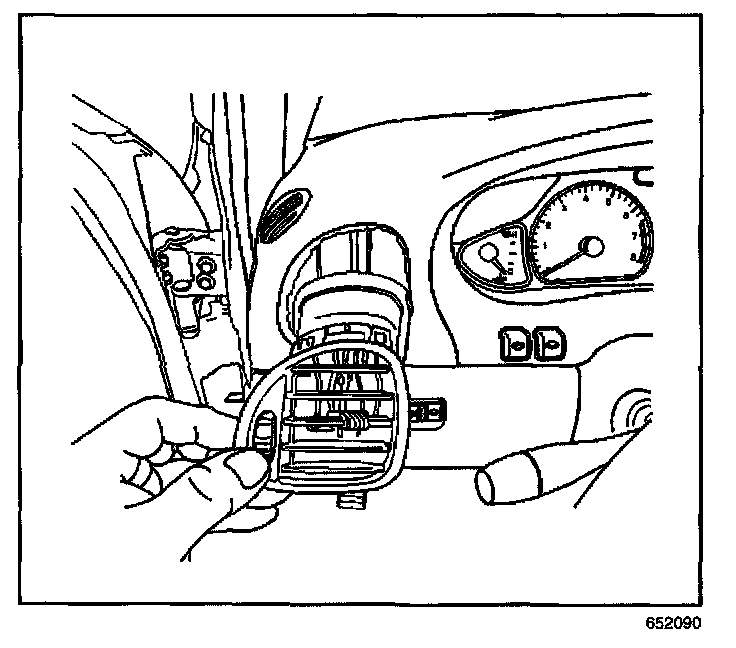

2. Remove the air outlet vent from the instrument panel by pulling air outlet vent out.

INSTALLATION PROCEDURE

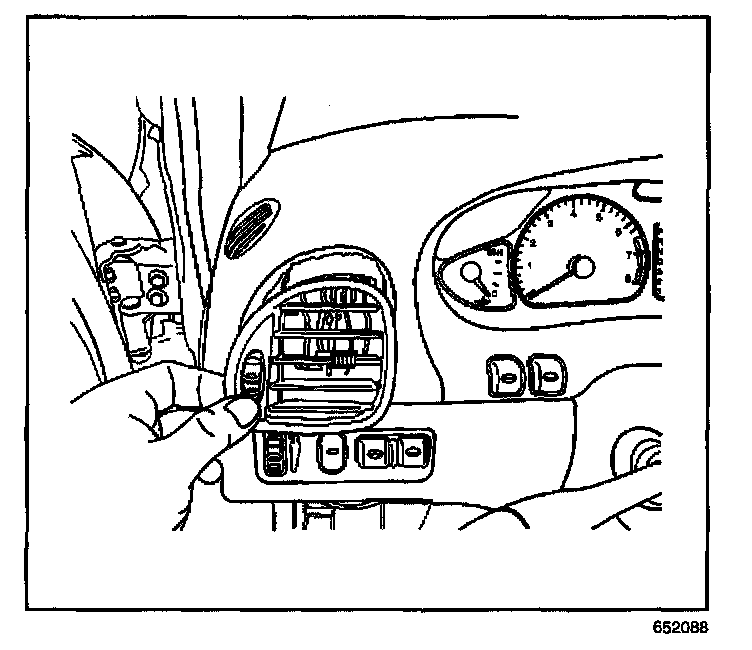

1. Position the instrument panel air outlet vent to the instrument panel.

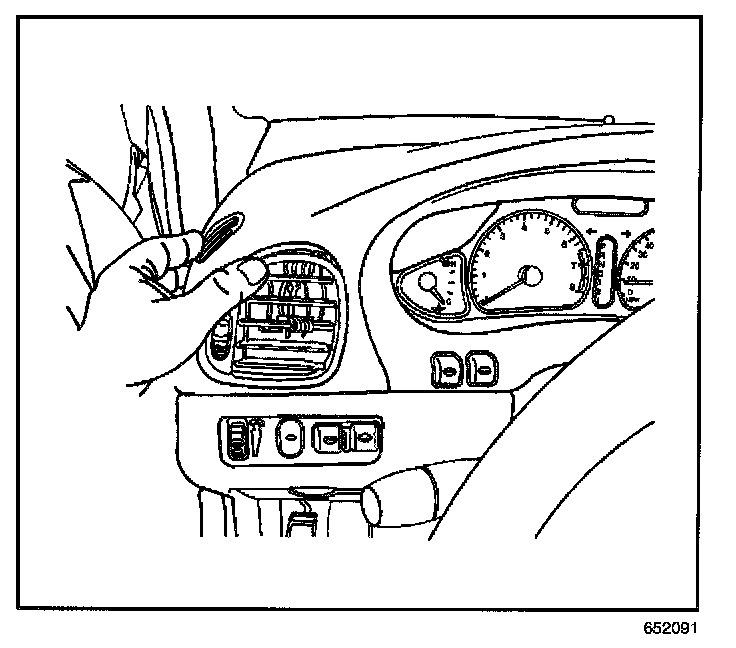

2. Install the air outlet vent to the instrument panel pressing in until the retainers are fully seated.
3. Inspect the air outlet vent for proper operation.
