Left

Secondary Camshaft Drive Chain Replacement - Left

^ Tools Required
- J 36660-A Electronic Torque Angle Meter
- J 42038 Camshaft Holding Fixture
- J 42042 Timing Chain/Sprocket Holding Fixture

Removal Procedure
1. Remove the thermostat housing for J 42042 access.
2. Remove the left camshaft cover.

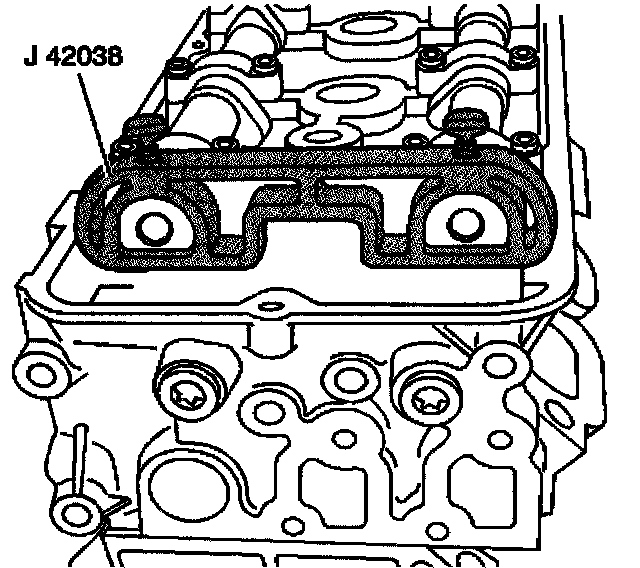

3. Install the J 42038 on to the left camshafts.
4. Compress the left secondary drive chain tensioner with your hand.

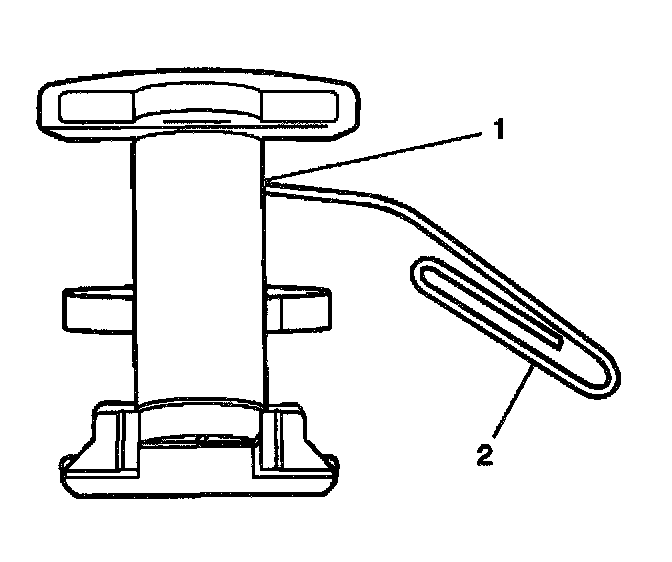

5. Lock the left secondary drive chain tensioner by inserting a piece of wire (2) into the access hole in the side of the tensioner.
6. Slowly release the pressure from the left secondary drive chain tensioner shoes. The tensioner should remain compressed.
7. Remove the camshaft sprocket bolts.

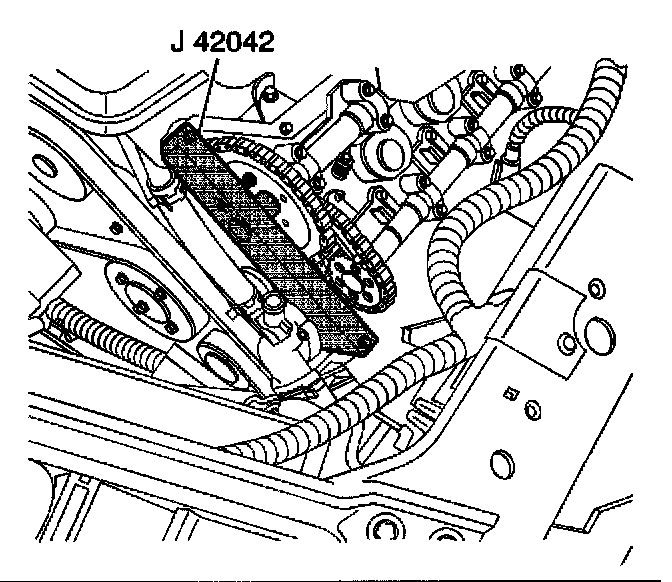

8. Install the J 42042 on to the left cylinder head.
9. Evenly slide the secondary drive chain and camshaft sprockets off the camshafts on to the J 42042.
10. Remove the secondary camshaft drive chain from the camshaft sprockets.
11. Inspect the secondary drive chain tensioner.

Installation Procedure

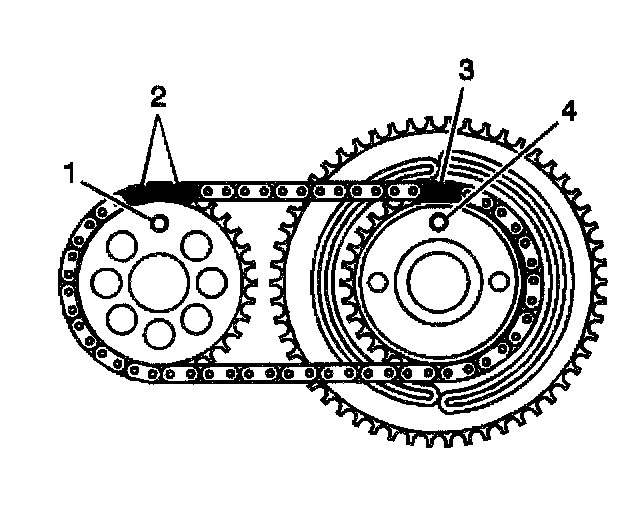

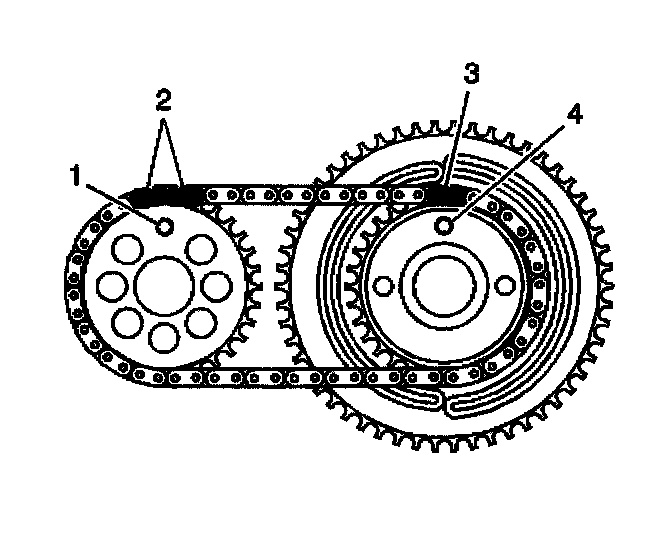

1. Install the secondary timing chain. Align the drive pins as shown.
^ Align the exhaust sprocket drive pin (1) between the 2 darkened links (2).
^ Align the intake sprocket drive pin (4) with the single darkened link (3).





2. Slide the intake and exhaust camshaft sprockets off of the J 42042 and onto their respective camshafts and align the drive pins (1, 4) in the camshafts. Make sure the chain is properly aligned on the drive chain tensioner.





3. Remove the J 42042 from the left cylinder head.

Notice: Refer to Fastener Notice in Service Precautions.

4. Install the intake camshaft sprocket bolt and exhaust camshaft sprocket bolt.
4.1. Tighten the camshaft sprocket bolts to 25 Nm (18 ft. lbs.).
4.2. Use the J 36660-A in order to tighten the camshaft sprocket bolts an additional 45 degrees.
5. Remove the locking wire from the left secondary drive chain tensioner allowing the tensioner shoes to expand and apply pressure to the drive chain.

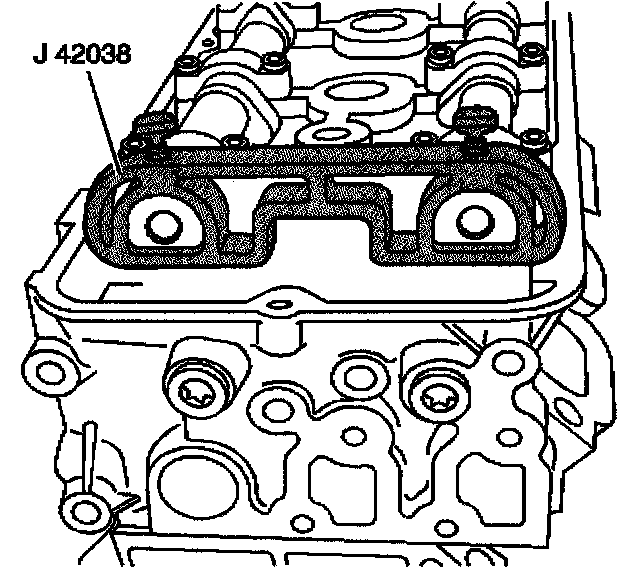

6. Remove the J 42038 from the left camshafts.
7. Install the left camshaft cover.
8. Install the thermostat housing.
