98. Primary Timing Chain Guide Installation - Lower

Primary Camshaft Drive Chain Guide Installation - Lower

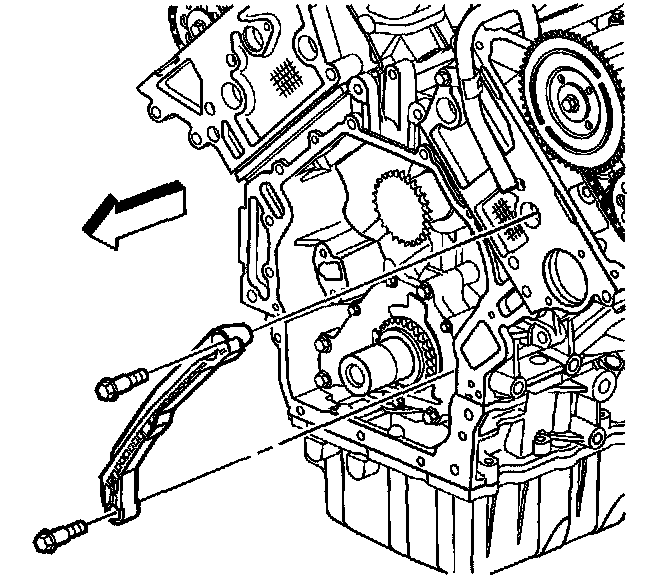

1. Install the lower primary camshaft drive chain guide.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the lower primary camshaft drive chain guide bolts.
Tighten the lower primary camshaft drive chain guide bolts to 30 Nm (22 ft. lbs.).
