97. Primary Timing Chain Guide Installation - Upper

Primary Camshaft Drive Chain Guide Installation - Upper

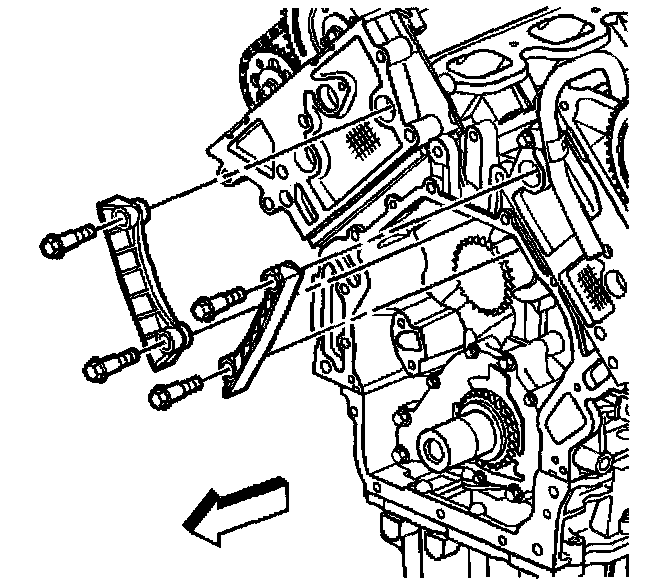

1. Install the upper primary camshaft drive chain guides.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the upper primary camshaft drive chain guides bolts.
Tighten the upper primary camshaft drive chain guides bolts to 30 Nm (22 ft. lbs.).
