80. Piston, Connecting Rod, and Bearing Installation
Piston, Connecting Rod, and Bearing Installation^ Tools Required
- J 29789 Piston Ring Compressor
- J 36660-A Torque Angle Meter
- J 43032 Crankshaft Rotation Socket
Piston and Connecting Rod Assembly Procedure
1. Liberally lubricate the cylinder walls, piston rings and piston skirts with engine oil.
Important: The connecting rod is nondirectional and may be assembled/reassembled to the piston in either direction.

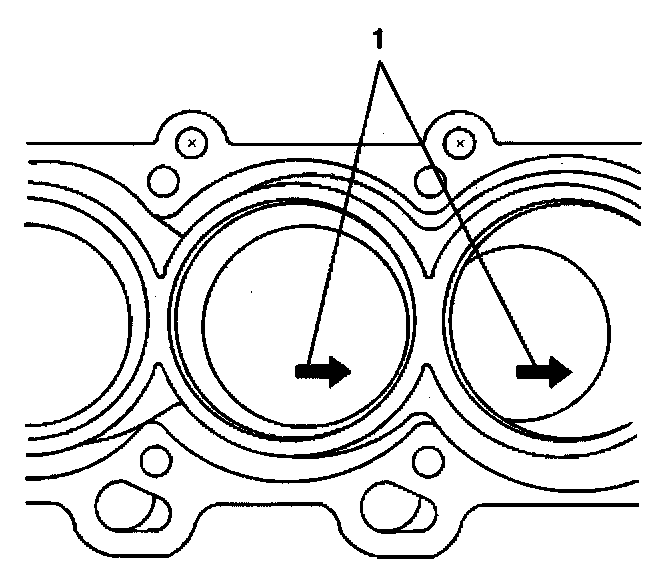

2. Select the correctly numbered piston/connecting rod assembly for the cylinder. An arrow showing proper piston orientation is located on the top of the piston.
Important: If the connecting rod bearings have been used in a running engine, you must replace them with NEW connecting rod bearings for reassembly.
3. Coat the crankshaft bearing journal and installed connecting rod bearings with GM crankshaft prelude GM P/N 1052367 or equivalent.
4. Compress the piston rings using the J 29789 or equivalent.
Important: Extreme care must be used when installing the piston and connecting rod in order to be sure the rod does not scrape or nick the cylinder bore or the crankshaft surfaces.

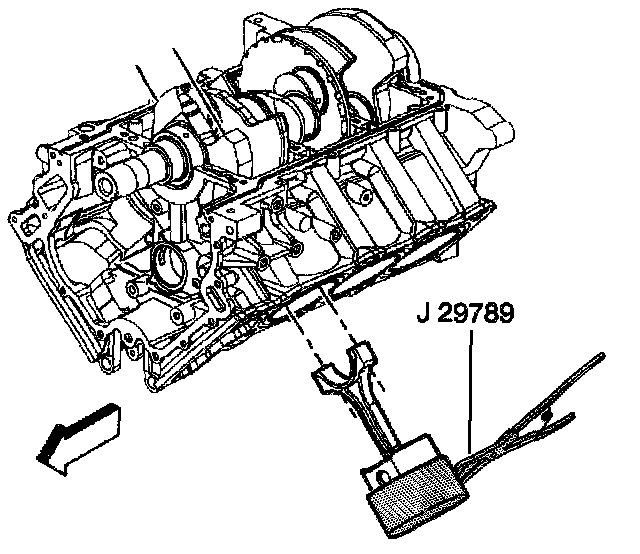

5. Using both hands, slowly guide the piston and connecting rod assembly into the cylinder from the top and bottom of the cylinder. DO NOT allow the connecting rod to contact the cylinder wall.
6. When the J 29789 contacts the deck surface, gently tap the piston into the cylinder using the handle end of a dead-blow hammer. Guide the connecting rod onto the crankshaft bearing journal while tapping the piston into the cylinder.
Connecting Rod Bearing Clearance Measurement Procedure
Important: Connecting rod bearings that have been run in an engine should NEVER be reused.
1. Before final assembly it is important to check the clearance of the new connecting rod bearings.

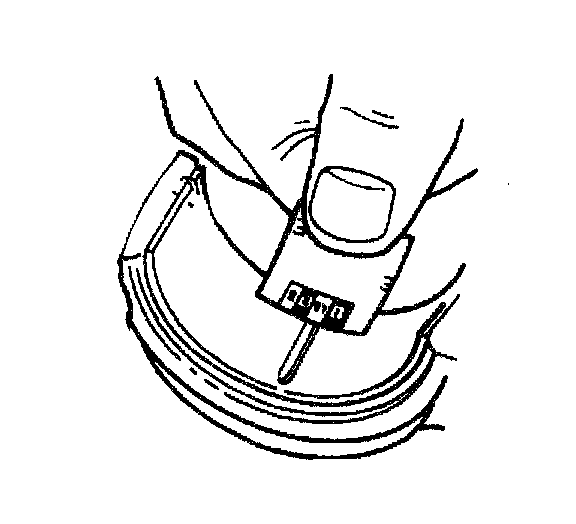

2. Place a length of fresh, room temperature plastic gauging material all the way across the connecting rod bearing journal.

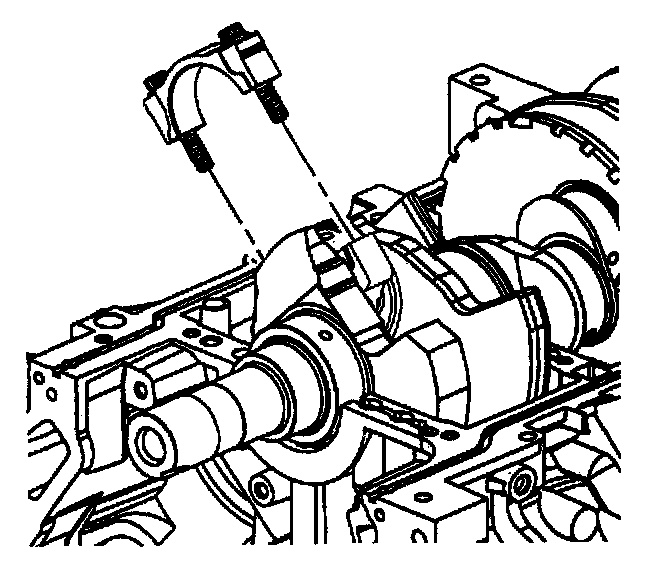

3. Install the connecting rod end cap on its original connecting rod making sure the bearing lock tangs are aligned on the same side of the rod.
Notice: Refer to Fastener Notice in Service Precautions.
Important: Reuse the old connecting rod bolts ONLY for measuring the connecting rod bearing clearance.
4. Lubricate connecting rod bolts with engine oil and install in the connecting rod.
Tighten the connecting rod bolts to 30 Nm (22 ft. lbs.).
5. Loosen the connecting rod bolts until the torque reading is zero.
6. Re-tighten the connecting rod bolts.
6.1. First Pass
Tighten the connecting rod bolts to 25 Nm (18 ft. lbs.).
6.2. Final Pass

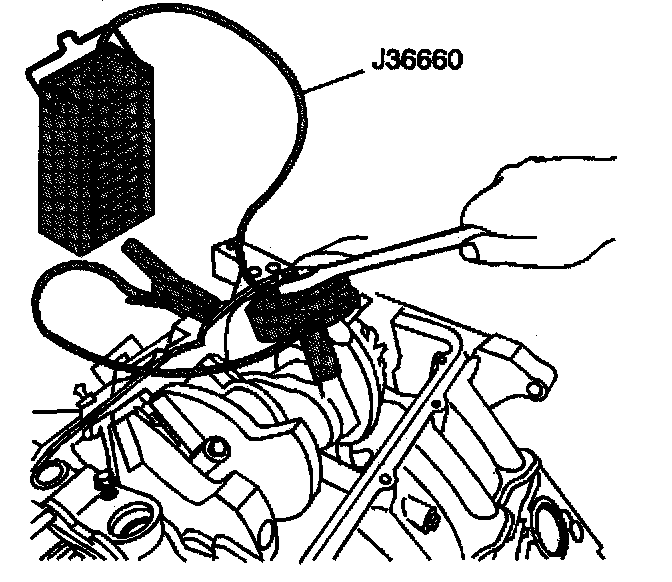

Tighten the connecting rod bolts an additional 110 degrees using the J 36660-A.
7. Allow the assembly to sit for at least two minutes.
8. Remove the connecting rod cap bolts.
9. Remove the connecting rod cap.
10. Determine the connecting rod bearing clearance by comparing the width of the flattened plastic gauging material at its widest point with the graduation on the gauging material container.
11. Compare your measurements with the engine mechanical specifications. If the new bearings do not provide the proper crankshaft to bearing clearance, re-measure the crankshaft journals for the correct specified size and check to make sure you have the correct new bearings. If the crankshaft journals are incorrectly sized, replace the crankshaft. No crankshaft machining is permitted and undersized bearings are not available.
12. Clean the plastic gauging material from the connecting rod bearing journals using a soft lint-free cloth.
Connecting Rod Final Assembly Procedure

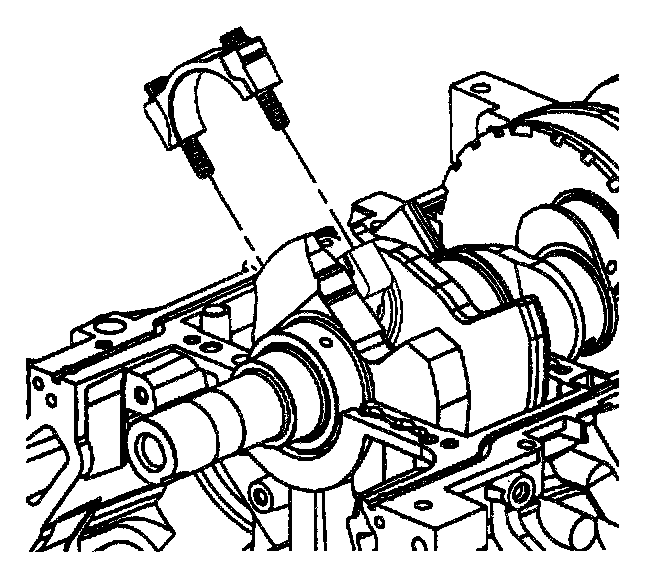

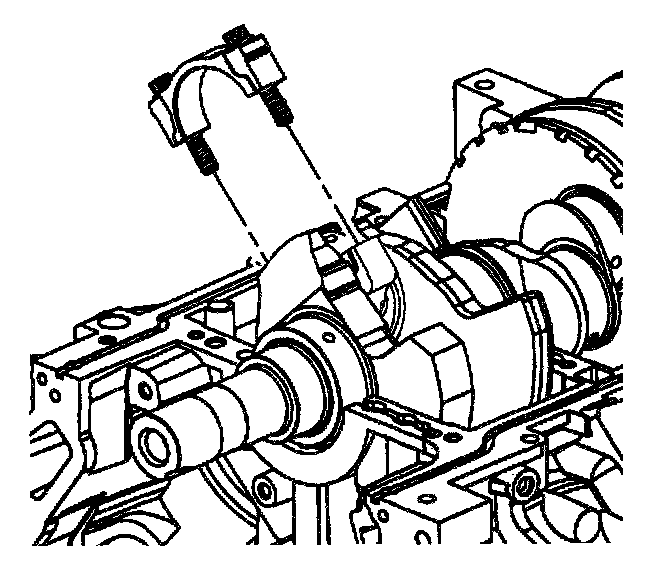

1. Install the connecting rod end cap on its original connecting rod making sure the bearing lock tangs are aligned on the same side of the rod.
Notice: Refer to Fastener Notice in Service Precautions.
Important: DO NOT reuse the old connecting rod bolts.
2. Lubricate the NEW connecting rod bolts with engine oil and install in the connecting rod.
Tighten the NEW connecting rod bolts to 30 Nm (22 ft. lbs.).
3. Loosen the connecting rod bolts until the torque reading is zero.
4. Re-tighten the connecting rod bolts.
4.1. First Pass
Tighten the connecting rod bolts to 25 Nm (18 ft. lbs.).
4.2. Final Pass

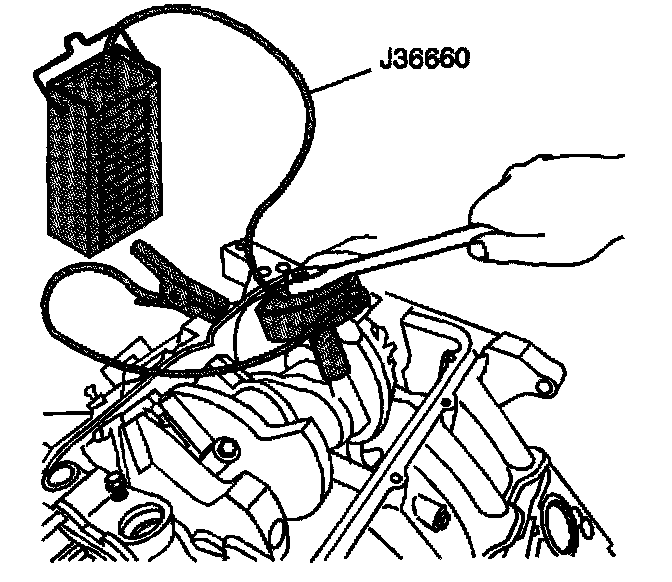

Tighten the connecting rod bolts an additional 110 degrees using the J 36660-A.
5. During and after installation, check to make sure each piston is positioned properly in the correct cylinder. The locating arrow on the top of each piston (9) must be pointing toward the front of the engine.
6. Repeat these procedures for the remaining piston/connecting rod assemblies using the J 43032 in order to rotate the crankshaft.
