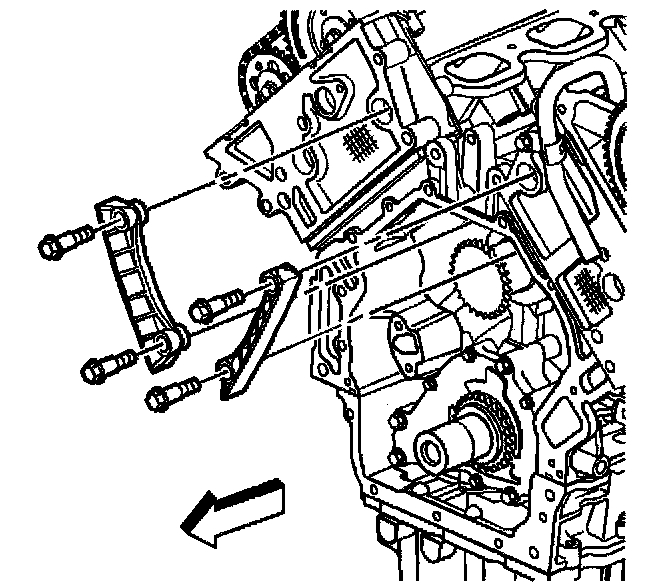

17. Primary Timing Chain Guide Removal - Upper

Primary Timing Chain Guide Removal - Upper





1. Remove the upper primary camshaft drive chain guide bolts.
2. Remove the upper primary camshaft drive chain guides.
