114. Oil Level Indicator and Tube Installation

Oil Level Indicator and Tube Installation
1. Install a NEW O-ring on the oil level indicator tube.

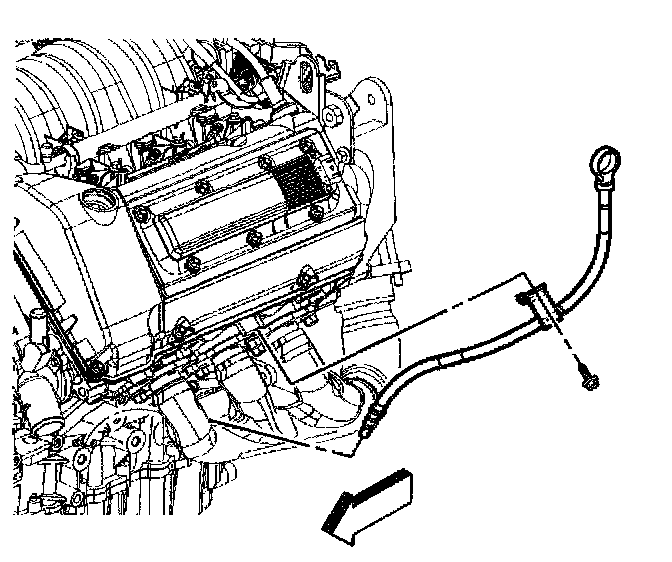

2. Install the oil level indicator and tube by sliding the tube down through the exhaust manifold and fitting the end into lower crankcase hole.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the oil level indicator tube bolt.
Tighten the oil level indicator tube bolt to 9 Nm (80 inch lbs.).
