Cylinder Head Replacement - Right
Cylinder Head Replacement - Right^ Tools Required
- J 36660-A Electronic Torque Angle Meter
Removal Procedure
1. Remove the intake manifold.
Important: Do NOT remove the right (rear) exhaust manifold. Disconnect from the right (rear) cylinder head and connection at the left (front) exhaust manifold and move aside.
2. Disconnect the right (rear) exhaust manifold from the cylinder head.
3. Adjust the water crossover pipe for access.
4. Remove the camshaft covers.
5. Install the J 42038 on the camshafts.
6. Remove the primary camshaft drive chain.
7. Remove the right (rear) cylinder head camshafts.
Important: Place the valve train parts in a rack in order to make sure that they are installed in the same location from which they were removed.
8. Remove the valve rocker arms.
Important: Place the valve train parts in a rack in order to make sure that they are installed in the same location from which they were removed.
9. Remove the lifters.
10. Remove the coolant temperature sensor from the right (rear) cylinder head.

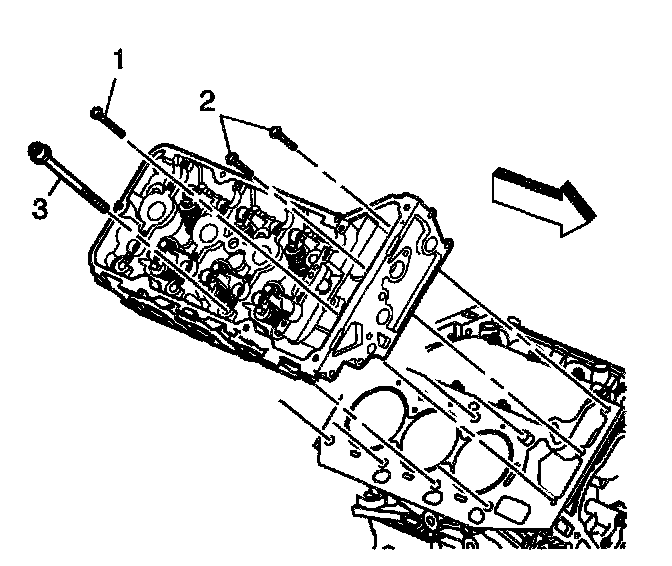

11. Remove the M6 external drive bolts (1, 3) from the front portion of the cylinder head. Note the location of the longer M6 bolt (1).
12. Remove and discard the M11 internal drive cylinder head bolts (2).
13. Remove the cylinder head. Ensure that no dowel guide pins are stuck in the cylinder head.

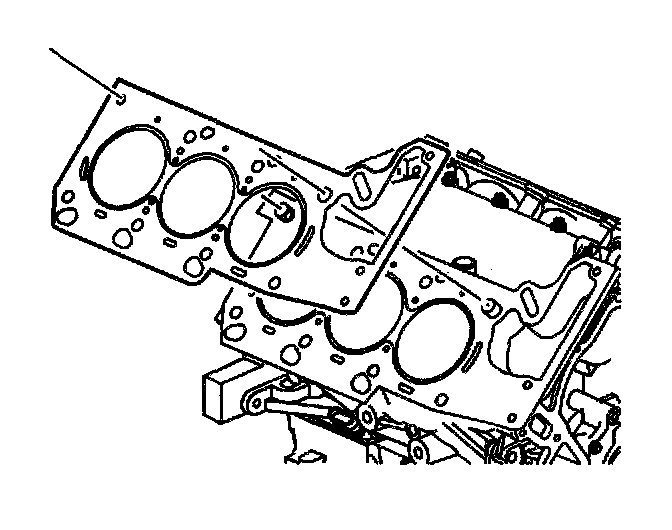

14. Remove the cylinder head gasket. Make sure all of the gasket material is removed.
15. Place the cylinder head on a flat, clean surface with the combustion chambers face-up in order to prevent damage to the deck face.
16. To disassemble the cylinder head refer to Cylinder Head Disassemble.
17. To clean and inspect the cylinder head refer to Cylinder Head Cleaning and Inspection.
18. To inspect the valve springs refer to Valve Spring Inspection and Measurement.
19. To grind the seats and valves refer to Valve and Seat Grinding.
20. To assemble the cylinder head refer to Cylinder Head Assemble.
Installation Procedure
1. Ensure all the cylinder head locating pins are securely mounted in the cylinder block deck face.

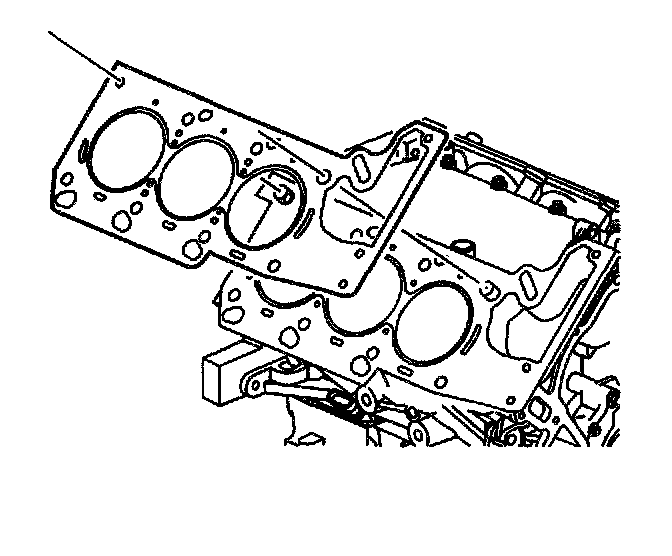

2. Install a new cylinder head gasket using the deck face locating pins for retention.
3. Align the cylinder head with the deck face locating pins.
4. Place the cylinder head in position on the deck face.
Important: DO NOT reuse the old M11 cylinder head bolts.

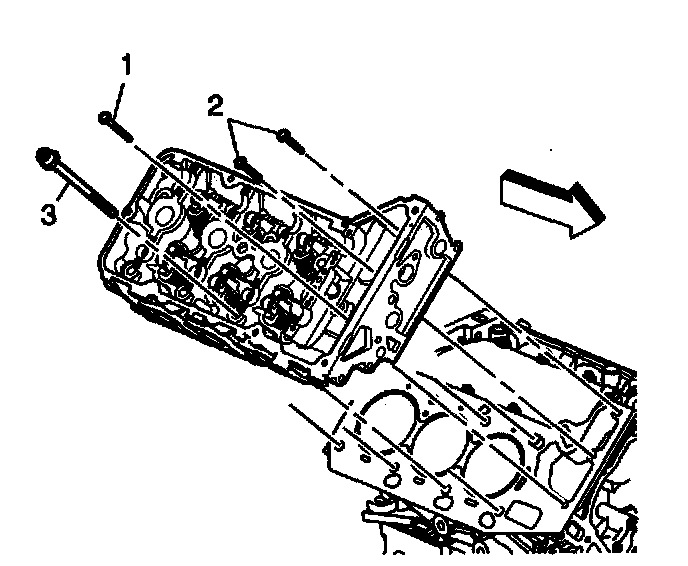

5. Install new M11 cylinder head bolts (2).
6. Install the M6 bolts at the front of the cylinder head. Install the longer M6 bolt (1) in the outboard location as shown. Install the two shorter M6 bolts (3) in the locations shown.
Notice: Refer to Fastener Notice in Service Precautions.
7. Tighten the M11 bolts.

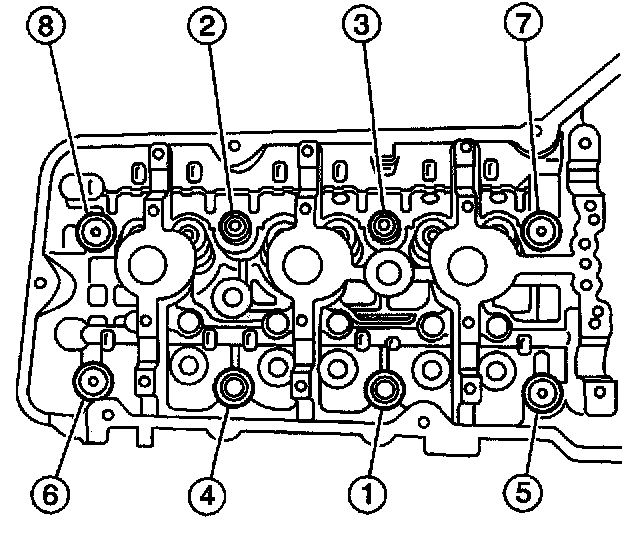

7.1. Tighten the M11 cylinder head bolts to 40 Nm + 100 degrees (30 ft. lbs. + 100 degrees) in the sequence shown using the J 36660-A.
7.2. Repeat the sequence turning each bolt an additional 100 degrees (200 degrees total) using the J 36660-A.

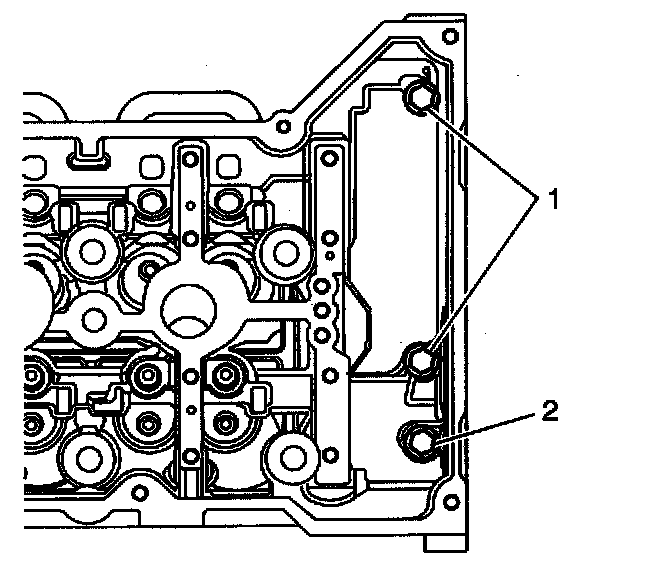

8. Tighten the long M6 bolt (2).
Tighten the long M6 cylinder head bolt to 12 Nm (106 inch lbs.).
9. Tighten the 2 shorter M6 bolts (1).
Tighten the 2 shorter M6 cylinder head bolts to 12 Nm (106 inch lbs.).
10. Install the coolant temperature sensor into the right (rear) cylinder head.
11. Install the lifters.
12. Install the rocker arms.
13. Install the right (rear) cylinder head camshafts.
14. Install the primary camshaft drive chain.
15. Remove the J 42038 from the camshafts.
16. Install the camshaft covers.
17. Install the water crossover pipe.
18. Connect the right (rear) exhaust manifold to the cylinder head.
19. Install the intake manifold.
