Power Windows - LF and RR Power, Grounds
Power Windows - LF and RR Power, Grounds

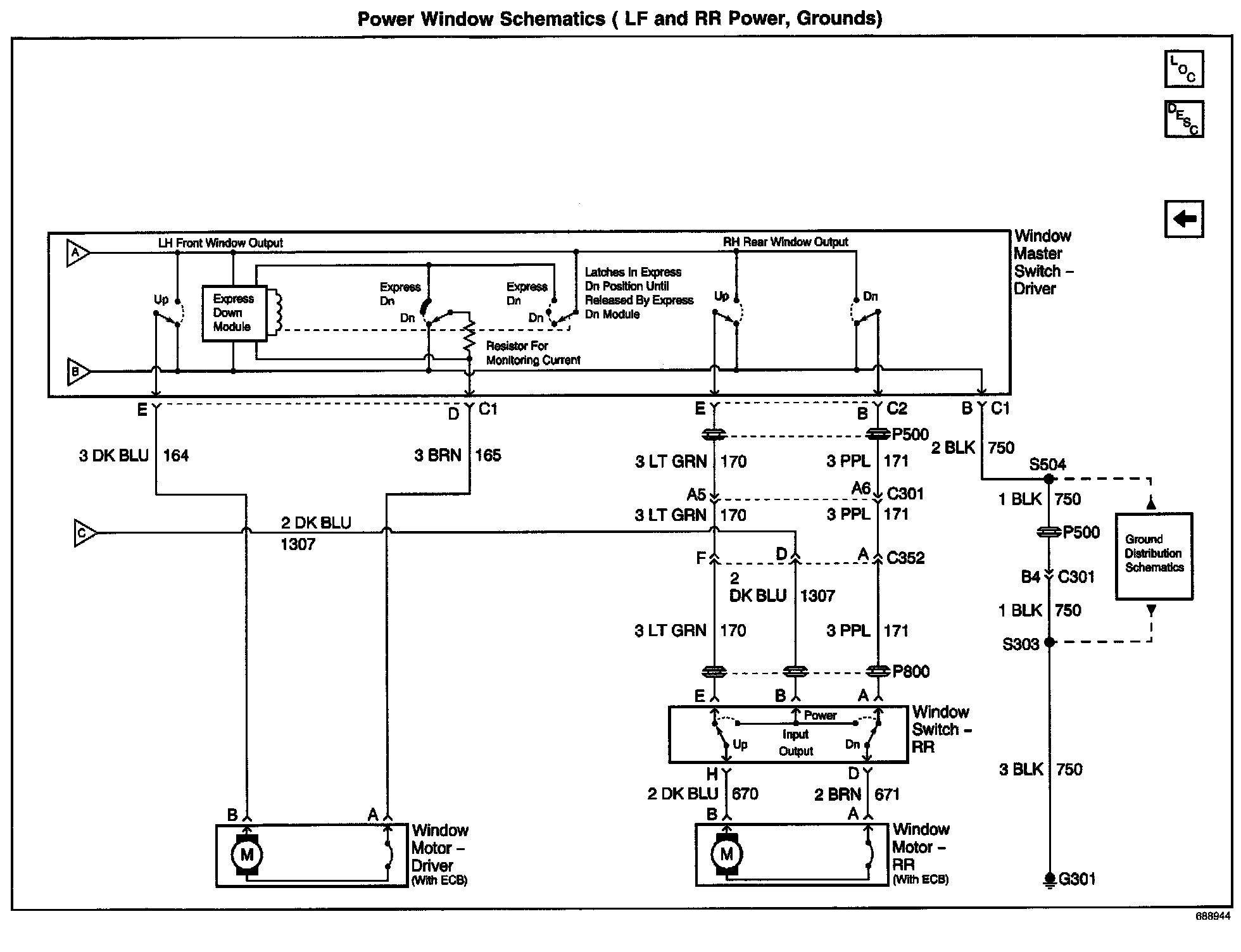

Power Window Schematics: LF And RR Power, Grounds:
