Oldsmobile
>>
2001
>>
Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
>>
Passenger Power, Ground and Switch
Passenger Power, Ground and Switch

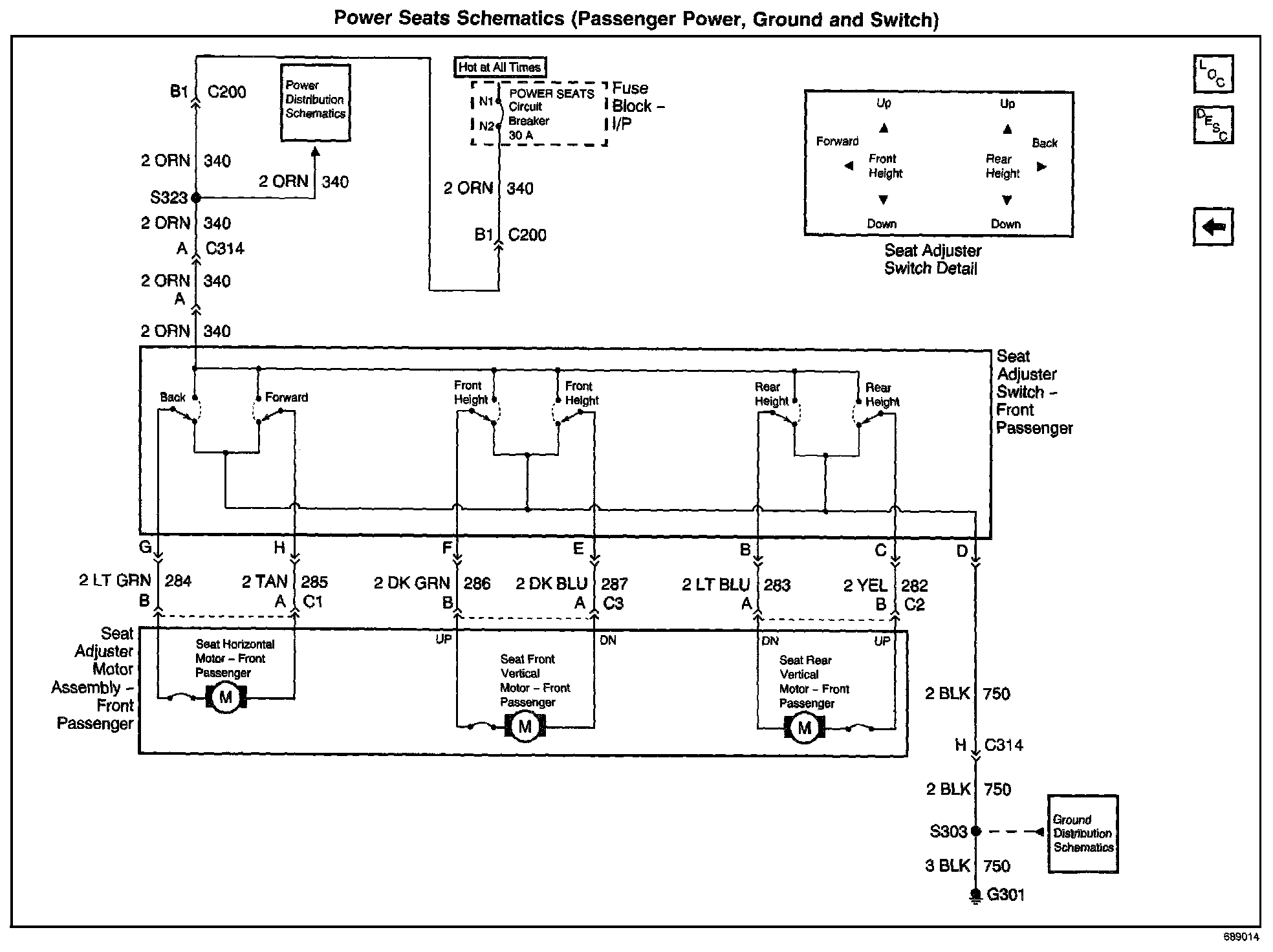

Power Seats Schematics: Passenger Power, Ground And Switch:
