Oldsmobile
>>
2001
>>
Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
>>
Driver Seat Power, Ground and Controls
Driver Seat Power, Ground and Controls

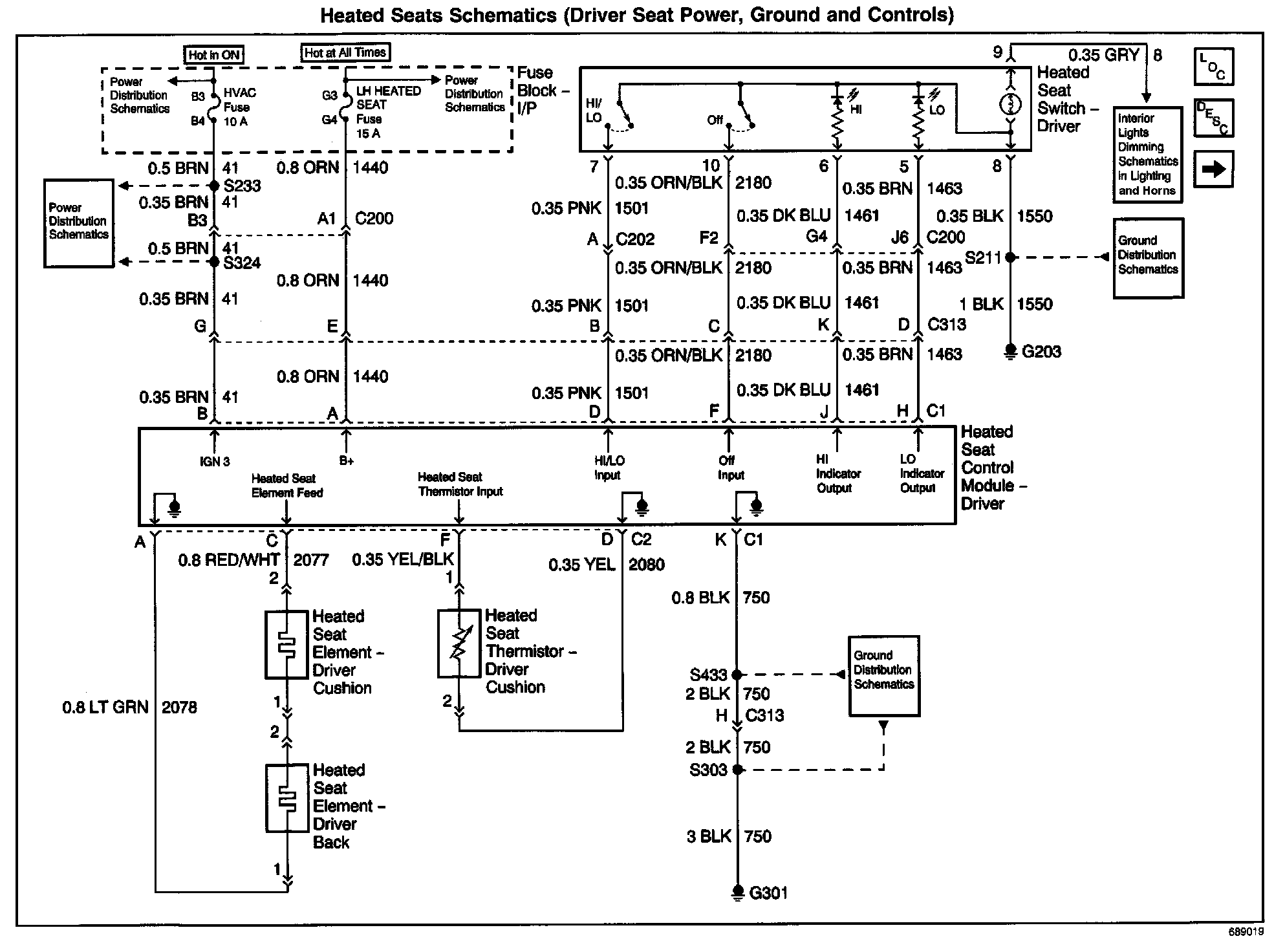

Heated Seats Schematics: Driver Seat Power, Ground And Controls:
