Oldsmobile
>>
2001
>>
Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Locks
>>
System Diagram
>>
Door Lock Circuits
Door Lock Circuits

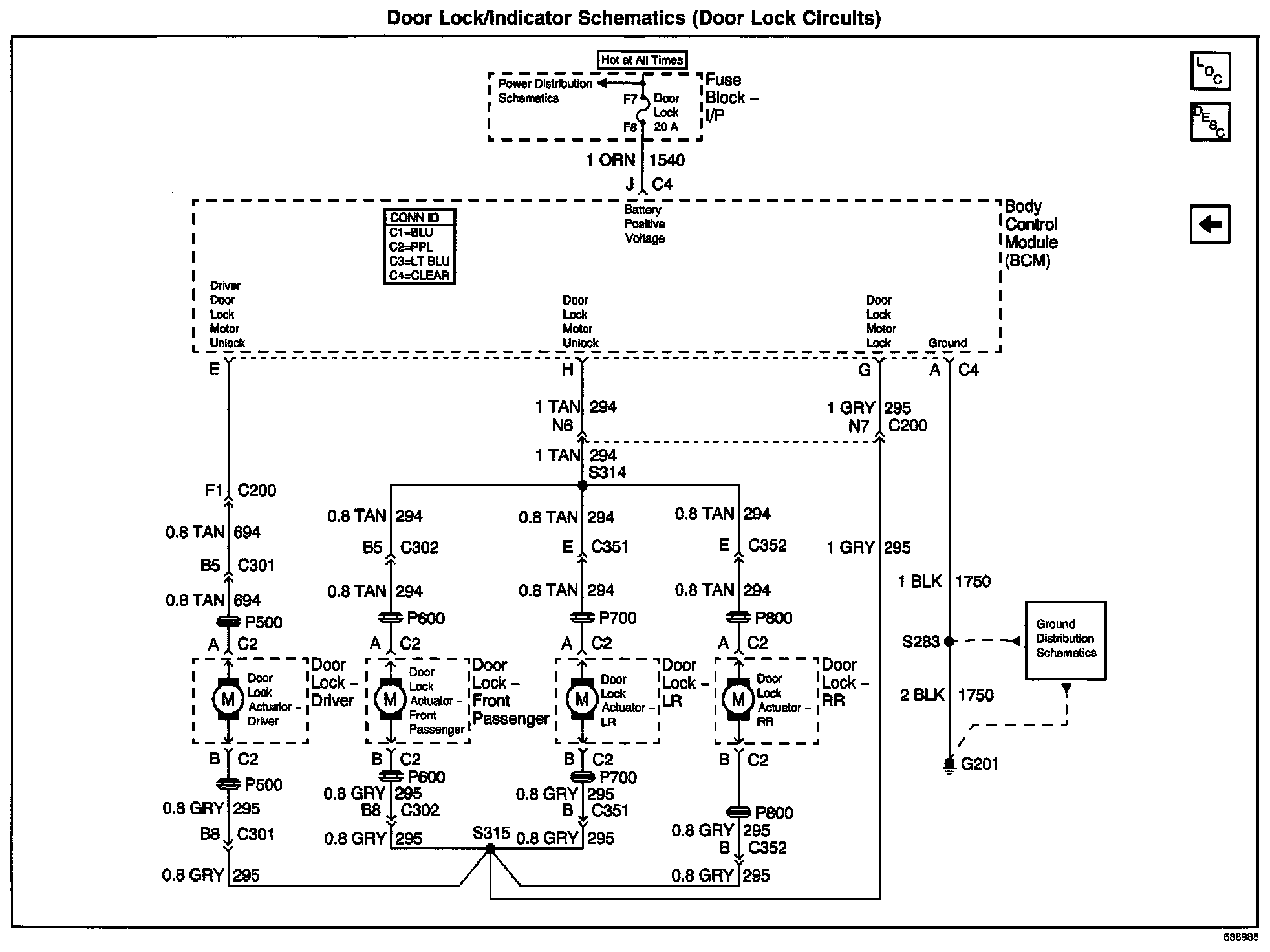

Door Lock/Indicator Schematics: Door Lock Circuits:
