Oldsmobile
>>
2001
>>
Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cruise Control
>>
PCM Serial Data
PCM Serial Data

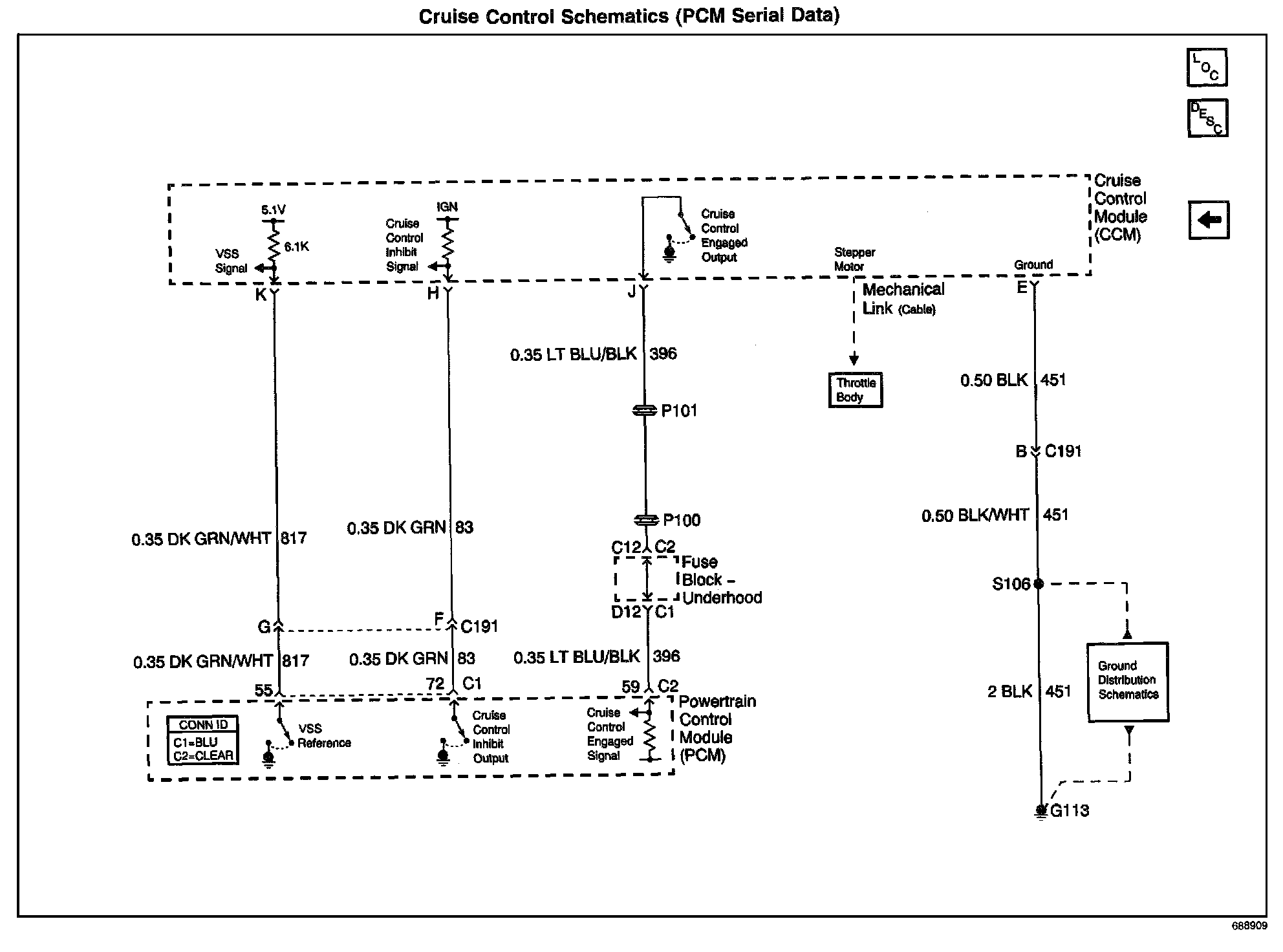

Cruise Control Schematics: PCM Serial Data:
