Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cellular Phone
>>
Vehicle Communications Unit (VCU)
Vehicle Communications Unit (VCU)

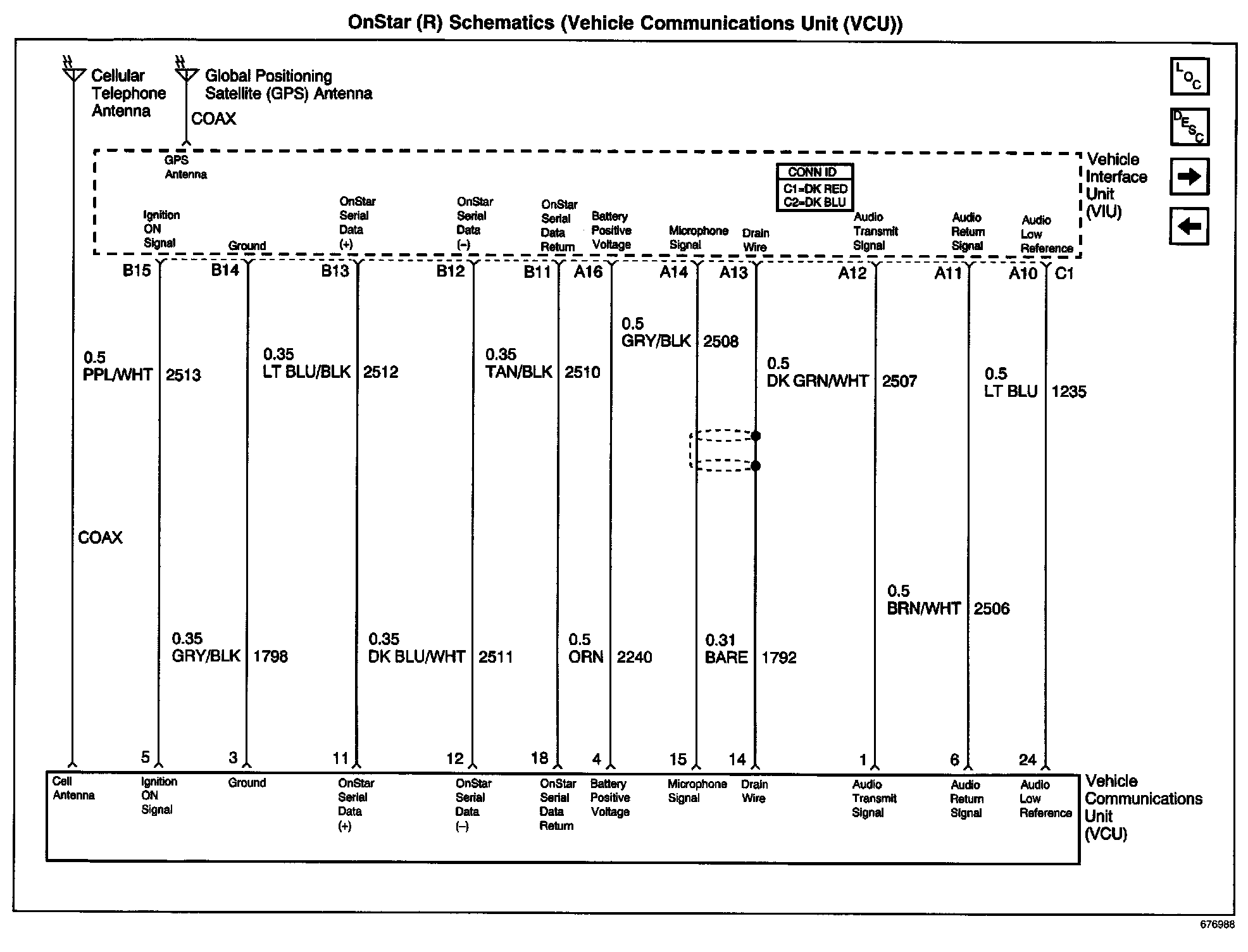

Onstar(R) Schematics: Vehicle Communication Unit (VCU):
