Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Automatic Transmission/Transaxle
>>
Shift Interlock, A/T
>>
Shift Lock Control
>>

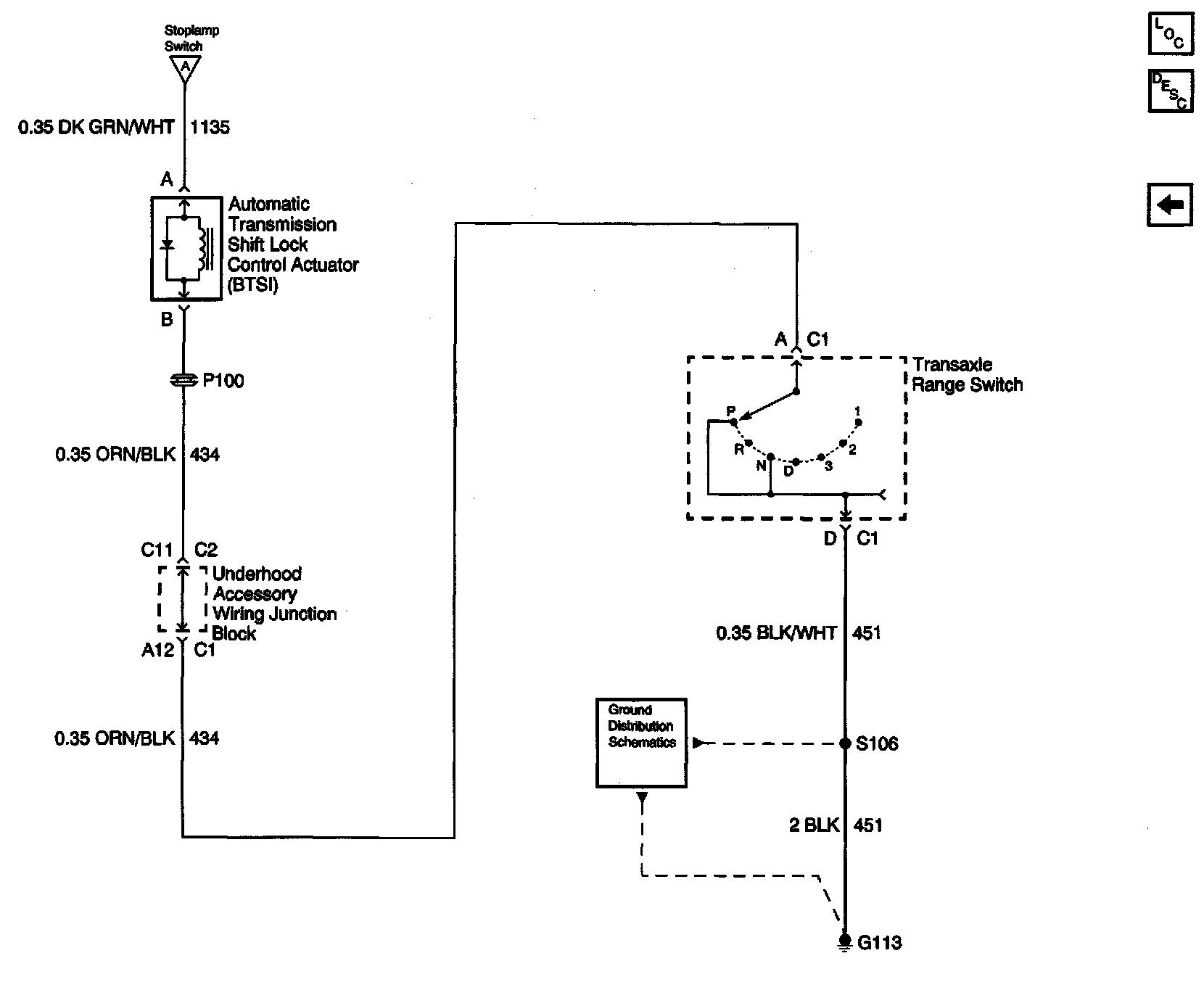

A/T Shift Lock Control Schematics ( Ground Feed and Actuator)
A/T Shift Lock Control Schematics ( Ground Feed and Actuator)
