Home
>>
Oldsmobile
>>
2001
>>
Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>
Tachometer Inputs
Tachometer Inputs

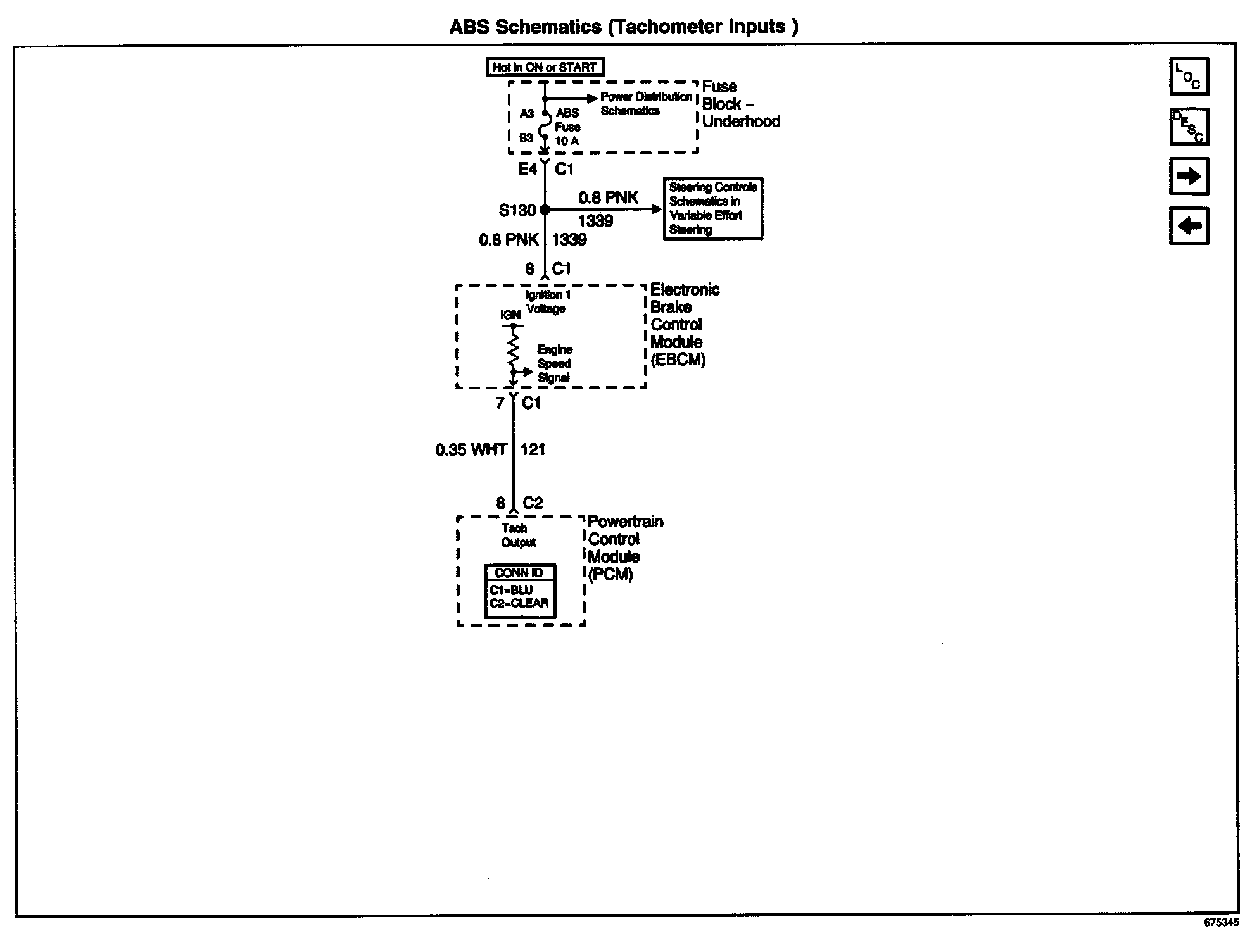

ABS Schematics: Tachometer Inputs:
