Accessory Delay Module
Accessory Delay Module

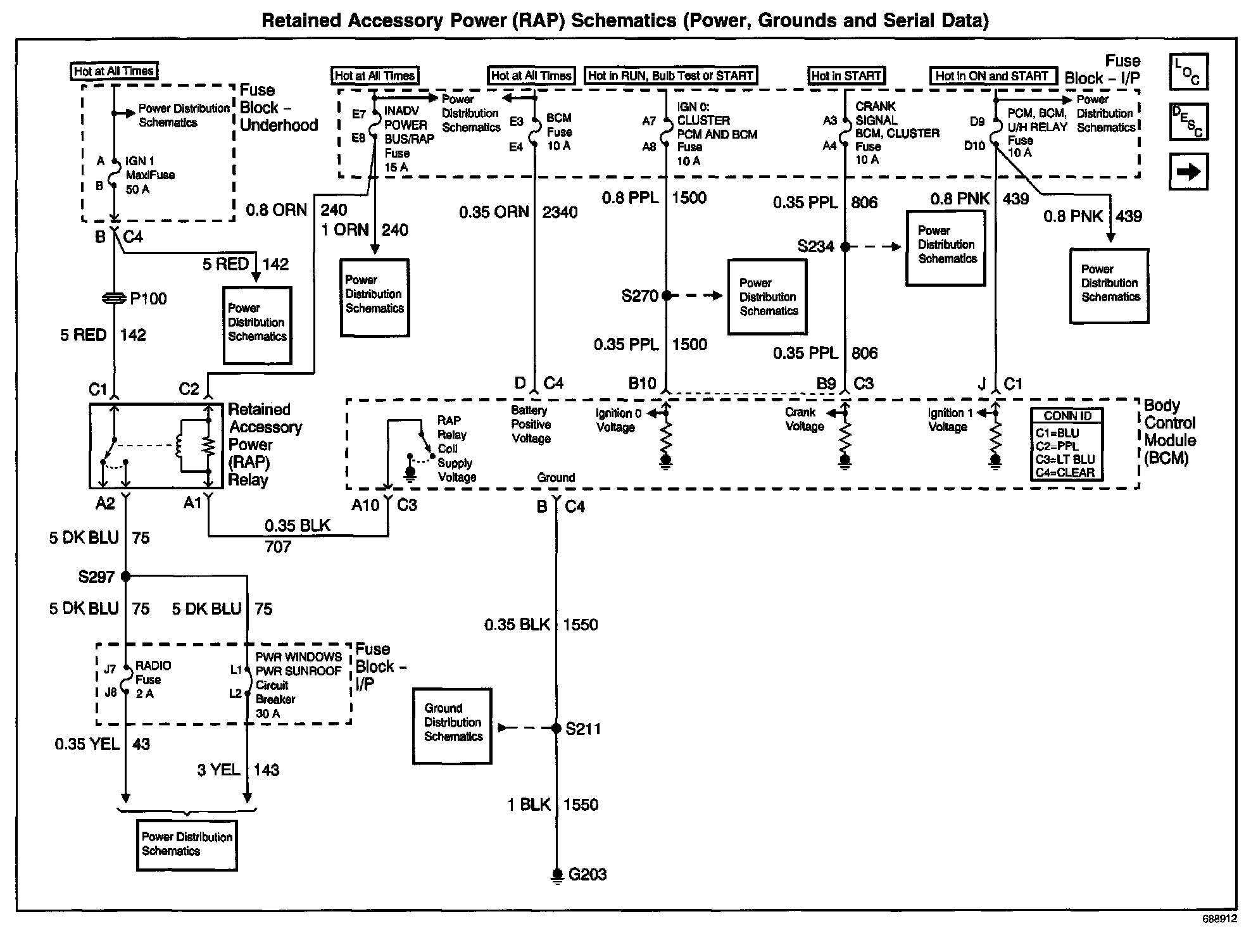

Retained Accessory Power (RAP) Schematics: Power, Grounds And Serial Data:
