Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
C400 - C499
>>
C420
C420

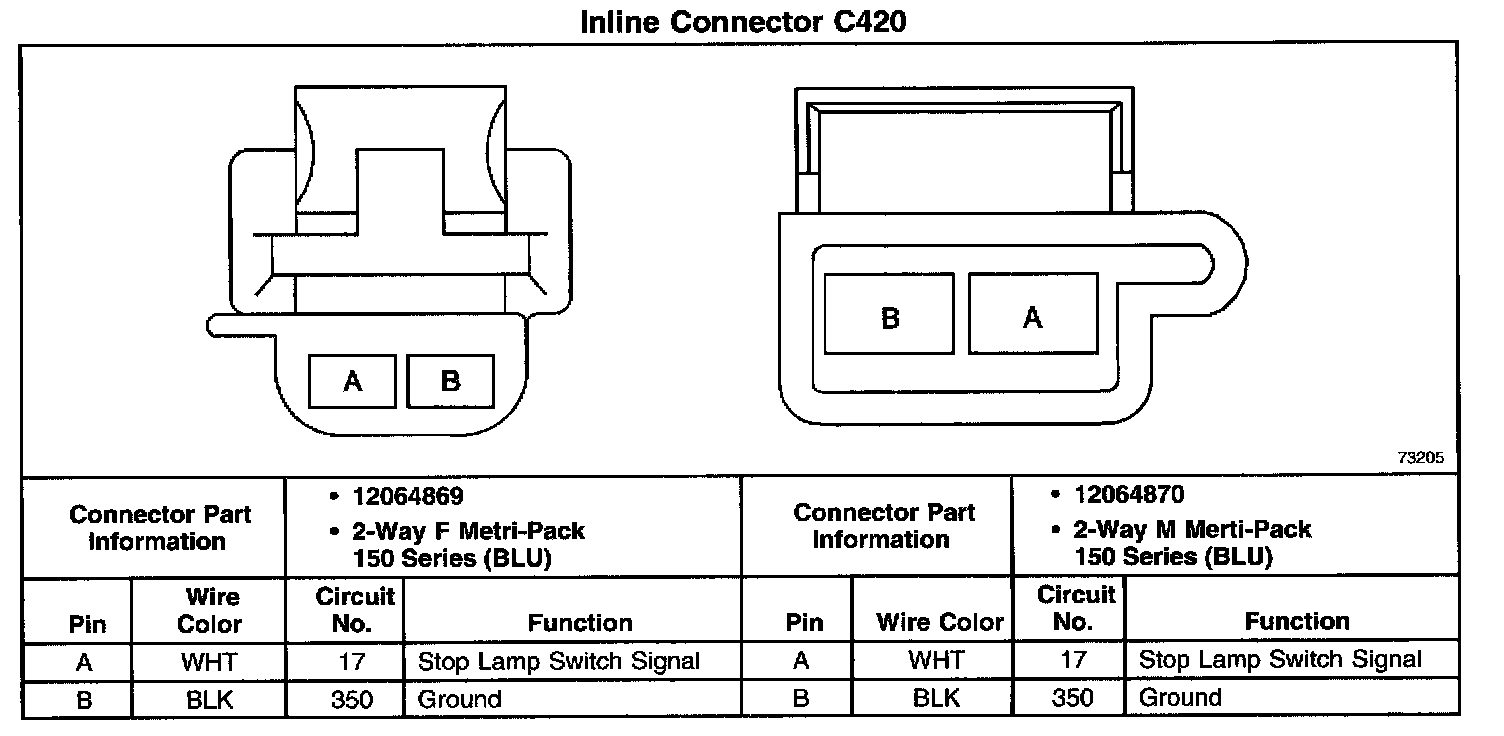

Inline Connector C420:
