Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
2001
>>
Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
C100 - C199
>>
C142
C142

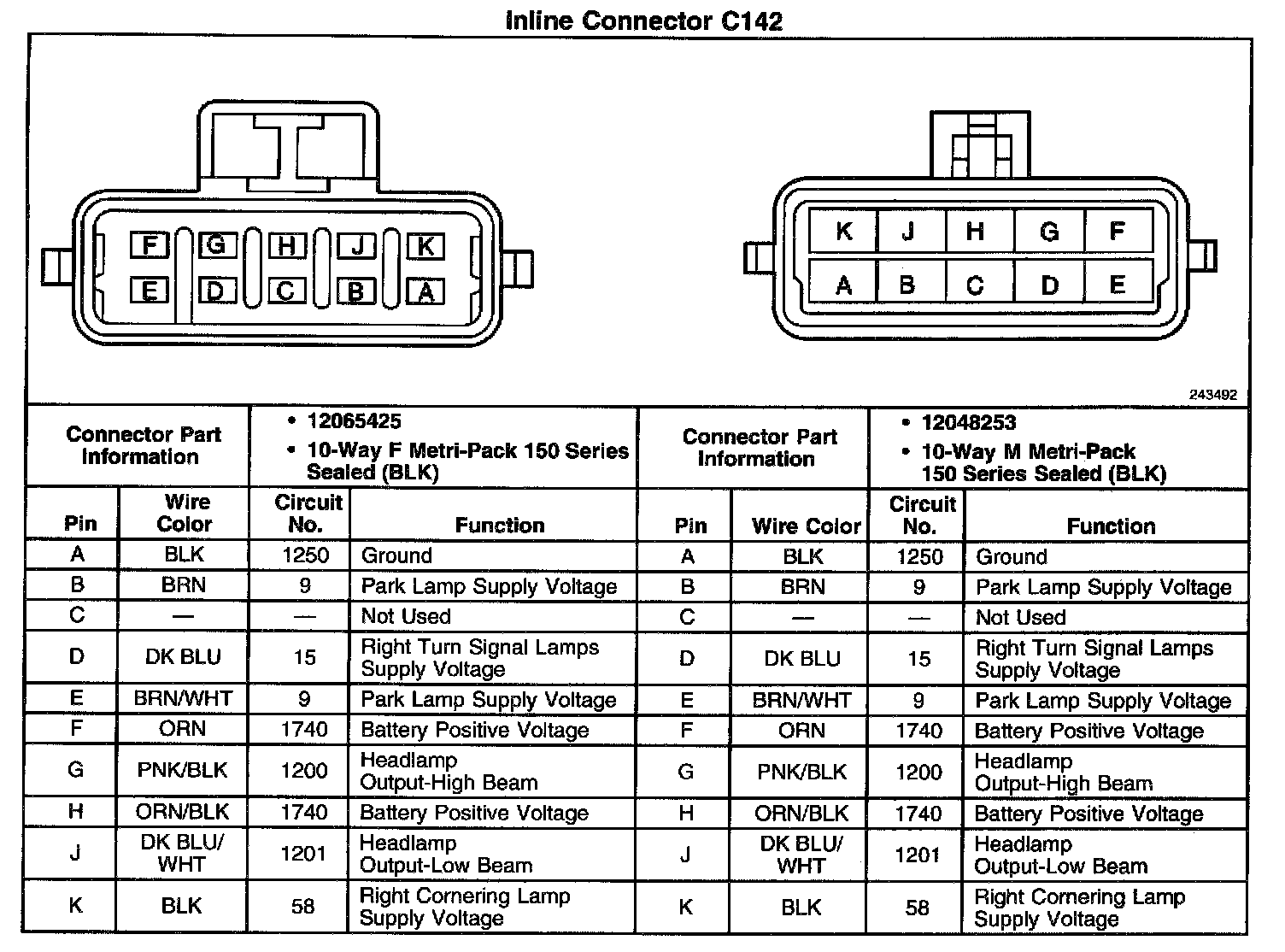

Inline Connector C142:
