Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power and Ground Distribution
>>
Fuse Block
>>
Fuse Block - Underhood Accessory Connector
Fuse Block - Underhood Accessory Connector

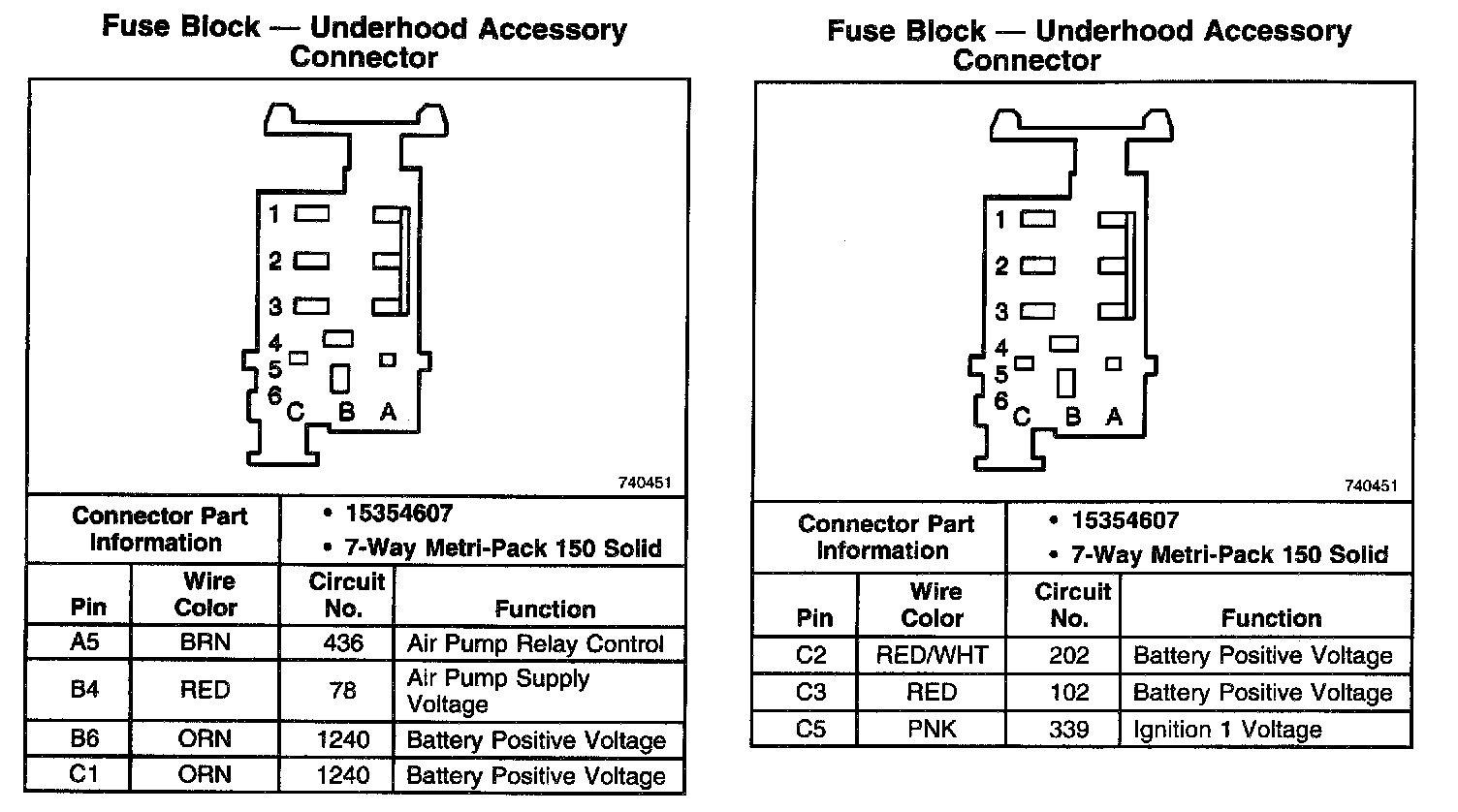

Fuse Block - Underhood Accessory Connector:
