Oldsmobile
>>
2001
>>
Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Switch
>>
Heated Seat Switch - Front Passenger
Heated Seat Switch - Front Passenger

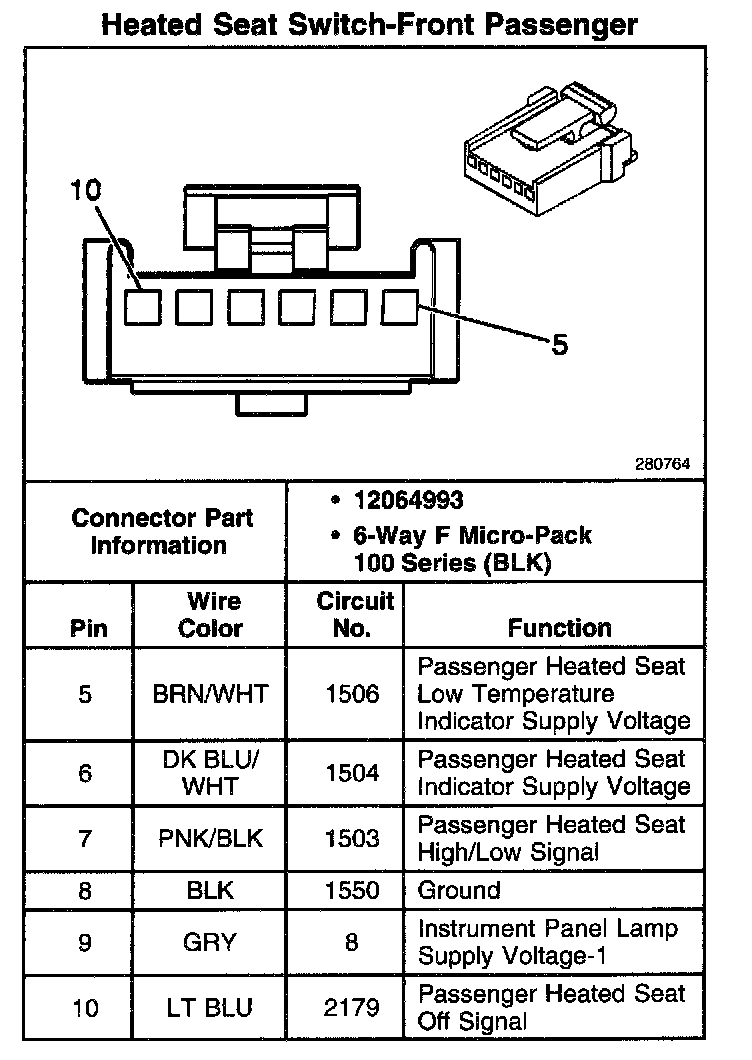

Heated Seat Switch-Front Passenger:
