Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Door Lock Actuator
>>
Door Lock Actuator C2-Driver
Door Lock Actuator C2-Driver

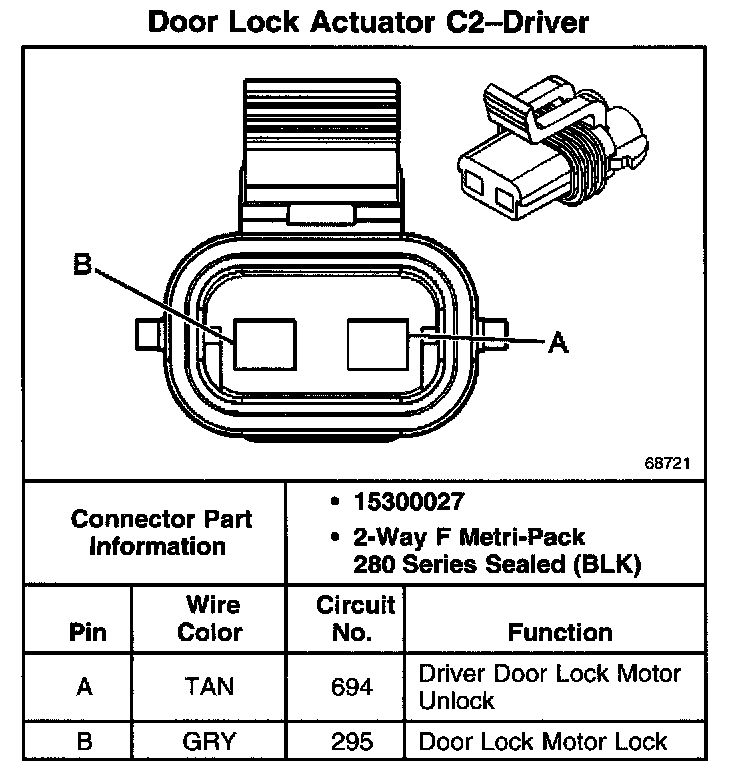

Door Lock Actuator C2-Driver:
