Oldsmobile
>>
2001
>>
Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Cooling System
Cooling System
Cooling System
Connector End Views

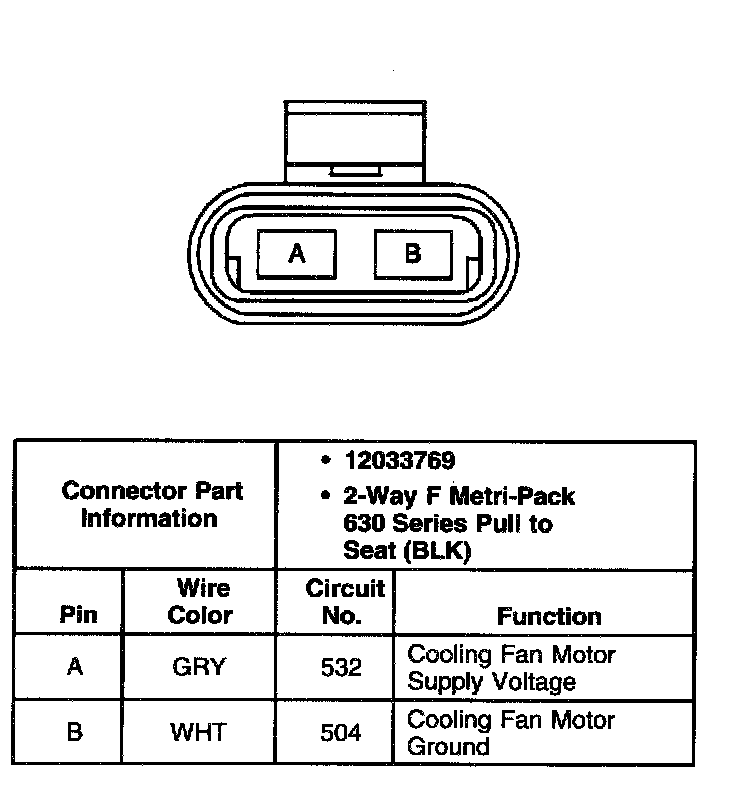

Coolant Fan - Left

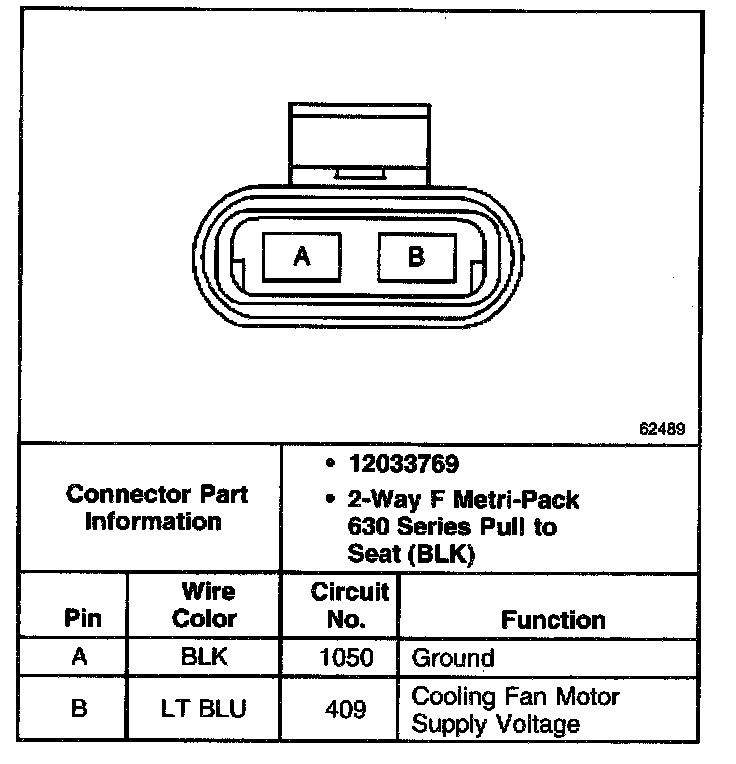

Coolant Fan - Right
