Vacuum Brake Booster Check Valve: Service and Repair

Vacuum Brake Booster Check Valve and/or Hose Replacement

Removal Procedure

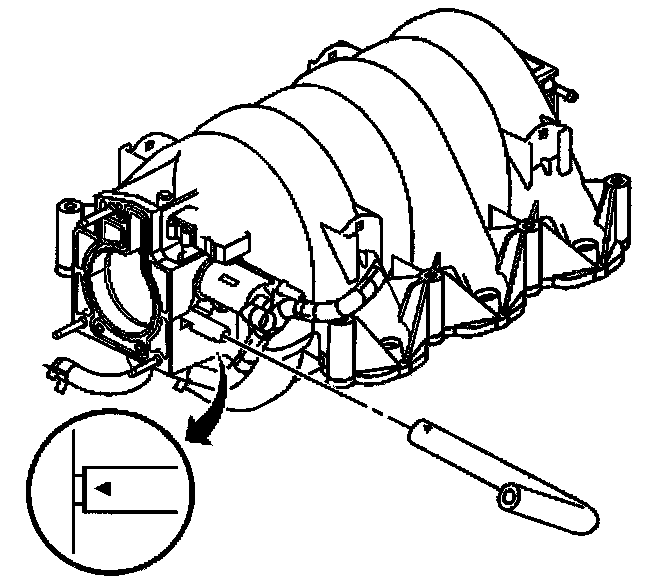

1. Disconnect the vacuum brake booster hose from the intake manifold.

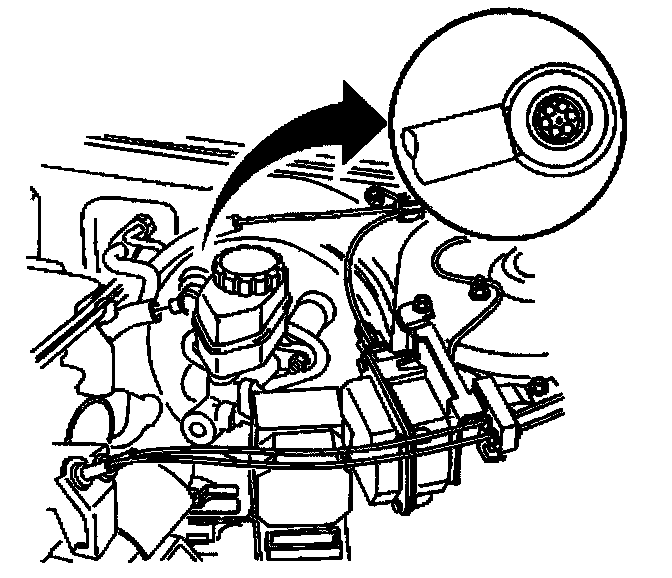

2. Disconnect the vacuum brake booster hose from vacuum brake booster check valve.
3. Remove the vacuum brake booster check valve from the vacuum brake booster.

Installation Procedure





1. Install the vacuum brake booster check valve to the vacuum brake booster

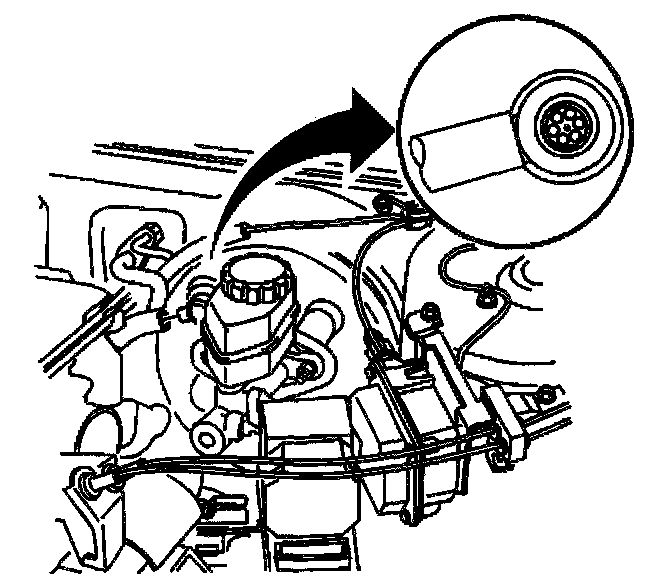

2. Connect the vacuum brake booster hose to vacuum brake booster check valve.

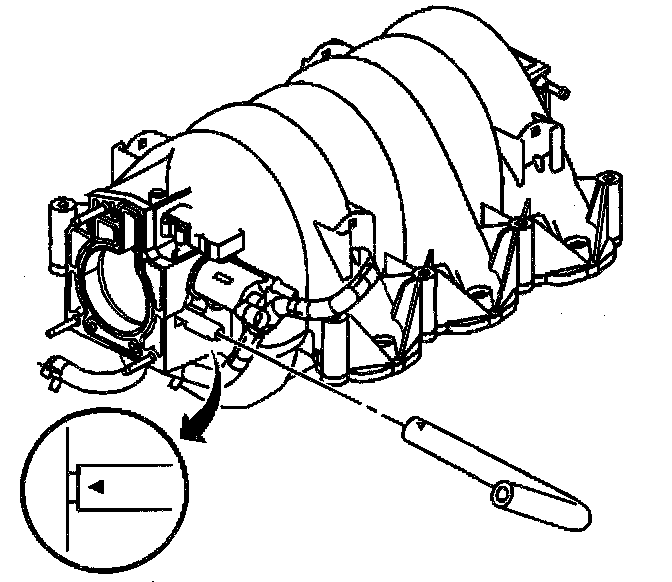

3. Connect the vacuum brake booster hose to the intake manifold until fully seated with the arrow on top.
