Brake Warning Indicator Always On

Brake Warning Indicator Always On

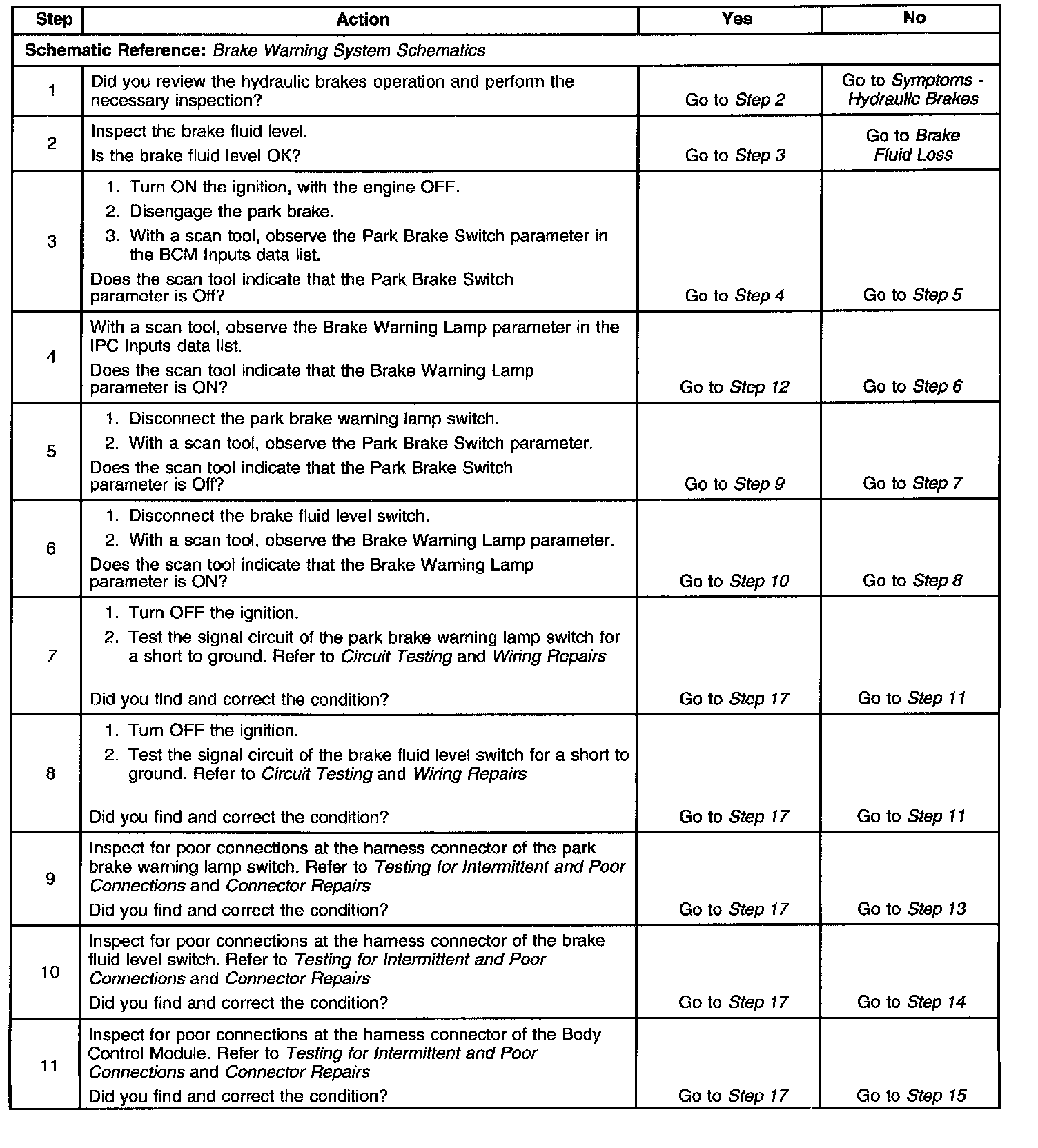

Test 1-11

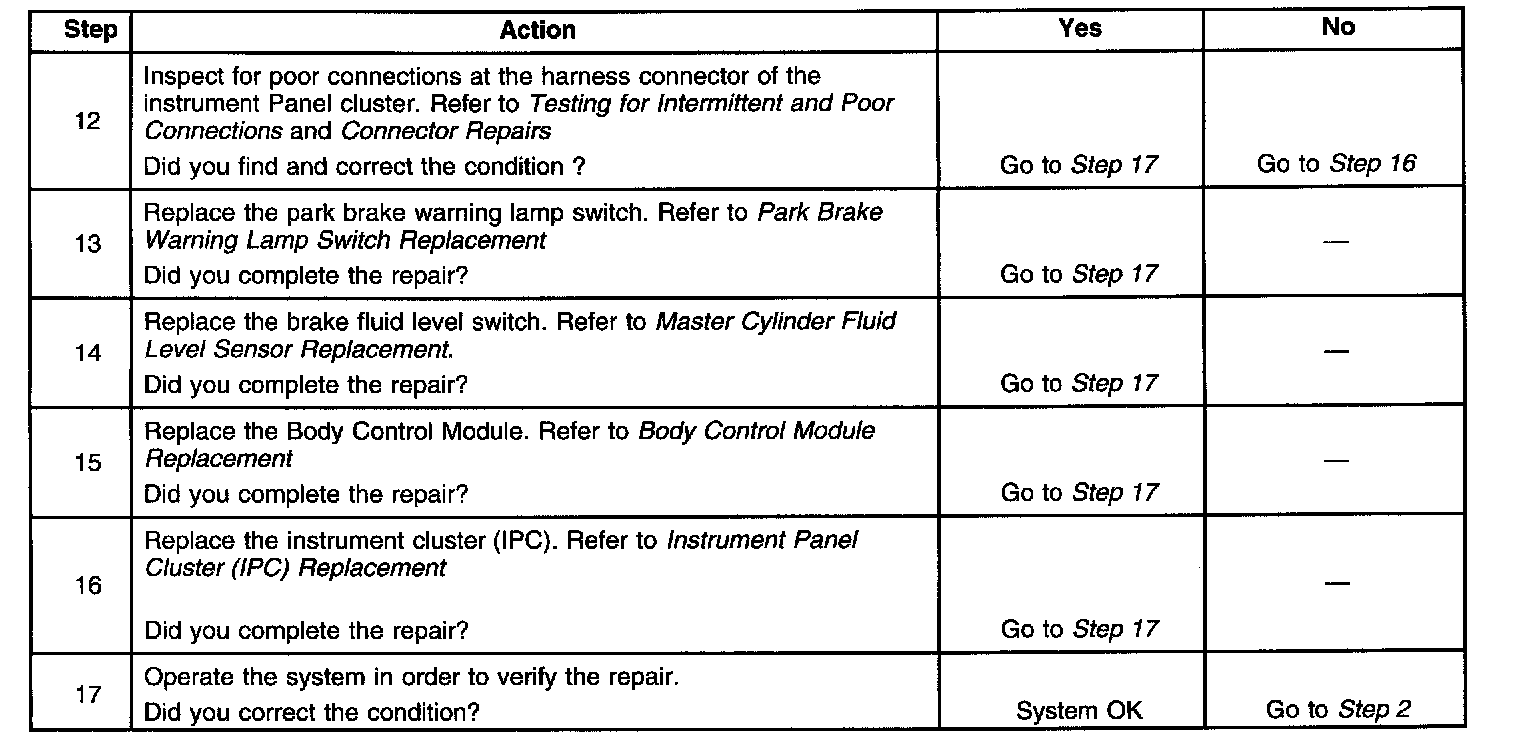

Test 12-17

Test Description
The number(s) below refer to the step number(s) on the diagnostic table.
7. If the fuse in the jumper opens when you perform this test, the signal circuit of the brake fluid level switch is shorted to voltage.
