Weatherstrip Retainer Replacement - Front Door

REMOVAL PROCEDURE

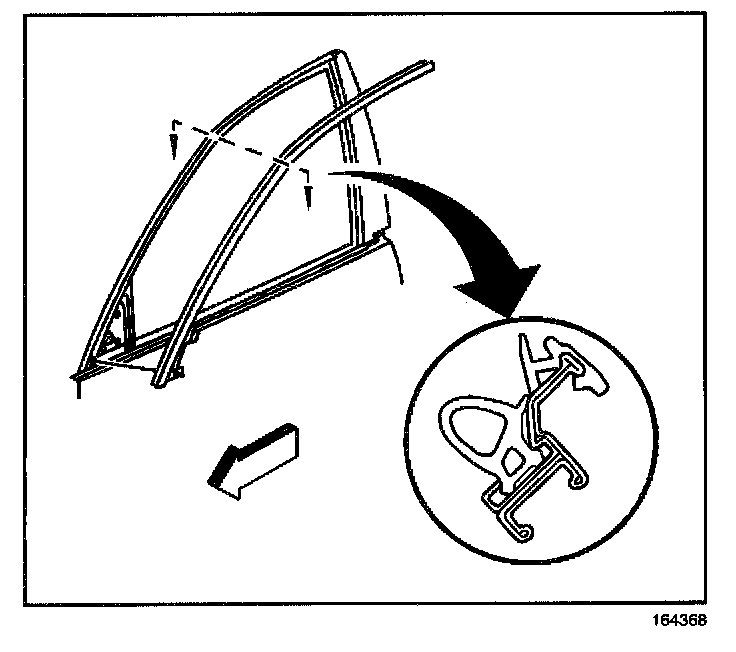

1. Remove the outside rear view mirror.
2. Remove the glass run channel in the area of the front door weather-strip retainer.
3. Use a small flat-bladed tool to pull the front door window weather-strip retainer from the front door while pulling the front door window weather-strip upward.
4. Remove the front door window weather-strip retainer from the front door.

INSTALLATION PROCEDURE

IMPORTANT: Inspect the plastic clip retainers for damage prior to reinstallation of the window weather-strip retainer replacing any damaged plastic clip retainers.

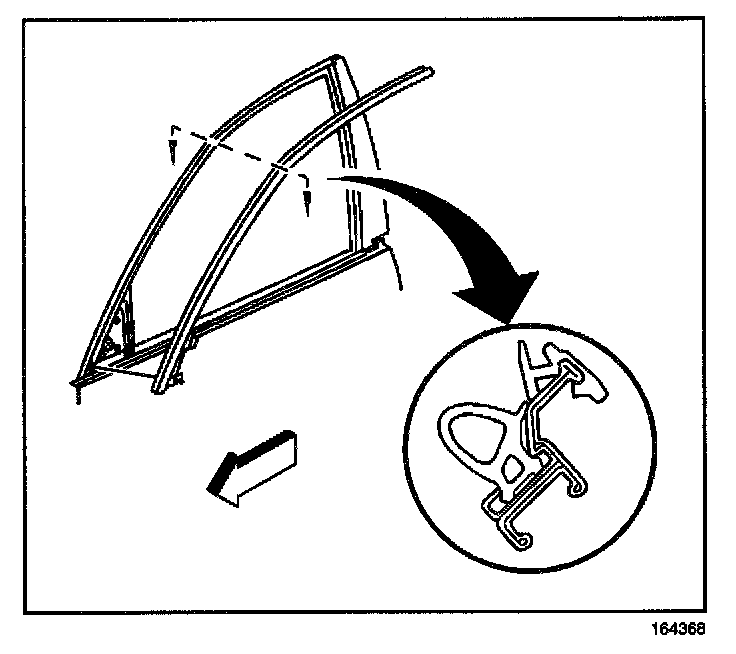

1. Align the front door window weather-strip retainer to the front door.
2. Apply pressure to the front door window weather-strip retainer until fully seated.
3. Install the glass run channel in the area of the front door weather-strip retainer.
4. Install the outside rearview mirror.
