Power Seat Motor: Diagrams

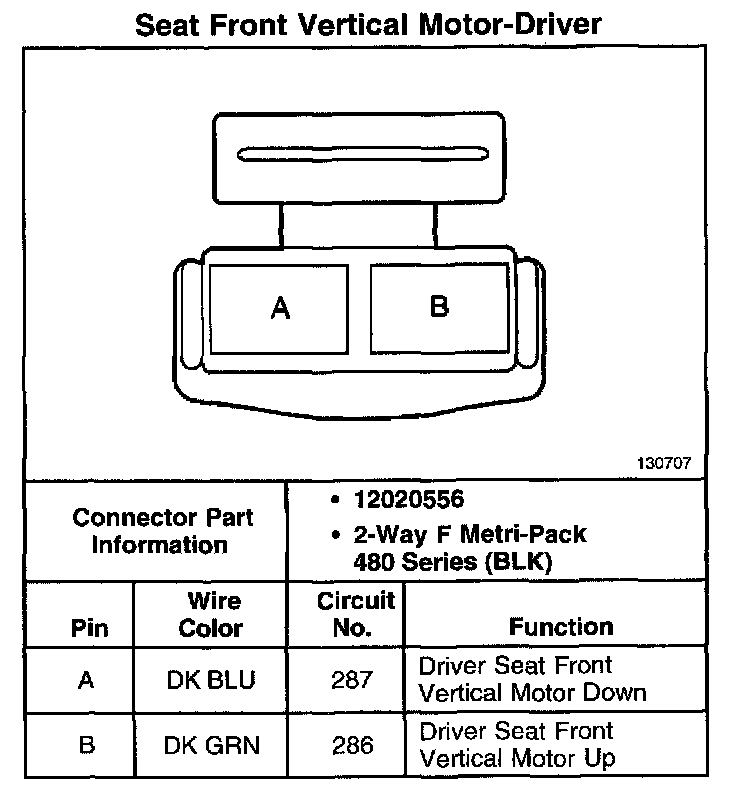

Seat Front Vertical Motor-Driver:

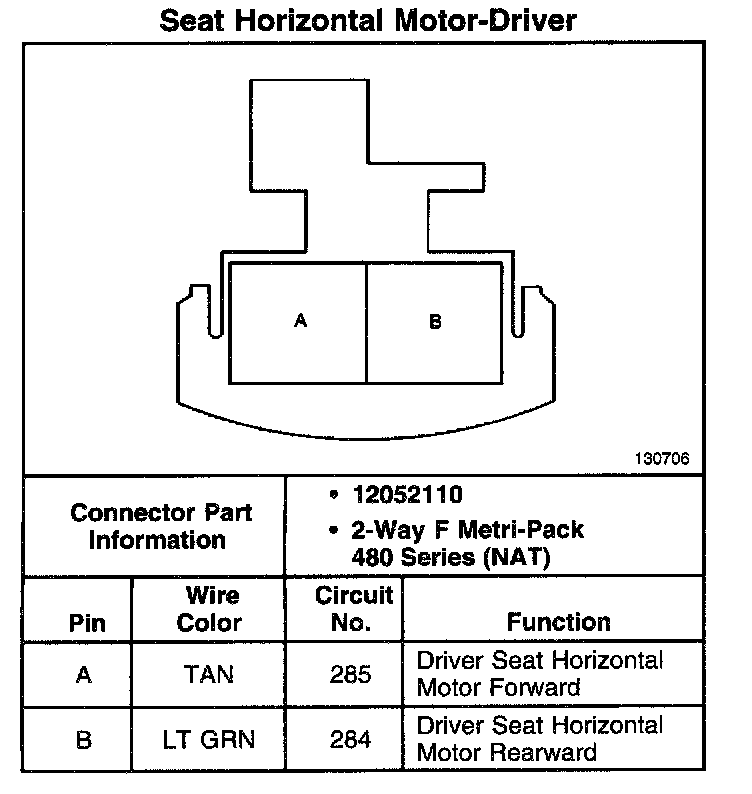

Seat Horizontal Motor-Driver:

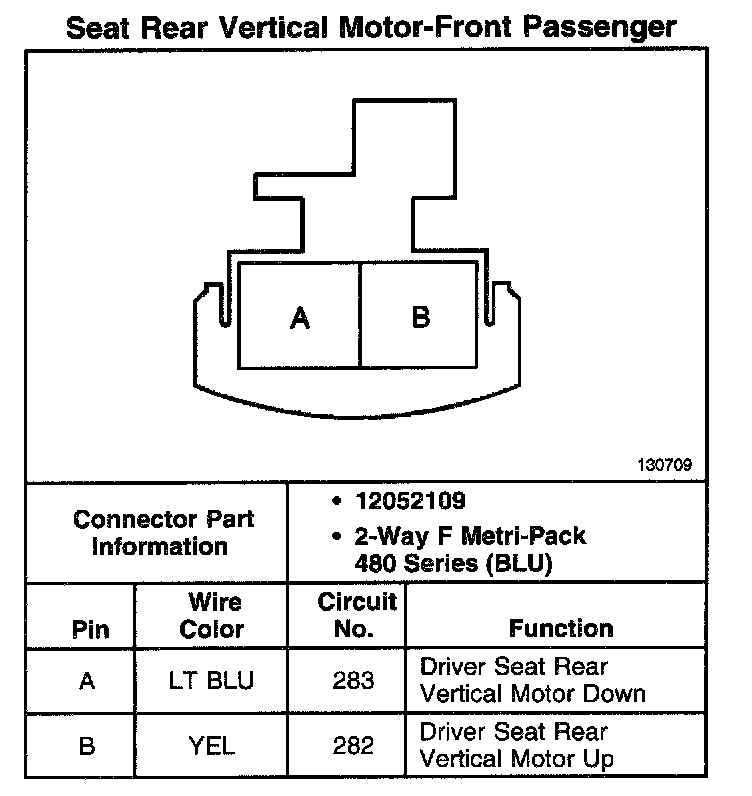

Seat Rear Vertical Motor-Front Passenger:
