Door Lock Cylinder: Service and Repair

Door Lock Cylinder Replacement

Removal Procedure

1. Remove the front door outside door handle. Refer to Door Handle Rod Adjustment - Front Outside (Adjustments).

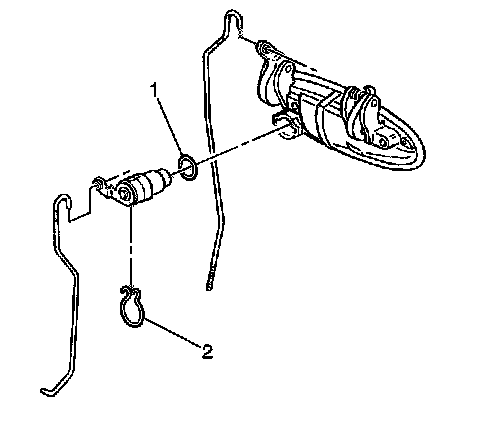

2. Remove the front door lock cylinder retainer clip (2).
3. Remove the front door lock cylinder from the front door outside handle.


Installation Procedure




1. Align the front door lock cylinder to the front door outside handle.
2. Install the front door lock cylinder retainer clip (2).
3. Install the front door outside handle. Refer to Door Handle Rod Adjustment - Front Outside (Adjustments).
