P1640
CIRCUIT DESCRIPTIONOutput Driver Modules (ODM) are chips that are inside the Powertrain Control Module (PCM). ODMs provide grounded outputs that control devices. Each output has an internal feedback circuit that connects to the PCM microprocessor. ODM 1 determines if the voltage or the current may cause damage to the PCM. The PCM monitors voltage through the Ignition 1 input. Any incorrect current that is on a circuit to the ODM will cause the ODM to report this DTC.
CONDITIONS FOR RUNNING THE DTC
The ignition is ON.
CONDITIONS FOR SETTING THE DTC
The ODM has detected a voltage greater than 33 volts.
or
^ Excessive current is detected on any circuit to the ODM.
^ Conditions present for 30 seconds.
ACTION TAKEN WHEN THE DTC SETS
^ The PCM will not illuminate the Malfunction Indicator Lamp (MIL).
^ The PCM will store conditions which were present when the DTC set as Failure Records only. This information will not be stored as Freeze Frame Records.
CONDITIONS FOR CLEARING THE MIL/DTC
^ A History DTC will clear after 40 consecutive warm-up cycles have occurred without a malfunction.
^ The DTC can be cleared by using a scan tool.
DIAGNOSTIC AIDS
An over charging condition may set this DTC. Refer to Diagnostic System Check - Starting and Charging. Testing and Inspection
Thoroughly inspect any circuitry that is suspected of causing the intermittent complaint. Repair the circuits as necessary. Refer to Intermittent Conditions. Intermittent Conditions

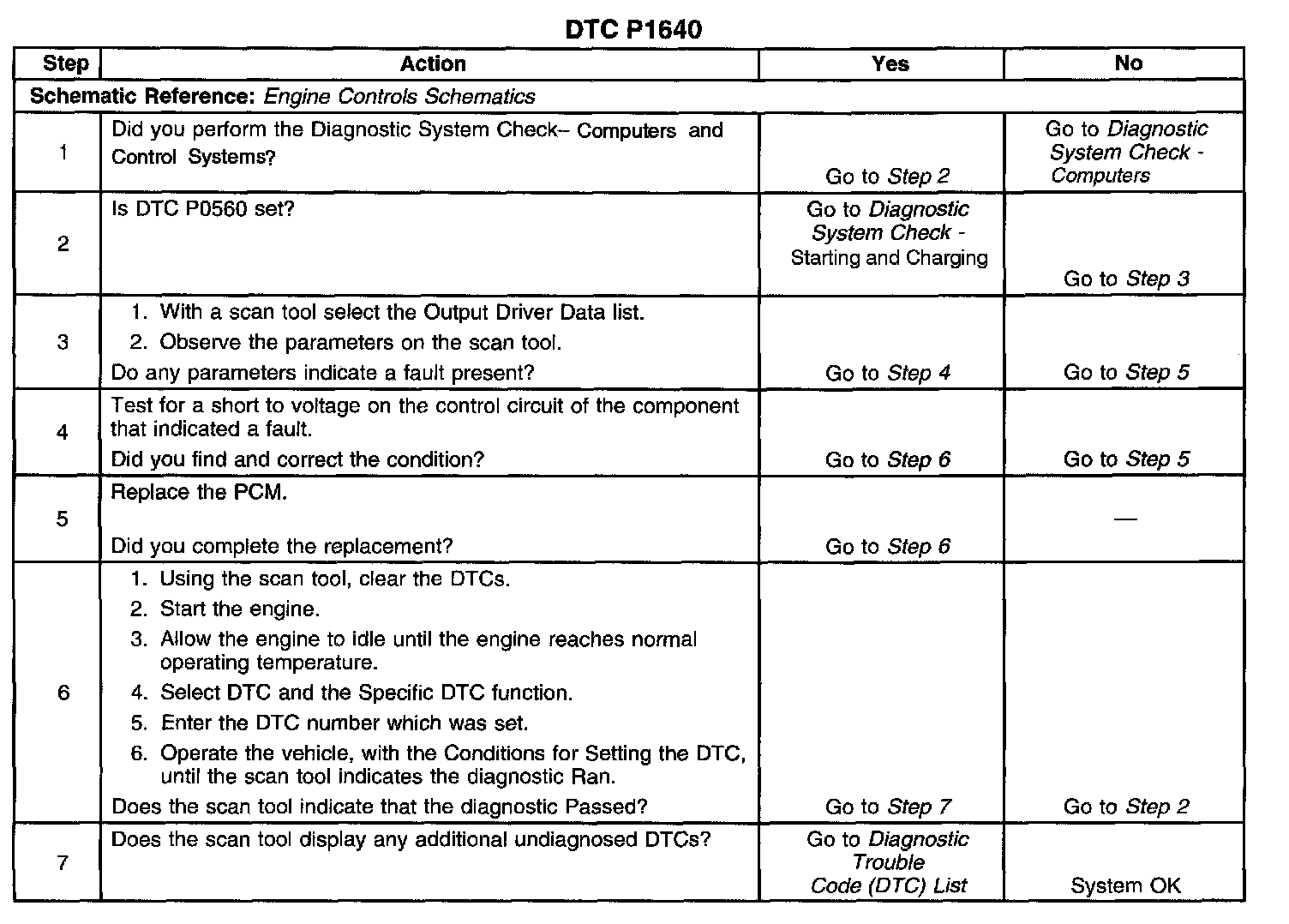

TEST
