P1122

CIRCUIT DESCRIPTION
The Throttle Position (TP) sensor is used by the Powertrain Control Module (PCM) to determine the throttle plate angle for various engine management systems. The TP sensor is a potentiometer type sensor with three circuits, a 5-volt reference, a low reference, and a signal Rotation of the TP sensor rotor from the closed throttle position to the Wide Open Throttle (WOT) position provides the PCM with a signal voltage from below 1 volt to greater than 4 volts through the TP sensor signal circuit. If the PCM detects an intermittent excessively low signal voltage, This DTC will set.

CONDITIONS FOR RUNNING THE DTC
The ignition is ON.

CONDITIONS FOR SETTING THE DTC
TP sensor intermittently indicates a throttle position signal less than 0.16 volts.

ACTION TAKEN WHEN THE DTC SETS
^ The PCM will not illuminate the Malfunction Indicator Lamp (MIL).
^ The PCM will store conditions which were present when the DTC set as Failure Records only. This information will not be stored as Freeze Frame Records.

CONDITIONS FOR CLEARING THE MIL/DTC
^ A History DTC will clear after 40 consecutive warm-up cycles have occurred without a malfunction.
^ The DTC can be cleared by using a scan tool.

TEST DESCRIPTION

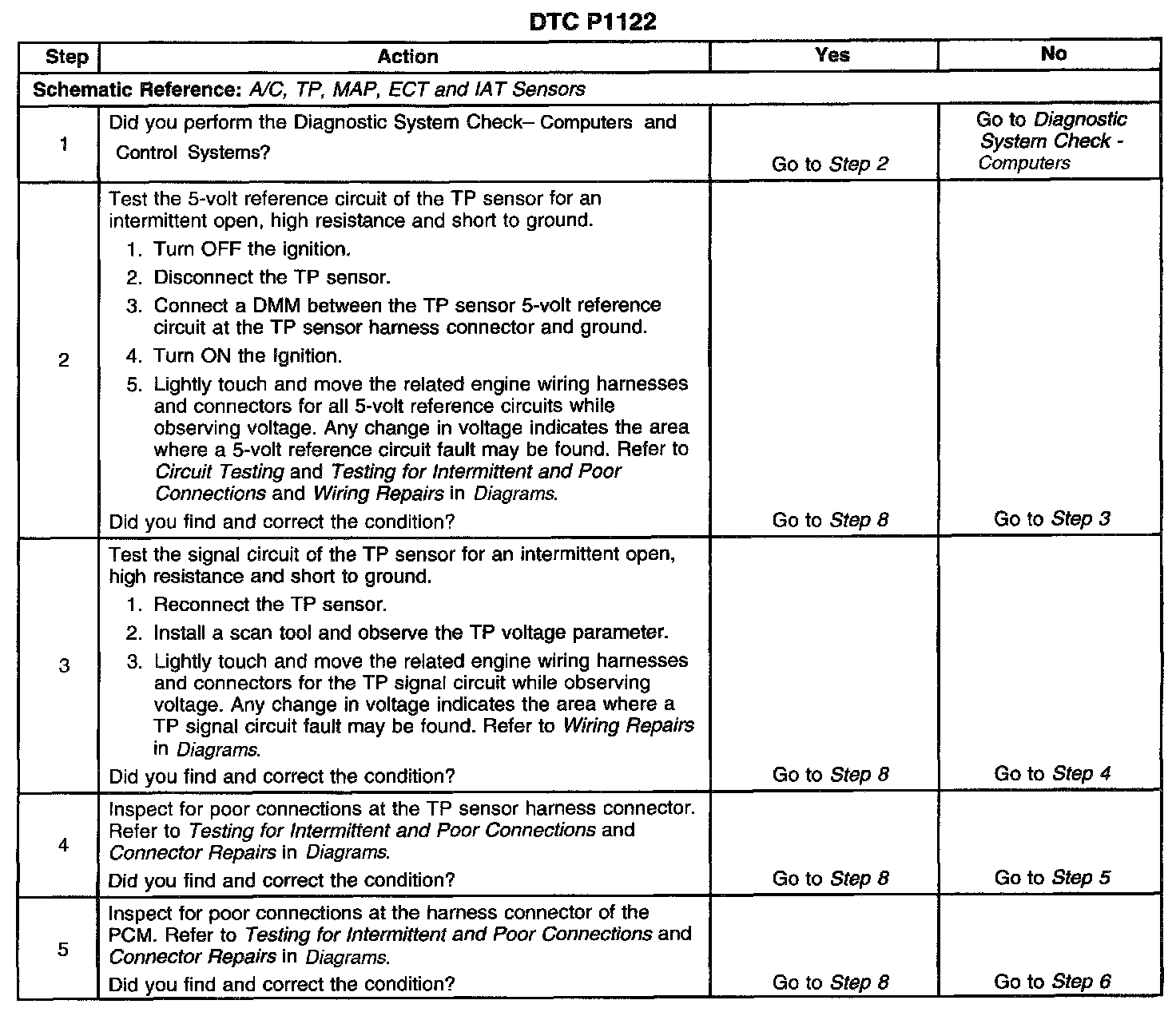

Steps 1-5:

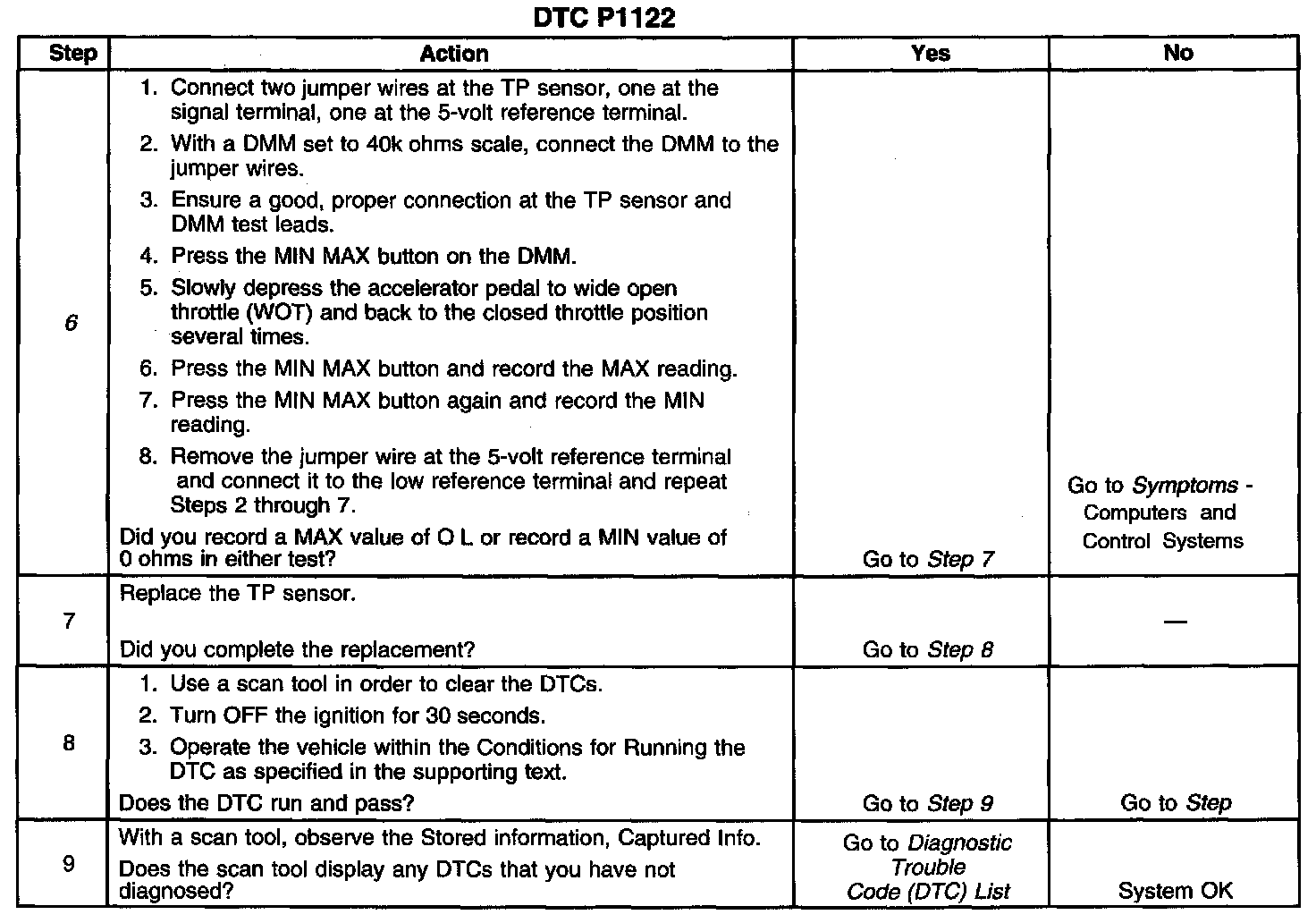

Steps 6-9:

The numbers below refer to the step numbers on the diagnostic table:
6. This test will determine an intermittent faulty TP sensor utilizing the DMMs MIN MAX, 100 millisecond capture mode.
