P0405

CIRCUIT DESCRIPTION
The Powertrain Control Module (PCM) monitors the Exhaust Gas Recirculation (EGR) valve pintle position input to ensure that the valve responds properly to commands from the PCM and to detect a fault if the pintle position sensor circuit is open or shorted. If the PCM detect an excessively low EGR Position sensor signal voltage, this DTC will set.

CONDITIONS FOR RUNNING THE DTC
The system voltage is greater than 10 volts.

CONDITIONS FOR SETTING THE DTC
^ The EGR Position sensor is less than 0.14 volts at any time.
^ The condition is present for more than 20 seconds.

ACTION TAKEN WHEN THE DTC SETS
^ The PCM illuminates the Malfunction Indicator Lamp on the second consecutive ignition cycle that the diagnostic runs and fails.
^ The PCM records the operating conditions at the time the diagnostic fails. The first time the diagnostic fails, the PCM stores this information in the Failure Records. If the diagnostic reports a failure on the second consecutive ignition cycle, the PCM records the operating conditions at the time of the failure. The PCM writes the conditions to the Freeze Frame and updates the Failure records.
^ The PCM disables the EGR for the ignition cycle.

CONDITIONS FOR CLEARING THE MIL/DTC
^ The PCM will turn OFF the MIL during the third consecutive trip in which the diagnostic has been run and passed.
^ The History DTC will clear after 40 consecutive warm-up cycles have occurred without a malfunction.
^ The DTC can be cleared by using a scan tool.

TEST DESCRIPTION

Steps 1-4:

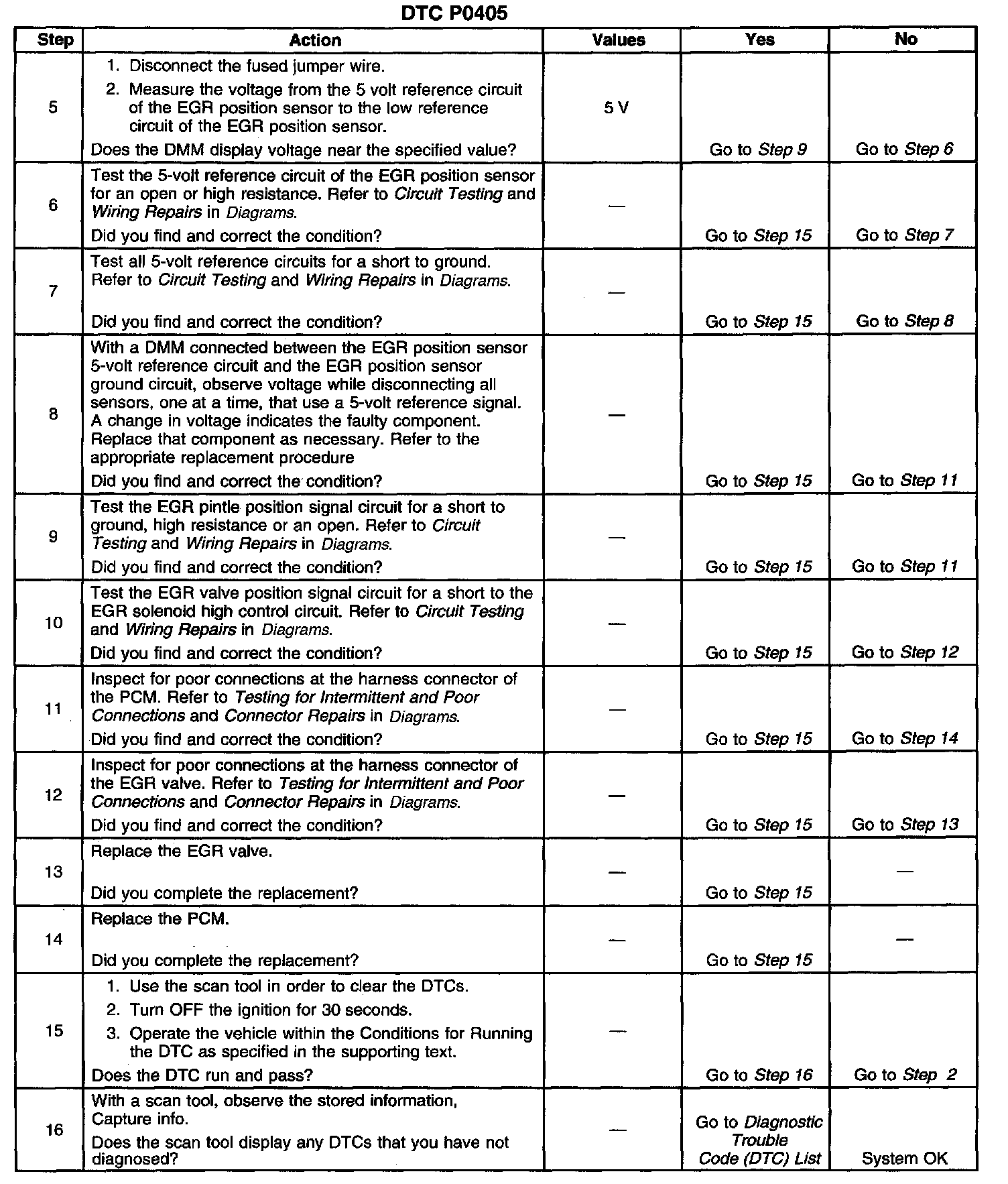

Steps 5-16:

The number below refers to the step number on the diagnostic table.
2. Verifies that the malfunction is present.
