P0230

CIRCUIT DESCRIPTION
The Powertrain Control Module (PCM) provides ignition positive voltage to the coil side of the fuel pump relay. When the ignition switch is first turned ON, the PCM energizes the fuel pump relay, which applies power to the fuel pump. The PCM enables the fuel pump relay as long as the engine is cranking or running, and crankshaft reference pulses are received. If no crankshaft reference pulses are received, the PCM de-energizes the fuel pump relay after 2 seconds. The PCM monitors the voltage on the fuel pump relay control circuit. If the PCM detects an incorrect voltage on the fuel pump relay control circuit, DTC P0230 sets.

CONDITIONS FOR RUNNING THE DTC
^ The ignition is ON.
^ The system voltage is between 8 and 16 volts.

CONDITIONS FOR SETTING THE DTC
^ The PCM detects an incorrect voltage on the control circuit of the fuel pump relay.
^ The condition exists for 10 seconds.

ACTION TAKEN WHEN THE DTC SETS
^ The PCM stores the DTC information into memory when the diagnostic runs and fails.
^ The Malfunction Indicator Lamp (MIL) will not illuminate.
^ The PCM records the operating conditions at the time the diagnostic fails. The PCM stores this information in the Failure Records.

CONDITIONS FOR CLEARING THE DTC
^ A last test failed, or current DTC, clears when the diagnostic runs and does not fail.
^ A history DTC will clear after 40 consecutive warm-up cycles, if no failures are reported by this or any other non-emission related diagnostic.
^ Use a scan tool in order to clear the DTC.

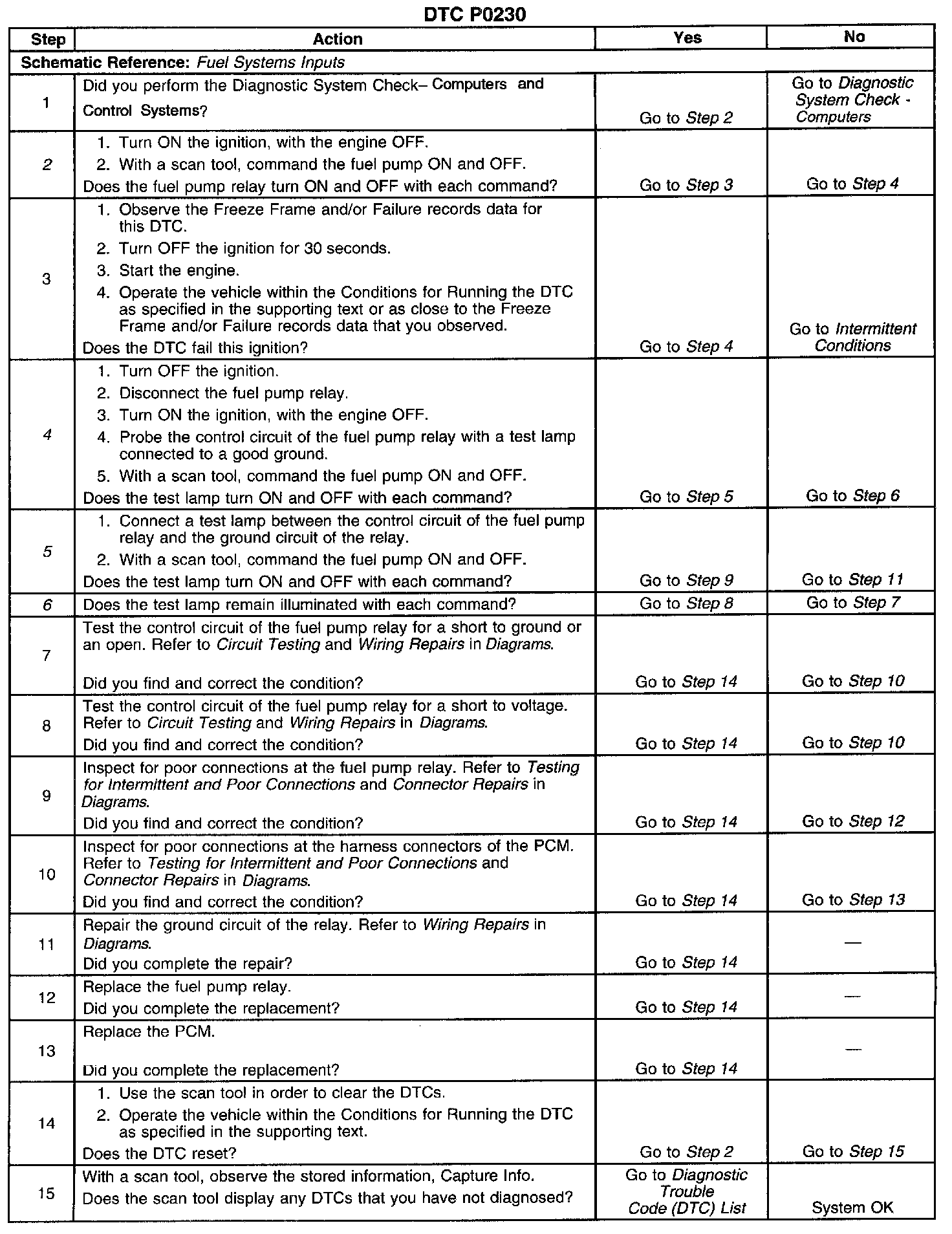

TEST DESCRIPTION

Steps 1-15:

The number(s) below refer to the step number(s) on the diagnostic table.
2. Listen for an audible click when the fuel pump relay operates. Command both the ON and OFF states. Repeat the commands as necessary.
4. This step verifies that the PCM is providing voltage to the fuel pump relay.
5. This step tests for an open in the ground circuit to the fuel pump relay.
6. This step tests if voltage is constantly being applied to the control circuit of the fuel pump relay.
