Canister Purge Control Valve: Service and Repair
EVAPORATIVE EMISSION (EVAP) CANISTER PURGE VALVE REPLACEMENTREMOVAL PROCEDURE

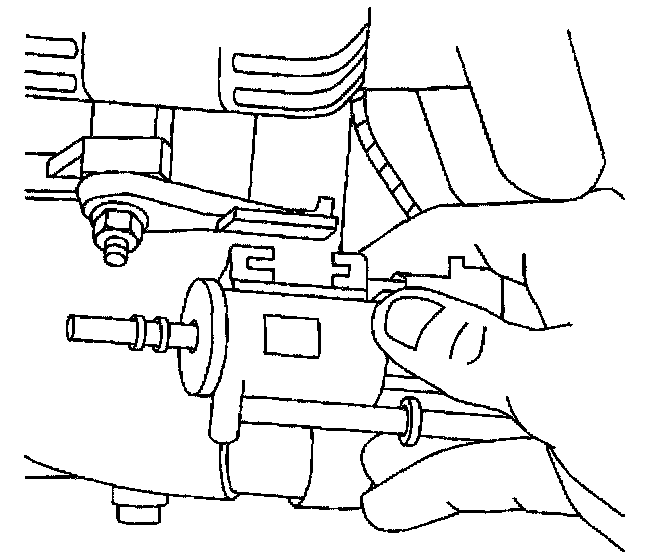

1. Remove the front purge pipe from the EVAP canister purge valve

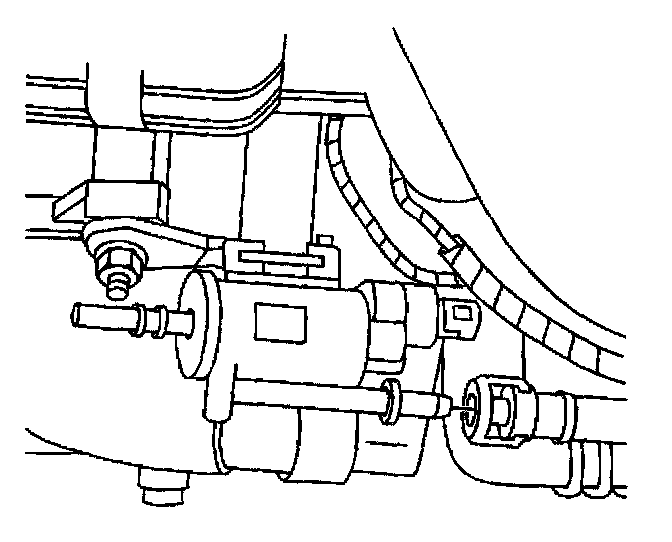

2. Remove the rear purge pipe from the EVAP canister purge valve.
NOTE: Refer to EVAP Carbon Particles Notice in Service Precautions.

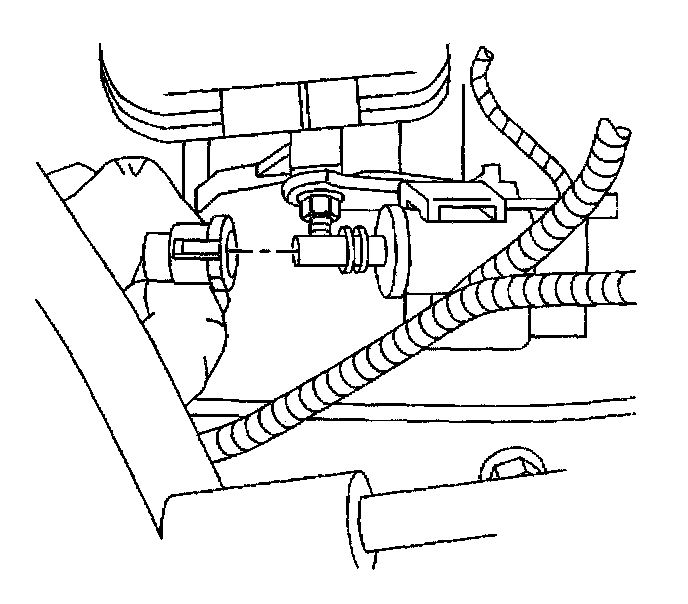

3. Disconnect the EVAP canister purge valve electrical connector.

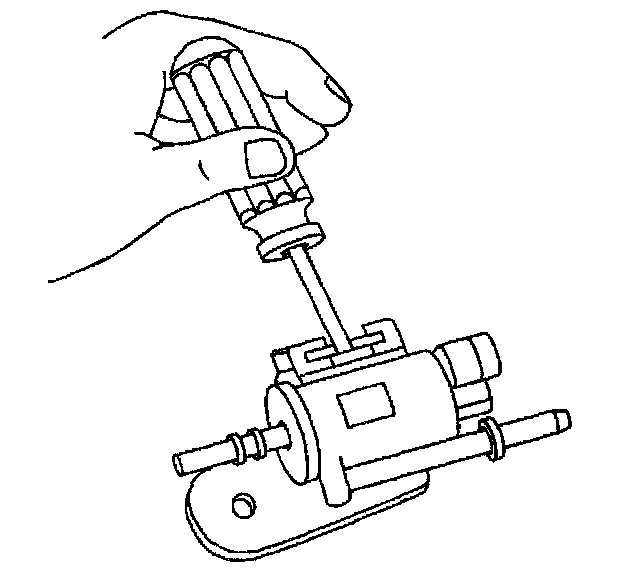

4. Insert a screwdriver between the EVAP canister purge valve and the mounting bracket in order to release the lock tab.
5. Remove the EVAP canister purge valve mounting bracket attaching nut, if replacing the bracket.
6. Remove the bracket.
INSTALLATION PROCEDURE
NOTE: Refer to Fastener Notice in Service Precautions.
1. Install the mounting bracket and the attaching nut for the EVAP canister purge valve.
Tighten
Tighten the nut to 8 N.m (71 lb in).
2. Slide the EVAP canister purge valve onto the mounting bracket. Make sure the lock tab locks the valve in place.
3. Connect the EVAP canister purge valve electrical connector.
4. Connect the rear purge pipe to the EVAP canister purge valve.
5. Connect the front purge pipe to the EVAP canister purge valve.
