Oil Filter: Service and Repair

Engine Oil and Oil Filter Replacement
Removal Procedure

Caution: Refer to Battery Disconnect Caution in Service Precautions.

1. Raise the vehicle. Refer to Vehicle Lifting.





2. Remove the oil pan drain plug.
3. Clean any metallic shavings from the magnetic drain plug. The plug is designed to isolate the metal particles from the engine oil and some accumulation is normal.

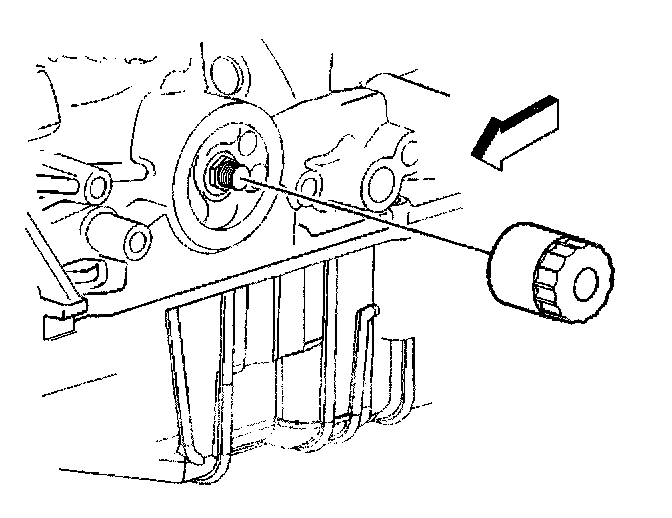

4. Remove the oil filter.

Installation Procedure
1. Install the oil filter.

Notice: Refer to Fastener Notice in Service Precautions.





2. Install the oil pan drain bolt.
Tighten the oil pan drain bolt to 26 Nm (19 ft. lbs.).
3. Lower the vehicle.
4. Fill the engine with oil to the appropriate mark.
5. Start engine and check for leaks.
6. Check the oil level.
