Defogger Outlet Duct Replacement - Side Window, RH

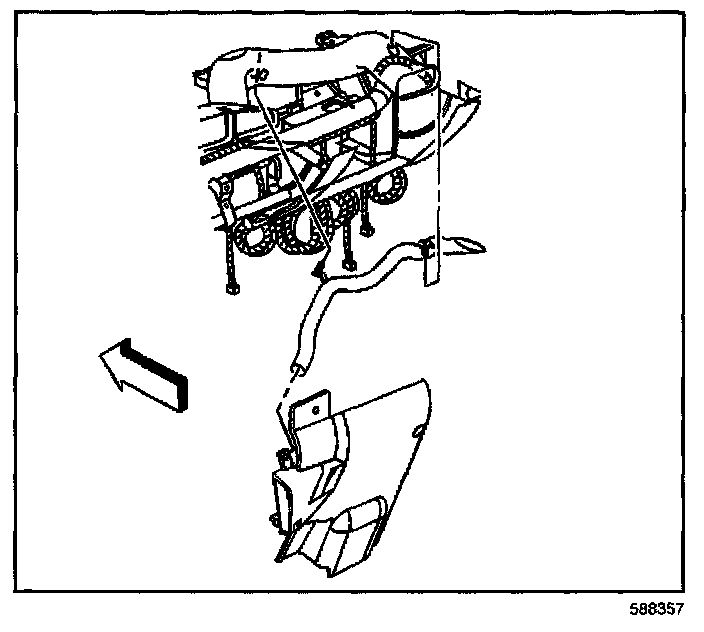

REMOVAL PROCEDURE




1. Remove the instrument panel (IP) carrier. Refer to Trim Pad Replacement - IP in Instrument Panel, Gauges, and Console.
2. Remove the right defogger outlet duct retainer from the air distribution duct.
3. Remove the right defogger outlet duct from the vehicle.

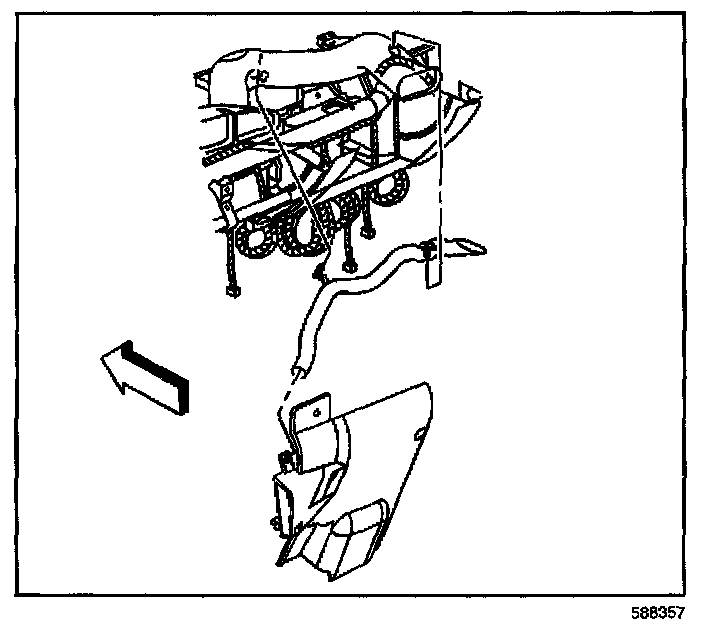

INSTALLATION PROCEDURE




1. Install the right defogger outlet duct.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the right defogger outlet duct retainer to the air distribution duct.
3. Install the instrument panel (IP) carrier. Refer to Trim Pad Replacement - IP in Instrument Panel, Gauges, and Console.
