Defogger Outlet Duct Replacement - Side Window, LH

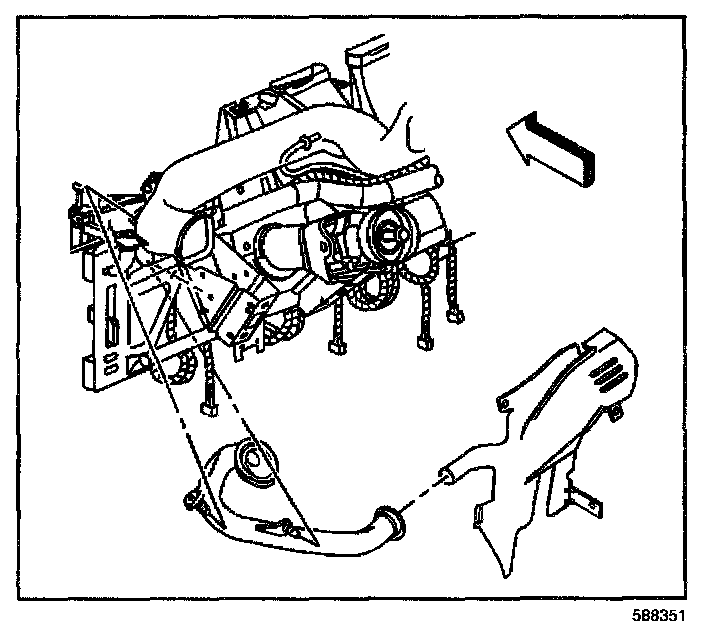

REMOVAL PROCEDURE




1. Remove the instrument panel (IP) carrier. Refer to Trim Pad Replacement - IP in Instrument Panel, Gauges, and Console.
2. Remove the left defogger outlet duct retainer from the air distribution duct.
3. Remove the left defogger outlet duct retainer from the HVAC module assembly.
4. Remove the left defogger outlet duct from the vehicle.

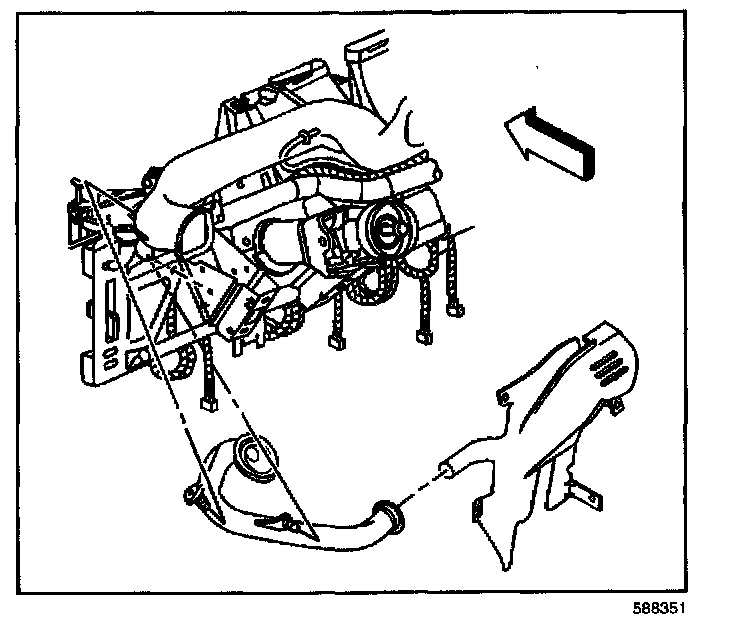

INSTALLATION PROCEDURE




1. Install the left defogger outlet duct over the air distribution duct.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the left defogger outlet duct retainer to the air distribution duct.
3. Install the left defogger outlet duct retainer to the HVAC module assembly.
4. Install the instrument panel (IP) carrier. Refer to Trim Pad Replacement - IP in Instrument Panel, Gauges, and Console.
