Brake Pressure Modulator Valve (BPMV) Replacement

BRAKE PRESSURE MODULATOR VALVE (BPMV) REPLACEMENT

Removal Procedure

Caution: For safety reasons, the brake pressure modulator valve assembly must not be repaired, the complete unit must be replaced. With the exception of the EBCM, no screws on the brake pressure modulator valve assembly may be loosened. If screws are loosened, It will not be possible to get the brake circuits leak-tight and personal injury may result.






1. Remove the battery. Service and Repair

2. Remove the battery tray. Service and Repair

Important: Note the locations of the brake pipes in order to aid in installation.

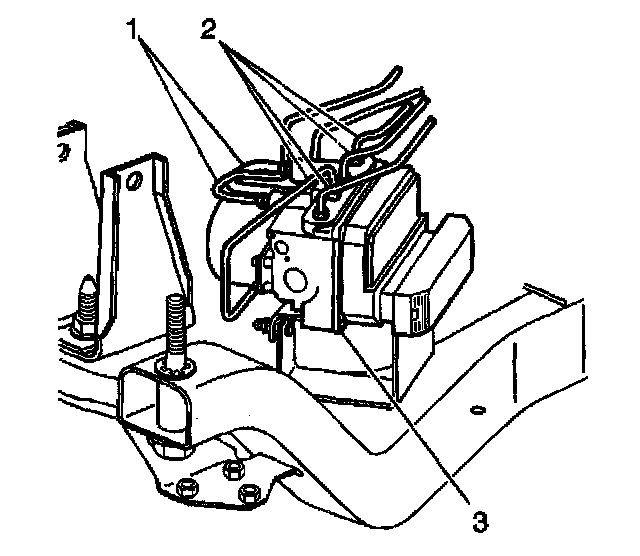

3. Disconnect the caliper and wheel cylinder brake pipes (2) from the BPMV (3). Cover the ends of the brake pipes to avoid dripping or contamination.

4. Disconnect the master cylinder brake pipes (1) from the BPMV (3). Cover the ends of the brake pipes to avoid dripping or contamination.

5. Raise and support the vehicle on a suitable hoist.

6. Remove the front engine splash shield.

7. Remove the left engine splash shield.






8. Disconnect the Connector Position Assurance (CPA) (2) from the EBCM connector.

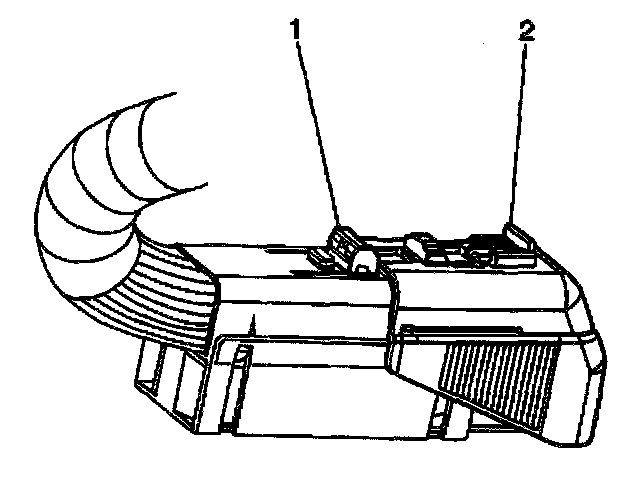

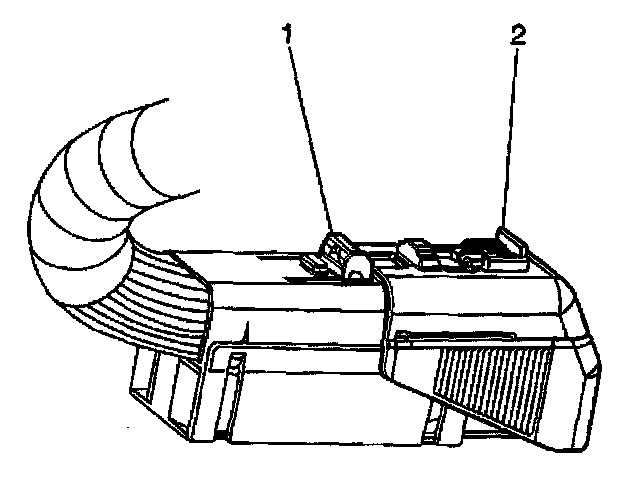

9. Push the lock tab (1) down and then move the sliding connector cover to the open position.






10. Disconnect the EBCM harness connector (2) from the EBCM (1).

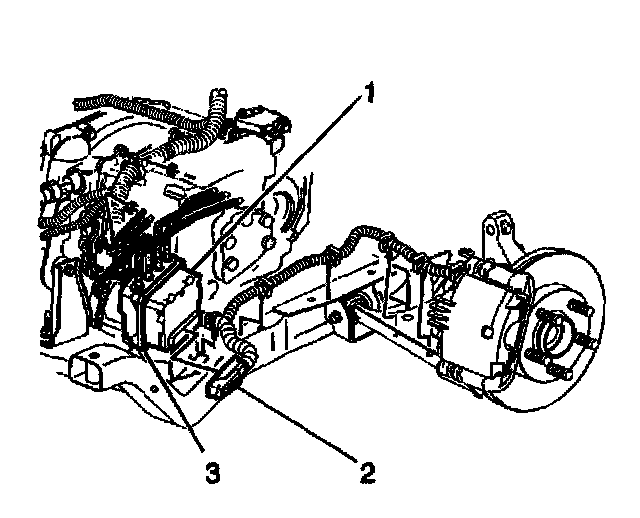

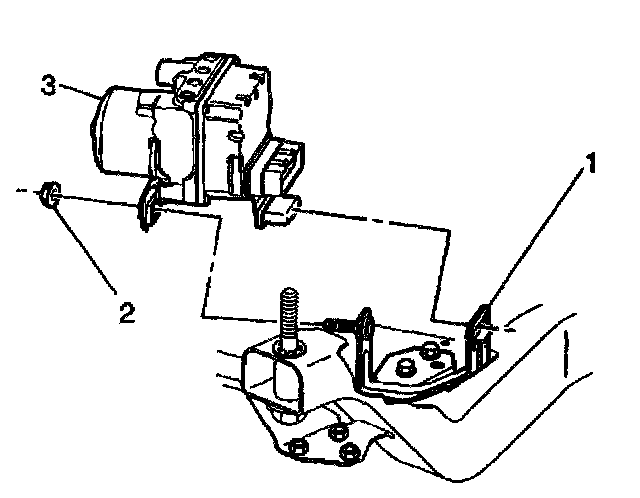

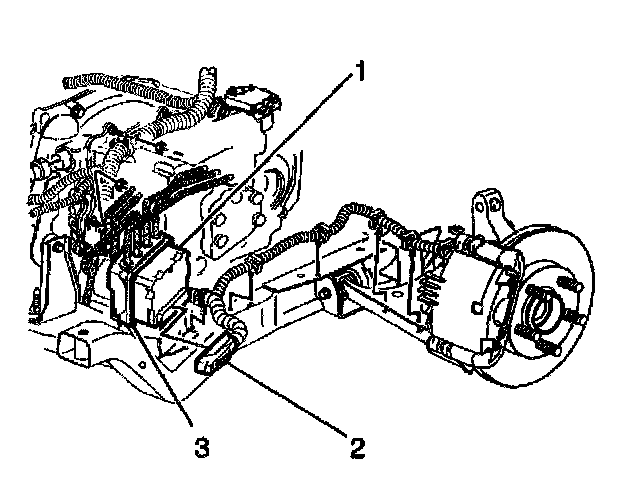

11. Remove the BPMV retaining nut (2).

12. Remove the EBCM/BPMV assembly (3) from the vehicle.

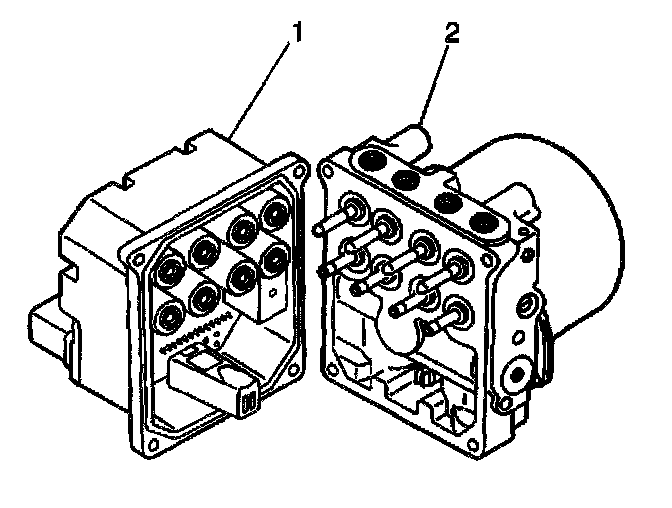

13. Remove the EBCM (1) from the BPMV (2).

Installation Procedure

Notice: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

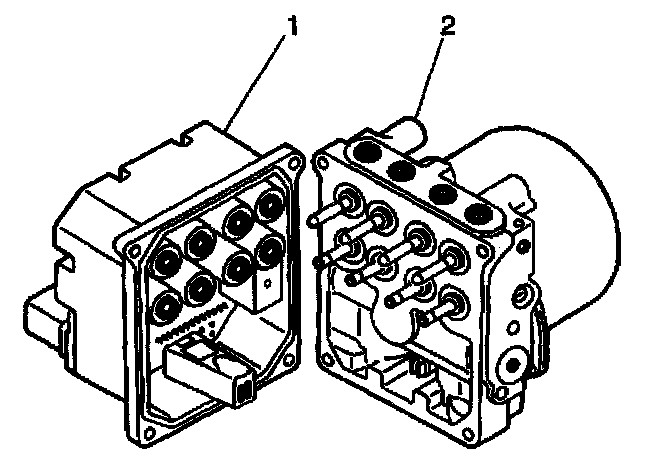

1. Install the EBCM (1) to the BPMV (2).
^ Tighten the four screws that connect the EBCM (1) to the BPMV (2) to 5 Nm (44 inch lbs.).






2. Install the EBCM/BPMV assembly (3) to the vehicle.

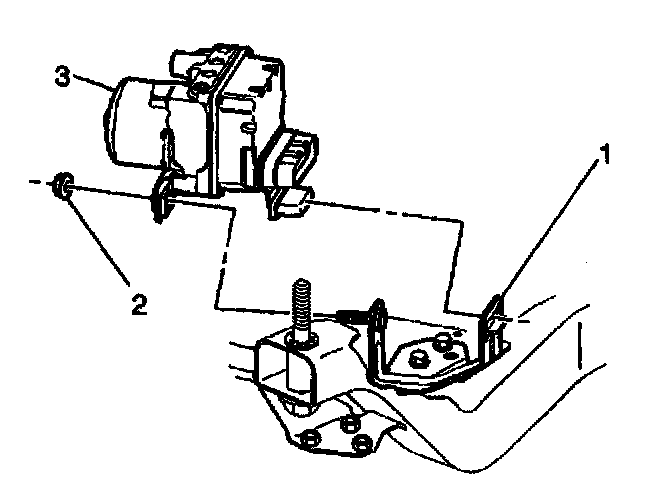

3. Install the BPMV retaining nut (2).
^ Tighten the retaining nut to 10 Nm (7 ft. lbs.).






4. Connect the EBCM harness connector (2) to the EBCM (1).






5. Push down the lock tab (1) and then move the sliding connector cover back in the home position to lock.

6. Insert the CPA (2) back into place.

7. Install the left engine splash shield.

8. Install the front engine splash shield.

9. Lower the vehicle.






Caution: Make sure brake pipes are correctly connected to brake pressure modulator valve. If brake pipes are switched by mistake, wheel lockup will occur and personal injury may result. The only ways this condition can be detected are by using a Scan Tool or by do log an Antilock stop.

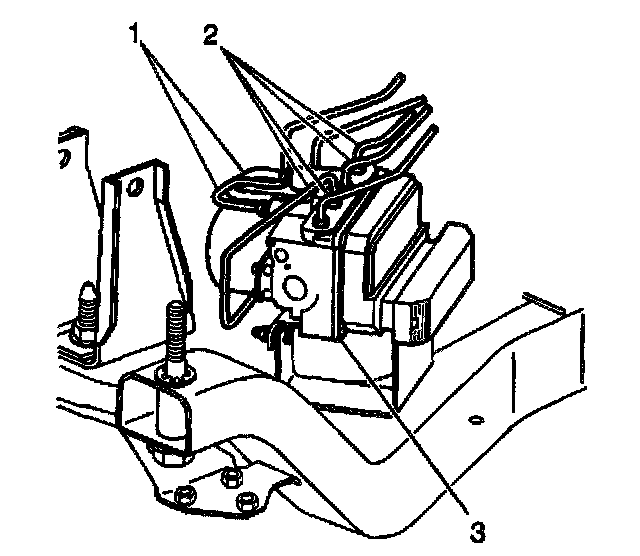

10. Connect the master cylinder brake pipes (1) to the BPMV (3).
^ Tighten the brake pipe fittings to 24 Nm (18 ft. lbs.).

11. Connect the caliper and wheel cylinder brake pipes (2) to the BPMV (3).
^ Tighten the brake pipe fittings to 24 Nm (18 ft. lbs.).

12. Install the battery tray. Service and Repair

13. Install the battery.

14. Perform the Diagnostic System Check - ABS. Diagnostic System Check
