Transmission Replacement
Removal Procedure^ Tools Required
- J 35944-A Oil Cooler and Line Flusher
- J 38778 Door Trim Pad and Garnish Clip Remover
- J 43442 Flywheel Holder
1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure in Starting and Charging.
2. Remove the throttle body air inlet duct. Refer to Air Cleaner Intake Duct Replacement in Powertrain Management.

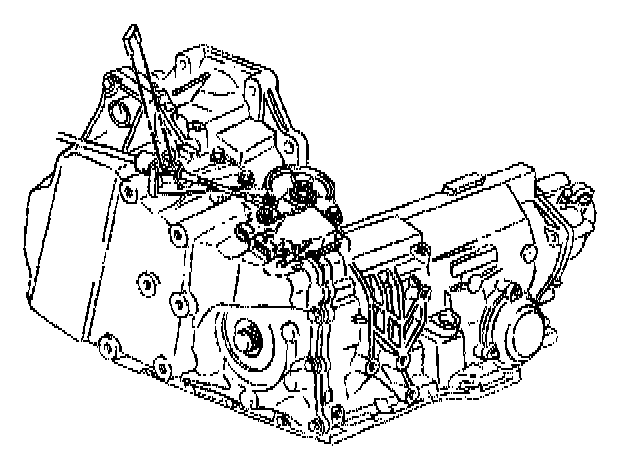

3. Disconnect the electrical connectors from the transaxle. Refer to Harness Routing Views in Starting and Charging.

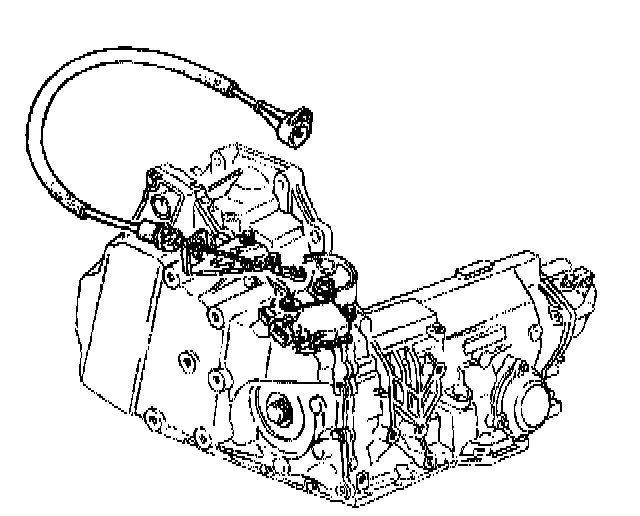

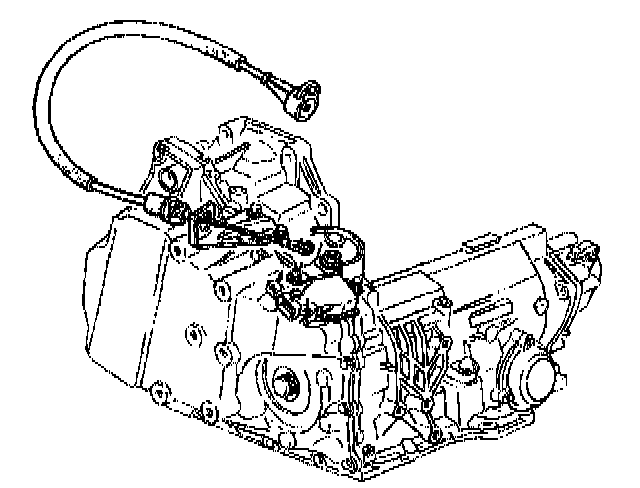

4. Remove the transaxle range selector cable retainer from the cable.
5. Disconnect the transaxle range selector cable from the transaxle.

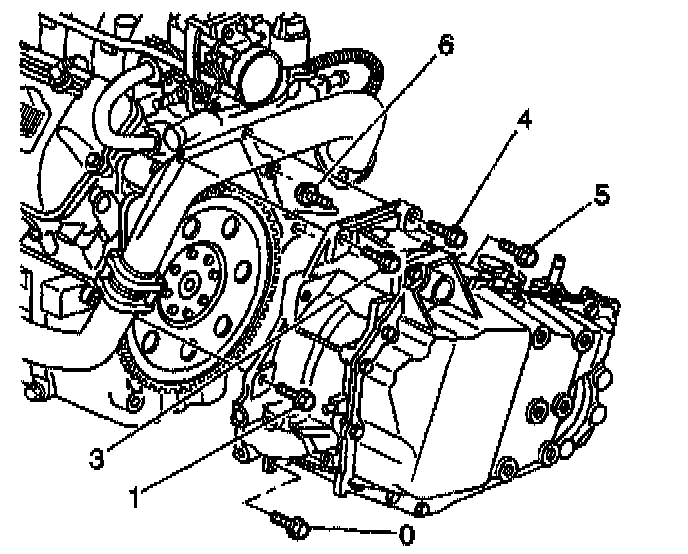

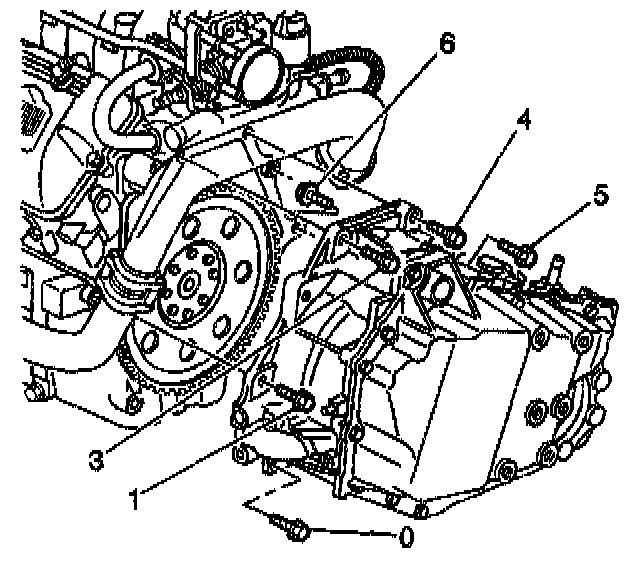

Important: The transaxle/engine bolts must be returned to their original position. The bolt installed in position number (5) is two millimeters shorter then the other transaxle/engine bolts and requires the use of thread sealant.The bolt installed in position number (3) has a special pilot point.
6. Remove the upper transaxle bolts.
7. Remove the wiring harness grounds.
8. Install the engine support fixture. Refer to Engine Support Fixture in Engine.
9. Raise and support the vehicle. Refer to Vehicle Lifting.
10. Remove the front wheels. Refer to Tire and Wheel Removal and Installation in Steering and Suspension.

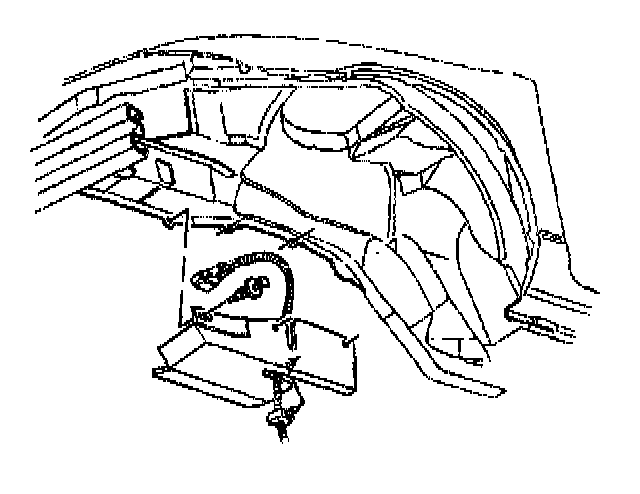

11. Use the J 38778 in order to remove the push-in retainers holding the ABS lead to the splash shields.
12. Use the J 38778 in order to remove the push-in retainers from the splash shield.
13. Remove both the engine splash shields from the vehicle.
14. Remove the frame from the vehicle. Refer to Frame Replacement in Frame and Underbody.
15. Remove the starter motor. Refer to Starter Motor Replacement in Starting and Charging.

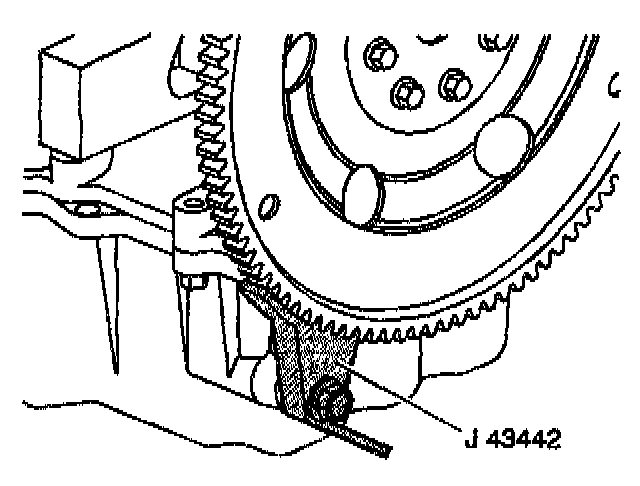

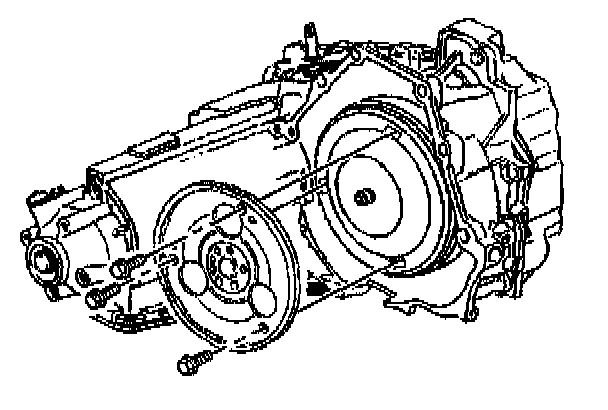

16. Use the J 43442 in order to gain access to the torque converter bolts and prevent the flywheel from turning.
17. Remove the torque converter bolts.
18. Disconnect the transaxle oil cooler pipes from the transaxle. Refer to Automatic Transmission Oil Cooler Hose Replacement.
Important: Position and secure the wheel drive shafts out of the way.
19. Disconnect the wheel drive shafts from the transaxle. Refer to Wheel Drive Shafts Replacement (Left) and Wheel Drive Shafts Replacement (Right).
20. Disconnect the vehicle speed sensor electrical connector. Refer to Vehicle Speed Sensor Replacement.
Important: Ensure the transmission jack is properly secured to the transaxle.
21. Position a transmission jack under the transaxle and secure the transmission jack to the transaxle.
22. Remove the transaxle brace. Refer to Automatic Transmission Brace Replacement.
Important: The transaxle/engine bolts must be returned to their original position. The bolt installed in position number (5) is two millimeters shorter then the other transaxle/engine bolts and requires the use of thread sealant.The bolt installed in position number (3) has a special pilot point.
23. Remove the lower transaxle bolts.
24. Remove the transaxle from the vehicle.
Important: Use the J 35944-A or equivalent to flush the following components whenever the transaxle is removed for overhaul or whenever the torque converter pump or the case is replaced:
25. Flush the transaxle oil cooler pipes and the transaxle oil cooler. Refer to Automatic Transmission Oil Cooler Flushing.
26. Transfer all necessary parts as needed.
Installation Procedure
Important: Ensure the transaxle is secured properly to the transmission jack.
1. Position the transaxle onto a transmission jack and secure the transaxle to the transmission jack.
2. Install the transaxle into the vehicle.
Notice: Refer to Fastener Notice in Service Precautions.

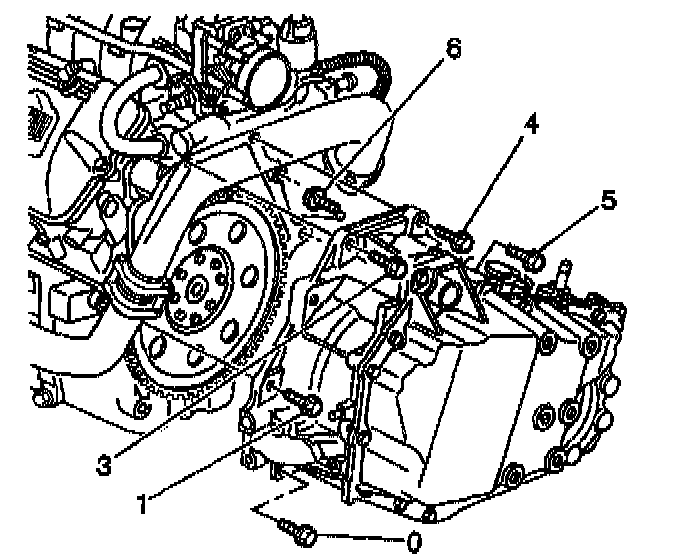

Important: The transaxle/engine bolts must be returned to their original position. The bolt installed in position number 5 is two millimeters shorter then the other transaxle/engine bolts and requires the use of thread sealant. The bolt installed in position number (3) has a special pilot point.

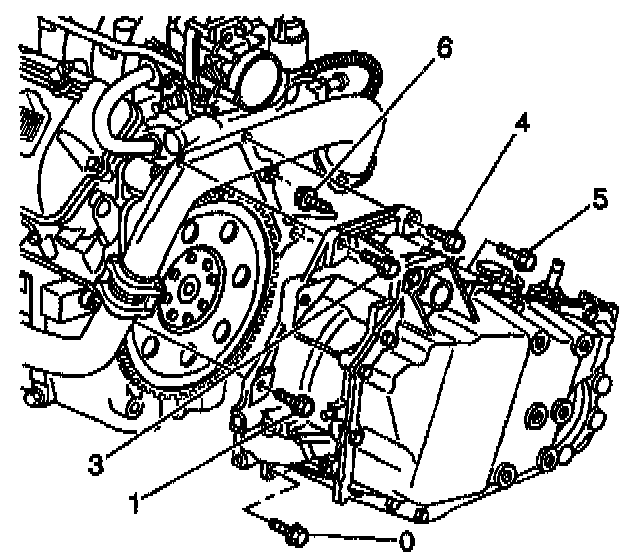

3. Install the lower transaxle bolts into positions (0,1,3,4, 5 and 6).
^ Tighten the lower transaxle to engine bolts at position (0,11) and engine to transaxle bolt at position (6) to 75 Nm(55 ft. lbs.).
^ Tighten the lower transaxle to engine bolt at position (5) to 50 Nm (36 ft. lbs.).
4. Install the transaxle brace. Refer to Automatic Transmission Brace Replacement.

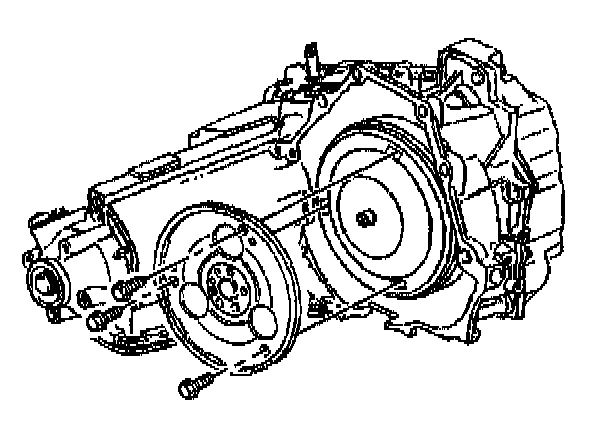

5. Use the J 43442 in order to gain access to install the torque converter bolts and prevent the flywheel from turning.
6. Install the torque converter bolts.
^ Tighten the torque converter bolts to 63 Nm (46 ft. lbs.).
7. Connect the wheel drive shafts to the transaxle. Refer to Wheel Drive Shafts Replacement (Left) and Wheel Drive Shafts Replacement (Right).
8. Connect the transaxle oil cooler pipes to the transaxle. Refer to Automatic Transmission Oil Cooler Hose Replacement.
9. Install the starter motor. Refer to Starter Motor Replacement in Starting and Charging.
10. Connect the vehicle speed sensor electrical connector. Refer to Vehicle Speed Sensor Replacement.
11. Install the push-in retainers holding the ABS lead to the engine splash shield.
12. Install the push-in retainers holding the engine splash shields.
13. Install the front tires and wheels. Refer to Tire and Wheel Removal and Installation in Steering and Suspension.
14. Lower the vehicle.
15. Install the torque converter bolts.
^ Tighten the torque converter bolts to 63 Nm (46 ft. lbs.).
16. Lower the vehicle.
17. Remove the engine support fixture. Refer to Engine Support Fixture.
Important: The transaxle/engine bolts must be returned to their original position. The bolt installed in position number (5) is two millimeters shorter then the other transaxle/engine bolts and requires the use of thread sealant.The bolt installed in position number (3) has a special pilot point.
18. Install the upper transaxle bolts into positions (3) and (4).
^ Tighten the upper transaxle bolts at positions (3) and (4) to 75 Nm (55 ft. lbs.).
19. Install the transaxle wiring grounds to the transaxle.

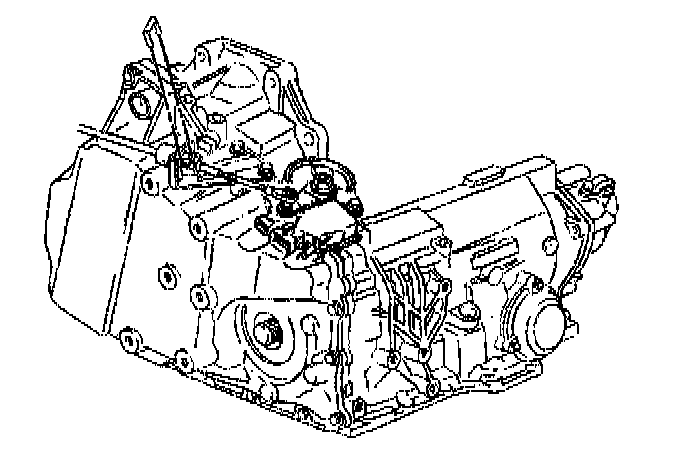

20. Install the wiring harness connectors to the transaxle. Refer to Hamess Routing Views in Starting and Charging.
21. Install the automatic transaxle range selector cable to the transaxle.
22. Install the automatic transaxle range selector cable retainer to the cable.
23. Install the throttle body air inlet duct. Refer to Air Cleaner Intake Duct Replacement in Powertrain Management.
24. Connect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure in Starting and Charging.
Notice: Do NOT overfill the transaxle. The overfilling of the transaxle causes foaming, loss of fluid, shift complaints, and possible damage to the transaxle.
25. Adjust the fluid level. Refer to Transmission Fluid Checking Procedure.
26. Inspect for fluid leaks. Refer to Fluid Leak Diagnosis.
27. Inspect for proper completion of the repairs.
28. Inspect the front end alignment. Refer to Measuring Wheel Alignment in Steering and Suspension.
