Rear

Removal Procedure
1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Remove the Tires and Wheels. Refer to Tire and Wheel Removal and Installation in Wheels, Tires and Alignment.

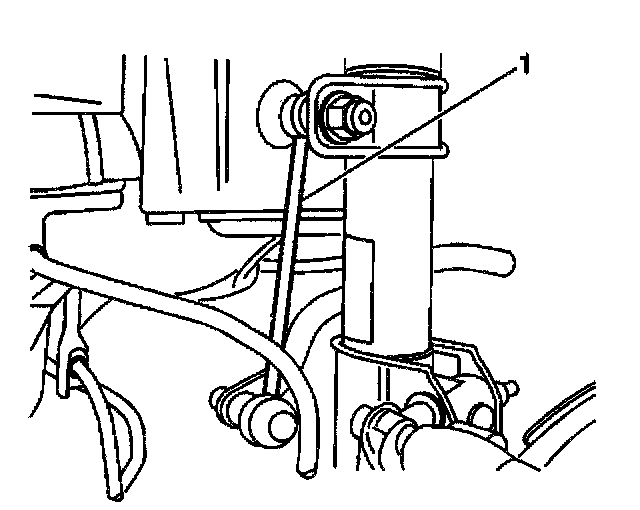

3. Disconnect the rear stabilizer shaft link (1) from the strut.
4. Remove the rear stabilizer shaft link nut.

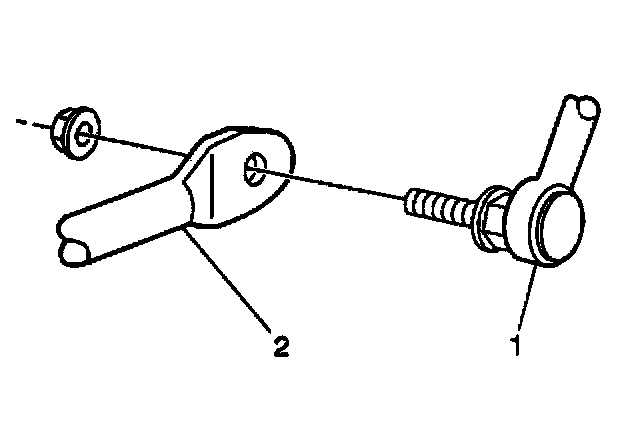

5. Remove the stabilizer shaft link (1) from the stabilizer shaft (2).

Installation Procedure

Notice: Refer to Fastener Notice in Service Precautions.





1. Install the stabilizer shaft link (1) to the stabilizer shaft (2).
Tighten the stabilizer shaft link nut to 35 Nm (26 ft. lbs.).





2. Connect the stabilizer shaft link (1) to the strut.
Tighten the stabilizer shaft link to strut bolt/screw to 35 Nm (26 ft. lbs.).
3. Install the Tires and Wheels. Refer to Tire and Wheel Removal and Installation in Wheels, Tires and Alignment.
4. Lower the vehicle.
