Turn Signal & Multifunction Switch - Disassemble

Disassembly Procedure
1. Remove the upper and lower shrouds. Refer to Steering Column Trim Covers - Disassemble - Off Vehicle.

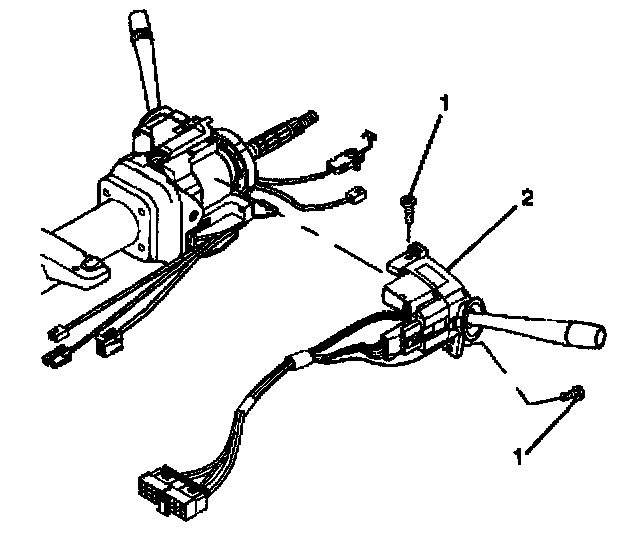

2. Remove the wire harness straps (2) from the wire harness assembly. Remove 1 wire harness strap (2) from the upper tilt head assembly (1).





3. Pop the wire harness assembly (1) from the wire harness strap (2).





4. Remove the 2 tapping screws (1). Remove the turn signal and multifunction switch assembly (2).
