Steering Column Trim Covers - Disassemble

Disassembly Procedure
1. Remove the tilt lever assembly.

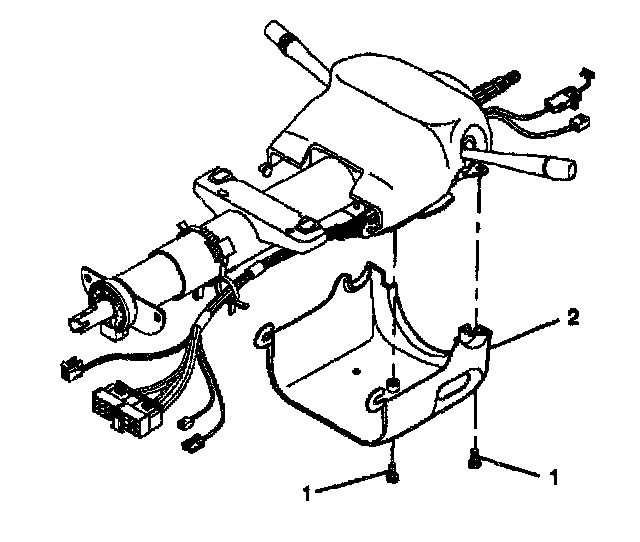

2. Remove the 2 pan head tapping screws (1) from the lower shroud (2).
3. Remove the lower shroud (2).

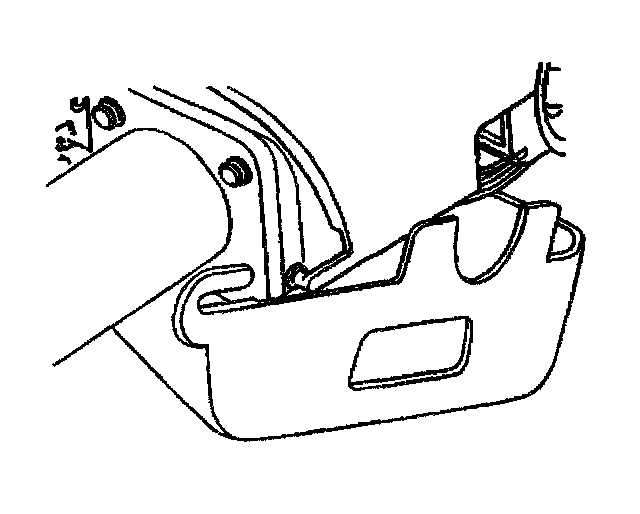

4. Unlock the upper and lower shroud.

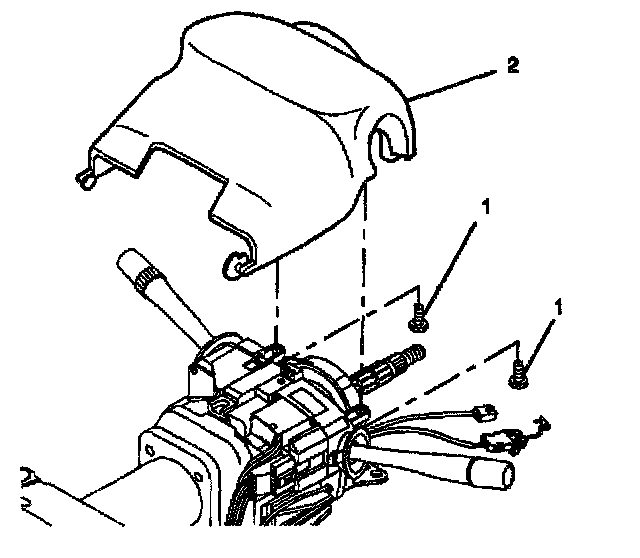

5. Remove the 2 TORX(R) head screws (1) from the upper shroud (2).
6. Remove the upper shroud (2).
