Left

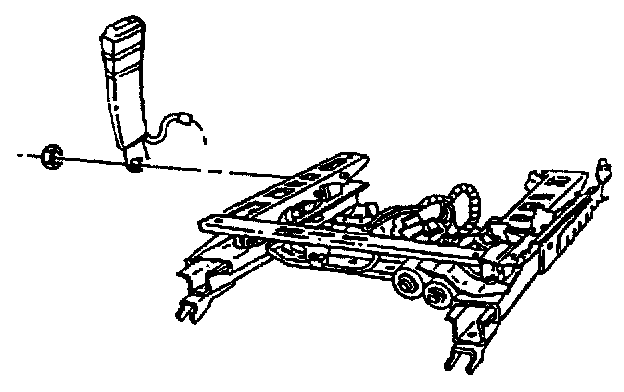

REMOVAL PROCEDURE
1. Position the drivers seat to the forward position.
2. Remove the seat belt buckle nut.
3. Disconnect the electrical connector.
4. Remove the seat belt buckle from the drivers seat.

INSTALLATION PROCEDURE
1. Install the seat belt buckle to the drivers seat.
2. Connect the electrical connector.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the seat belt buckle nut.

Tighten
Tighten the seat belt buckle nut to 42 N.m(31 lb ft).

4. Position the drivers seat to the original position.
