Clockspring Assembly / Spiral Cable: Service and Repair

REMOVAL PROCEDURE




1. Disable the SIR system. Refer to Disabling the SIR System.




2. Remove the upper and lower shrouds.
3. Remove the inflatable restraint steering wheel module.
4. Remove the steering wheel.
5. Remove the wire harness straps from the steering wheel column wire harness.

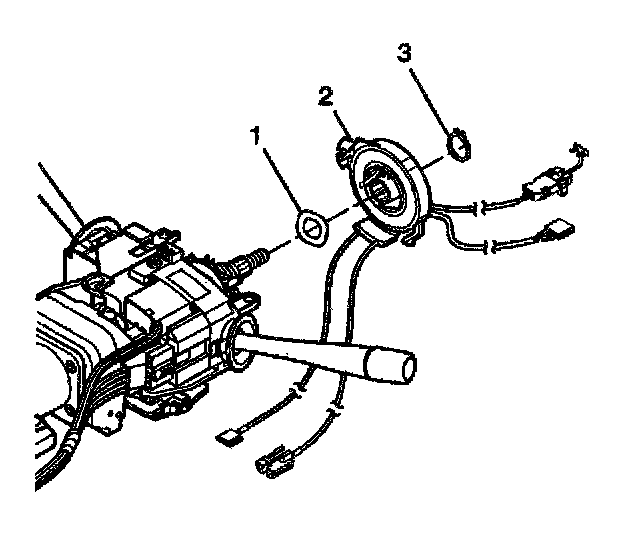

6. Remove the retaining ring (3).
7. Remove the inflatable restraint steering wheel module coil from the steering shaft (2).

INSTALLATION PROCEDURE



1. Install the inflatable restraint steering wheel module coil to the steering shaft (2).
2. Install the retaining ring (3).
3. Center the inflatable restraint steering wheel module coil. Refer to Inflatable Restraint Coil Centering - Off Vehicle (Column Shift And Floor Shift) in Steering Wheel and Column - Tilt.

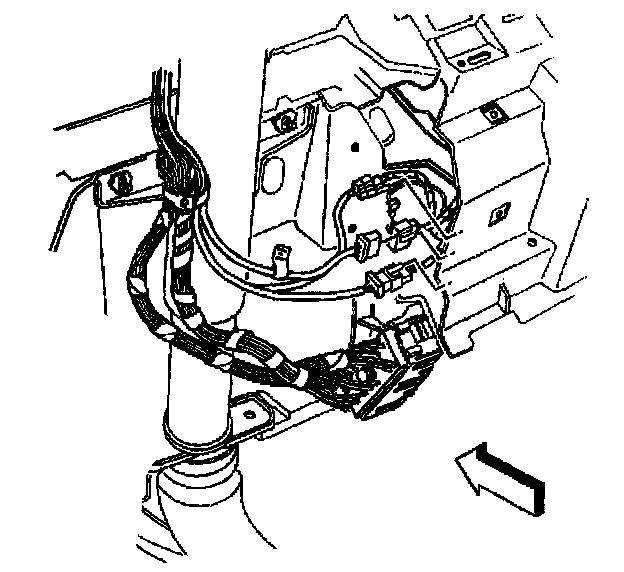

4. Route the lower coil wire harness along the steering column jacket.
5. Install the wire harness straps to the steering column wire harness.
6. Install the steering wheel.
7. Install the inflatable restraint steering wheel module.
8. Install the upper and lower shrouds.




9. Enable the SIR System. Refer to Enabling the SIR System.
