Infl Rst Steering Wheel Module Replacement

REMOVAL PROCEDURE




1. Disable the SIR system. Refer to Disabling the SIR System.

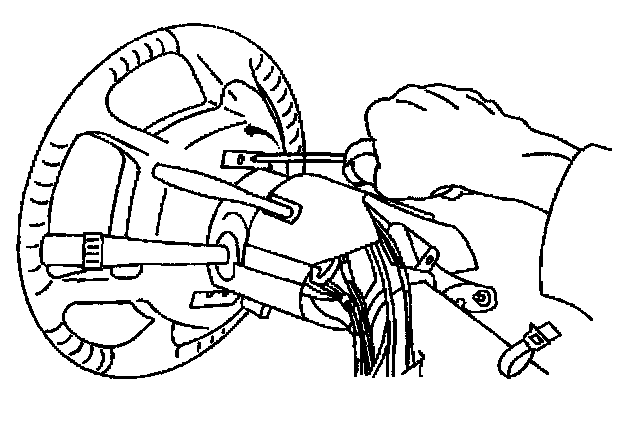

2. Insert a flat-bladed screwdriver into one of the four openings in the back of the steering wheel.
3. Turn the screwdriver counterclockwise to disengage the spring from the slot in the inflator module.
4. Repeat the same steps for the other holes.

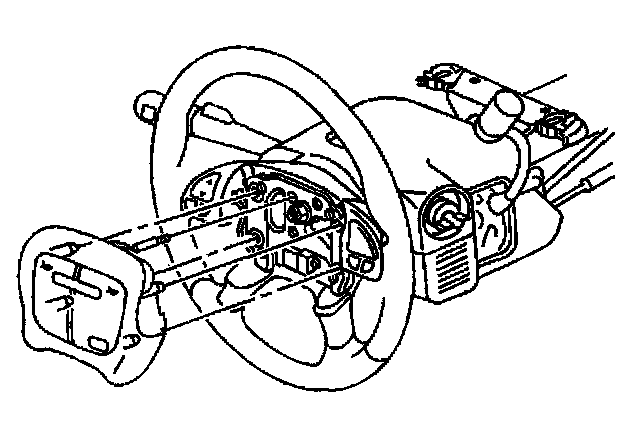

5. Remove the inflator module from the steering wheel.

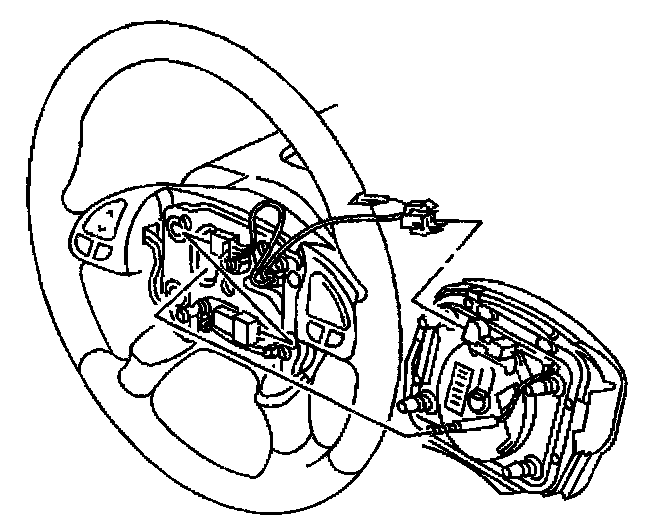

6. Pull the driver inflator module gently away from the steering wheel.




7. Remove the Connector Position Assurance (CPA).
8. Disconnect the electrical connector from the back of the inflator module.
9. Disconnect the horn grounded lead from the steering column.
10. Rotate the horn contact lead counterclockwise 1/4 turn.
11. Remove the horn contact lead from the steering column cam tower.

INSTALLATION PROCEDURE




1. Install the horn contact lead to the steering column cam tower.
2. Rotate the horn contact lead clockwise 1/4 turn.
3. Connect the horn grounded lead to the steering column.
4. Connect the electrical connector to the back of the inflator module.
5. Install the connector position assurance (CPA).




6. Install the inflator module to the steering wheel by pushing on both the right and left sides of the inflator module until the retaining springs engage.




7. Enable the SIR system. Refer to Enabling the SIR System.
