Accelerator Controls Cable Replacement

REMOVAL PROCEDURE

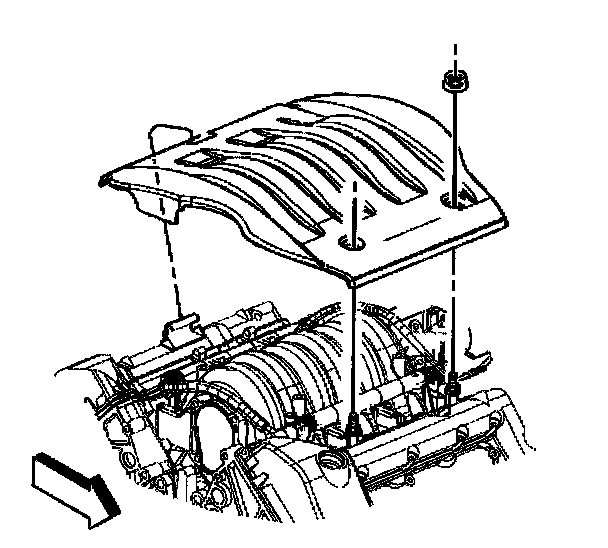

1. Remove the injector sight shield.




2. Remove the left instrument panel insulator.

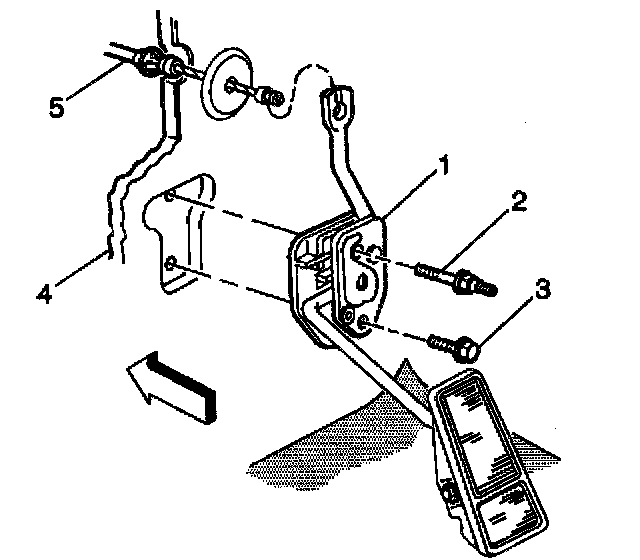

3. Remove the accelerator controls cable (5) from the accelerator controls pedal (1).

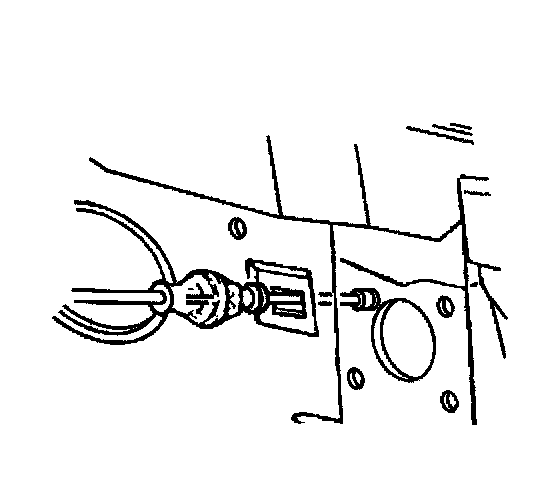

4. Squeeze the cover tangs on the accelerator controls cable.
5. Push the accelerator controls cable through the bulkhead.

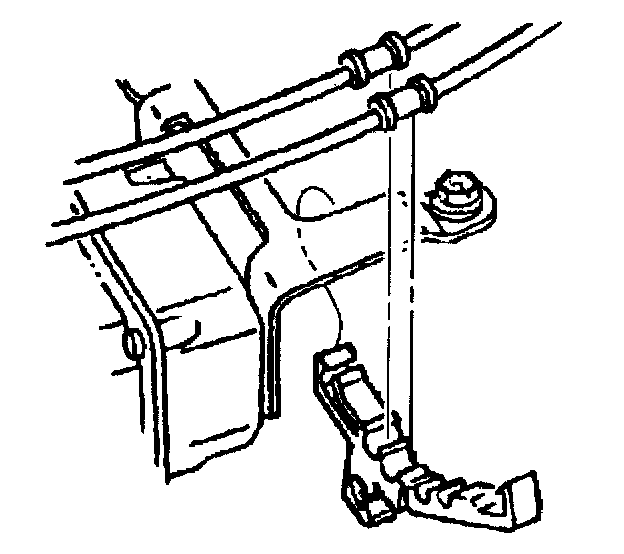

6. Remove the accelerator controls cable from the retaining clips.




7. (Graphic Shown Similar)

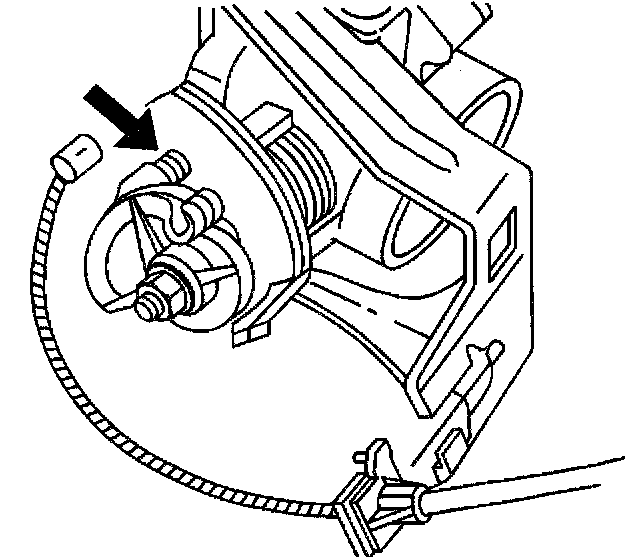

Remove the accelerator controls cable from the throttle body lever and bracket.



INSTALLATION PROCEDURE

NOTE: Do not route flexible components (hoses, wires, conduits, etc.) within 50 mm (2 in) of moving parts unless flexible components can be securely fastened. This is necessary in order to prevent possible interference and damage to the component.

IMPORTANT: The throttle should operate freely and without binding between full closed and wide open throttle.




1. Install the accelerator controls cable through the bulkhead, it will snap in place.

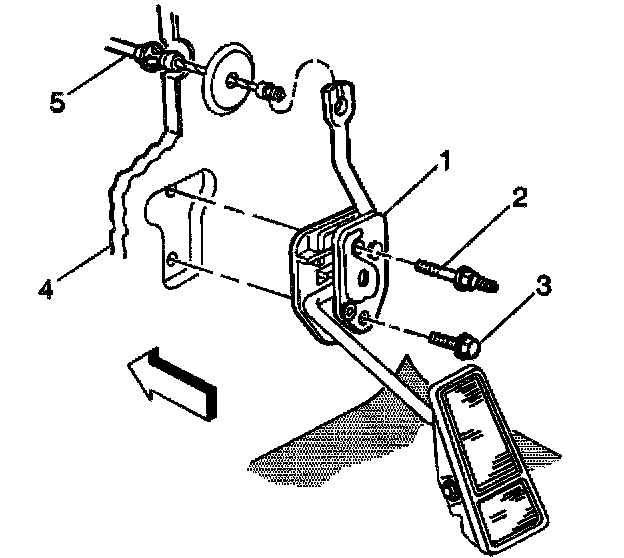

2. place the accelerator controls cable (5) through the slot in the accelerator controls pedal lever (1).
3. Seat the snap retainer in the accelerator controls pedal lever.




4. (Graphic Shown Similar)

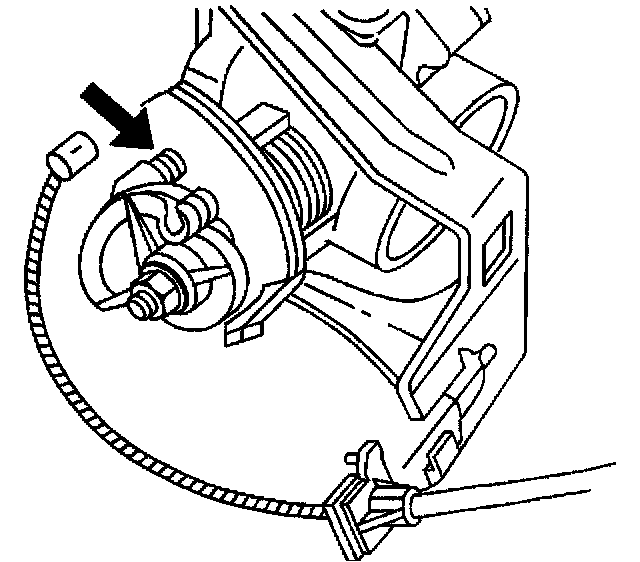

Connect the accelerator controls cable to the throttle body lever and bracket.




5. Snap the accelerator controls cable into the retaining clips.
6. Check for the correct throttle opening and closing positions by operating the accelerator controls pedal. Also check for correct carpet fit under the accelerator controls pedal.
7. Install the left instrument panel insulator.

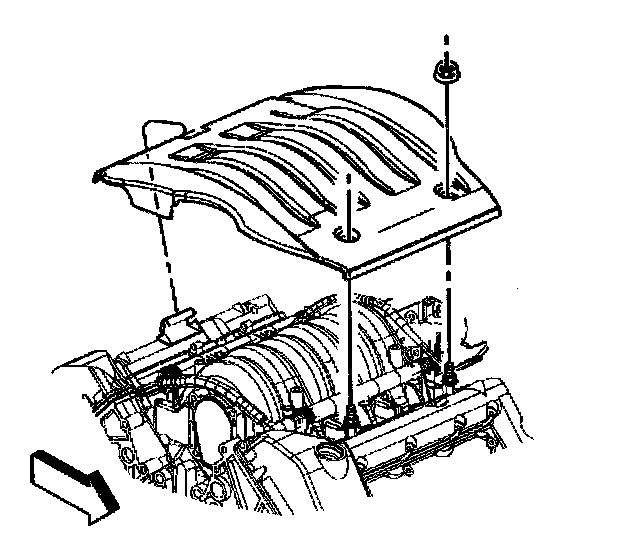

8. Install the injector sight shield.
