Throttle Body Assembly Replacement

REMOVAL PROCEDURE

NOTE: Do Not use solvent of any type when cleaning the gasket surfaces on the intake manifold and the throttle body assembly, as damage to the gasket surfaces and throttle body assembly may result.

Use care in cleaning the gasket surfaces on the intake manifold and the throttle body assembly, as sharp tools may damage the gasket surfaces.




1. Turn OFF the ignition.

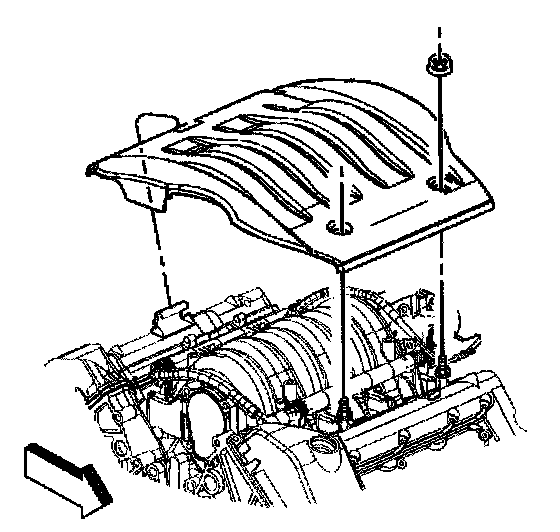

2. Remove the fuel injector sight shield.




3. Drain the radiator coolant. Refer to Draining and Filling Cooling System

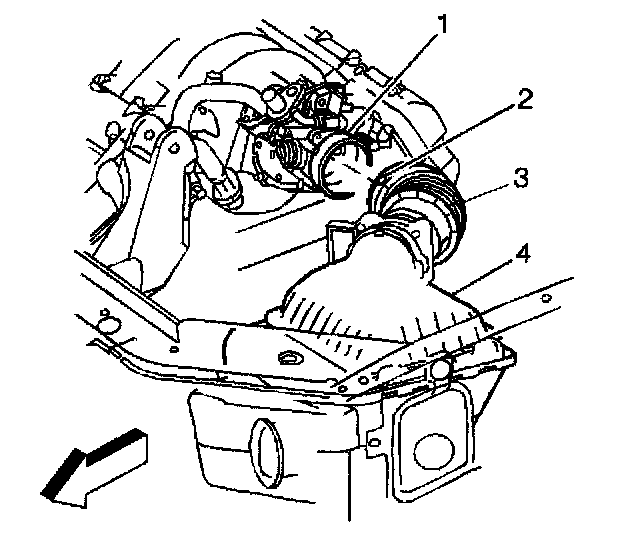

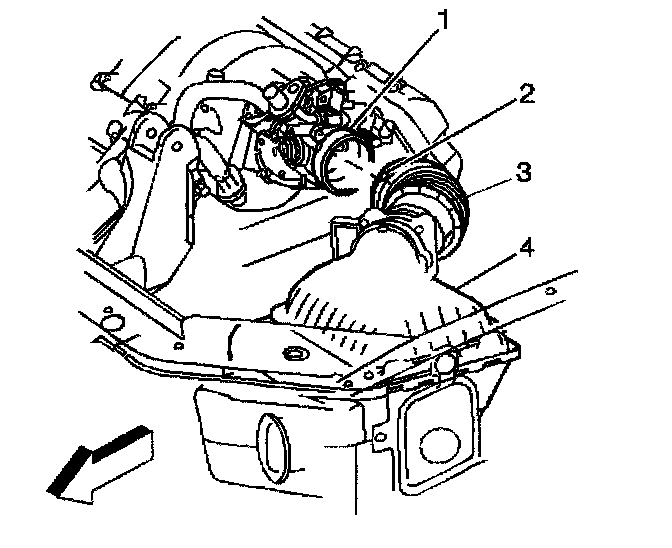

4. Remove the air cleaner intake duct (3).

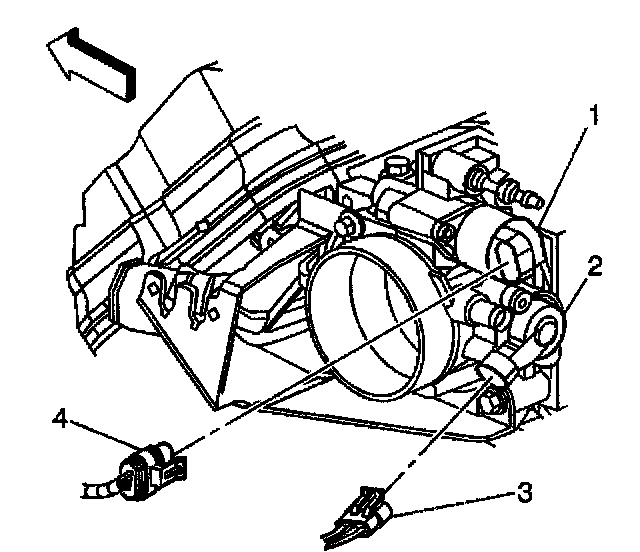

5. Disconnect the IAC valve sensor electrical connector (4).
6. Disconnect the TP sensor electrical connector (3).

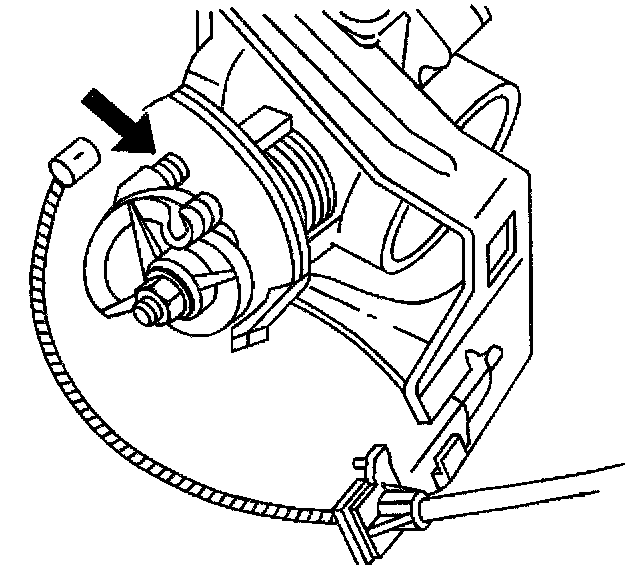

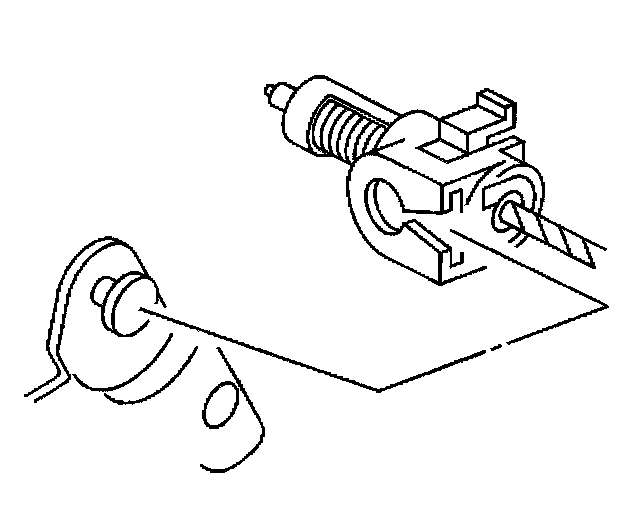

7. Disconnect the cruise control cable from the throttle body lever.




8. (Graphic shown similar)

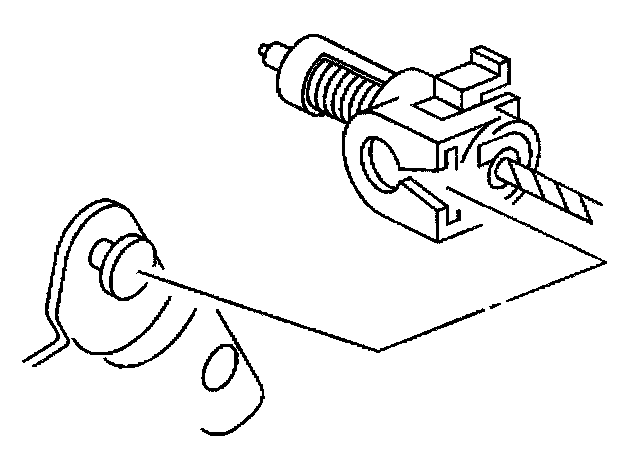

Disconnect the accelerator control cable from the throttle body lever.

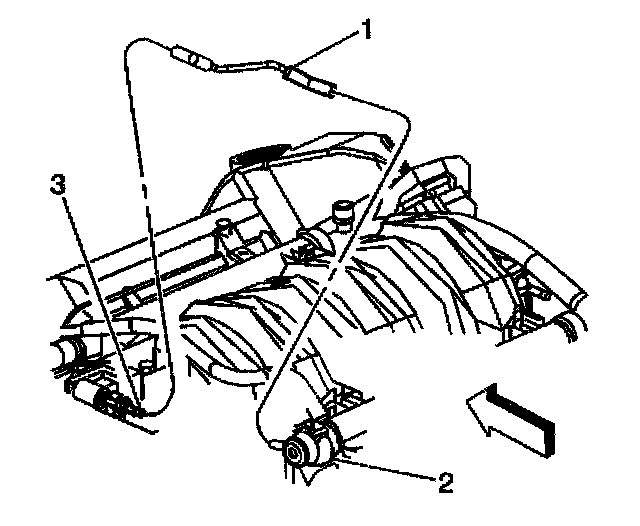

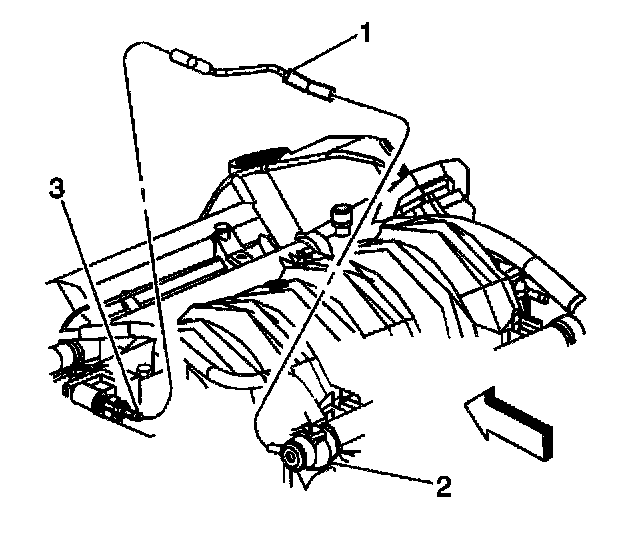

9. Disconnect the fuel pressure regulator vacuum hose (1).

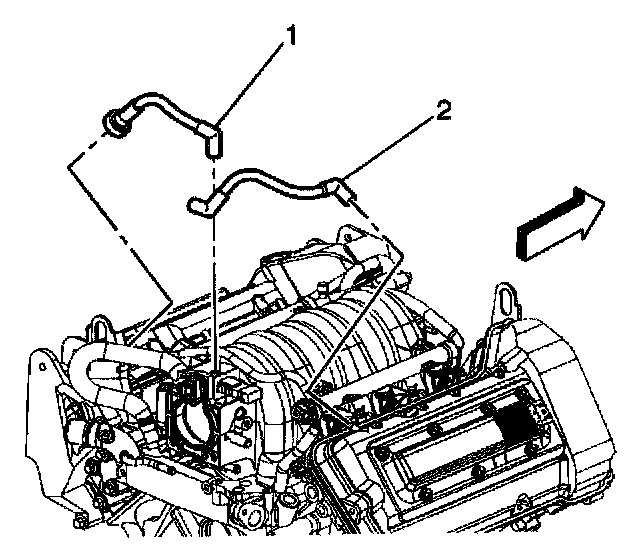

10. Disconnect the PCV valve hose (1).
11. Disconnect the throttle body vacuum port hose (2).




12. Disconnect the throttle body coolant hoses.
13. Remove the accelerator controls cable bracket, leaving the accelerator and cruse cables connected.

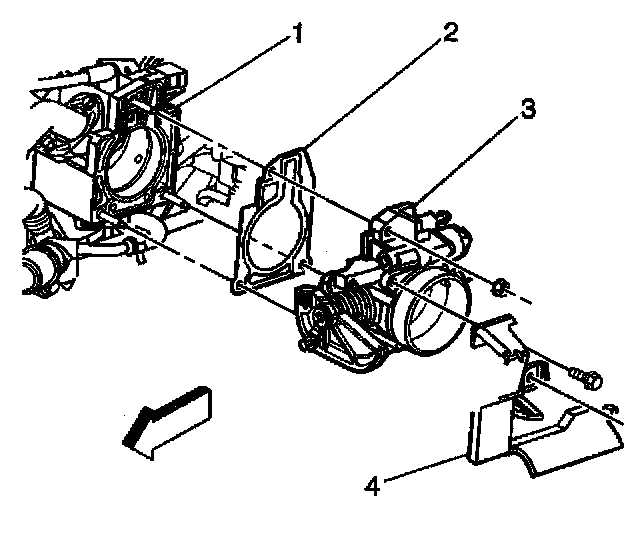

14. Remove the upper nut holding the throttle body to the intake manifold (1).
15. Remove the throttle body assembly (3).
16. Clean the gasket surface on the intake manifold (1) and the throttle body assembly.

INSTALLATION PROCEDURE

IMPORTANT: The throttle should operate freely without binding between full closed and wide open throttle.




1. Install a new gasket (2), and new studs if necessary.
2. Install the throttle body assembly (3).
3. Finger start the top nut.
4. Connect the throttle body coolant hoses.
5. Position the accelerator controls bracket (4).

NOTE: Refer to Fastener Notice in Service Precautions.

6. Finger start the accelerator controls bracket retaining nuts and bolt.

Tighten
Tighten the three throttle body retaining nuts to 10 N.m (88 lb in).
Tighten the accelerator bracket retaining bolt to 13 N.m (115 lb in).




7. Connect the throttle body vacuum port hose (2).
8. Connect the PCV valve hose (1).




9. Connect the fuel pressure regulator vacuum hose (1).




10. (Graphic shown similar)
Connect the accelerator controls cable to the throttle body lever.




11. Connect the cruise control cable to the throttle body lever.

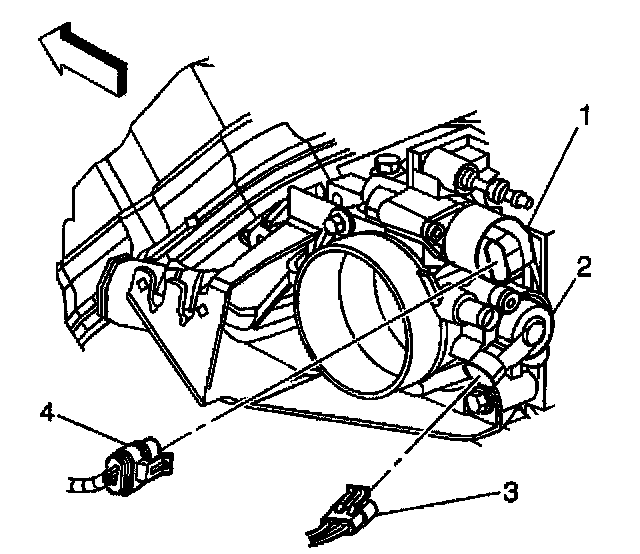

12. Connect the IAC valve sensor electrical connector (4).
13. Install the TP sensor electrical connector (3).




14. Install the air intake duct (3).
15. Refill the radiator to replace the lost coolant. Refer to Draining and Filling Cooling System.

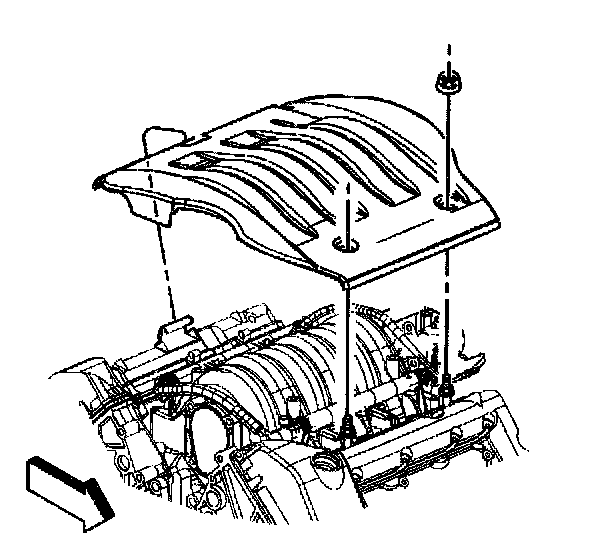

16. Install the fuel injector sight shield.
