Accelerator Pedal: Service and Repair

REMOVAL PROCEDURE

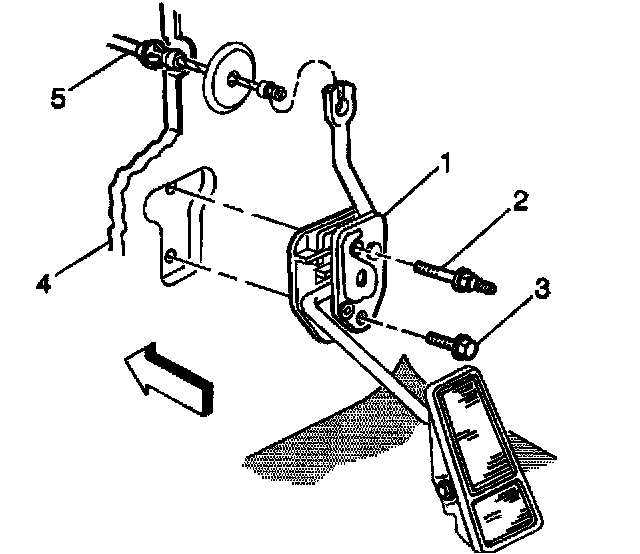

1. Remove the left instrument panel insulator.
2. Disconnect the accelerator controls cable (5) from accelerator controls pedal (1).
3. Remove the bolts (3) and the studs (2) that retain the accelerator controls pedal to the bulkhead (4).
4. Remove the accelerator controls pedal.


INSTALLATION PROCEDURE

IMPORTANT: The throttle should operate freely and without binding between full closed and wide open throttle.

1. Install the accelerator controls pedal (1) to the bulkhead (4).

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the accelerator controls pedal bolts (3) and the studs (2).

Tighten
Tighten the pedal bolts and studs to 3.0 N.m (27 lb in).

3. Connect the accelerator controls cable (5) to the accelerator controls pedal (1).
4. Check for complete throttle opening and closing positions by operating the accelerator pedal. Also check for a correct carpet fit under the accelerator controls pedal.
5. Install the left instrument panel insulator.
