AIR Pump Exhaust Pipe

REMOVAL PROCEDURE




1. Remove the retaining screws from the front portion of the left front wheel well splash shield.
2. Lower the splash shield far enough to gain access to the AIR pump assembly.

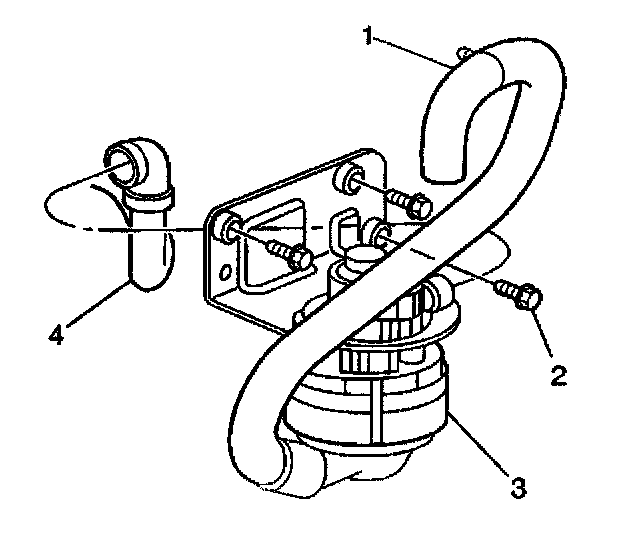

3. Loosen and lower the pinch clamp from the AIR exhaust pipe hose (4).
4. Disconnect the AIR exhaust pipe (4) from the AIR pump (3).

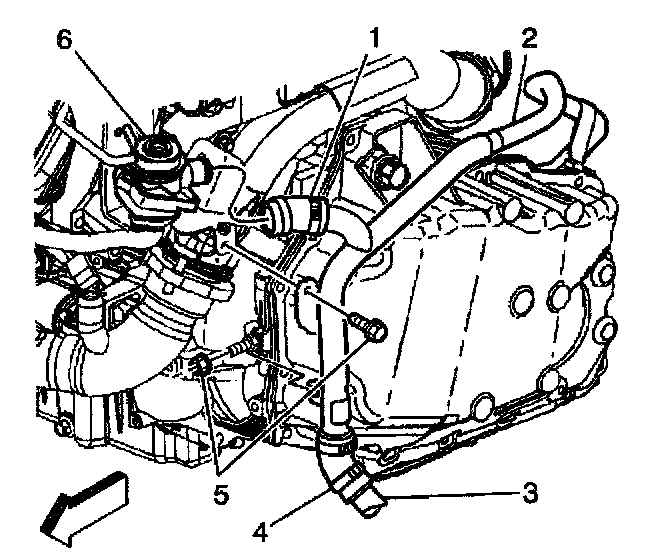

5. Loosen and lower the pinch clamp (4) from the AIR pump exhaust hose at the AIR system Y-pipe (2).
6. Disconnect the AIR pump exhaust pipe (3) from the AIR system Y-pipe (2).
7. Remove the AIR pump exhaust pipe (3).

INSTALLATION PROCEDURE




1. Position the AIR pump exhaust pipe between the AIR pump and the AIR system Y-pipe.

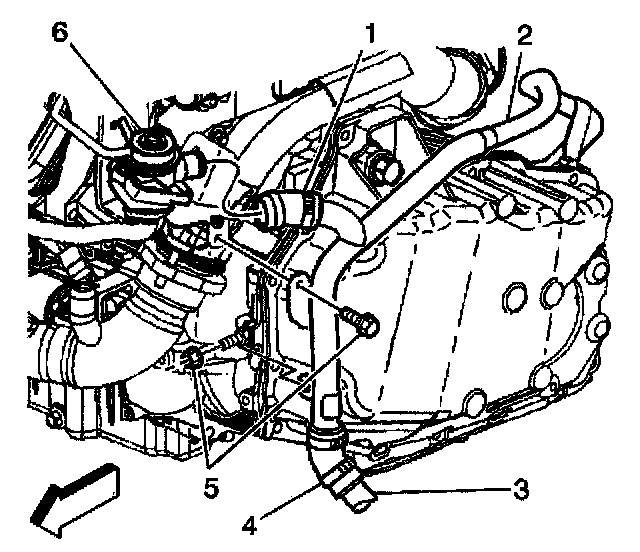

2. Connect the AIR pump exhaust pipe (3) to the AIR system Y-pipe (2).

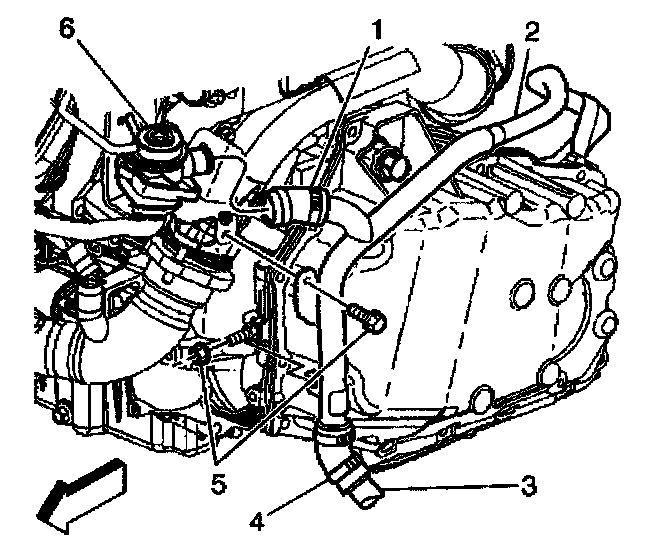

3. Place the pinch clamp (4) around the connection for the AIR pump exhaust hose at the AIR system Y-pipe inlet port.




4. Attach the AIR exhaust pipe (4) to the AIR pump outlet port.
5. Place the pinch clamp around the AIR pump outlet port and exhaust hose connection.




6. Raise the wheel well splash shield into position.
7. Re-install the screws retaining the wheel well splash shield.
